| Advanced Features |
- Maximum temperature: 1650 ºC
- Vacuum or Atmosphere controlled
- Induction coil traveling distance: Max. 300 mm
- Applications: melt purification, directional solidification, or single crystal growth for metallic material
|
| Power |
- 208-240 VAC, 3 phases, 50/60Hz
- 15 KW
|
| PLC Control |
- Touch Screen, User-Friendly
- Parameters: Induction coil and crucible position, Moving speed, Induction power by percentage, Temperature
|
| Working Temperature |
- Induction Heating with 15 KW power supply
- Maximum Working Temperature: 1650°C ( <1hr)
- Frequency: 30 - 80 KHz
- Digital Temperature control: +/- 2ºC
|

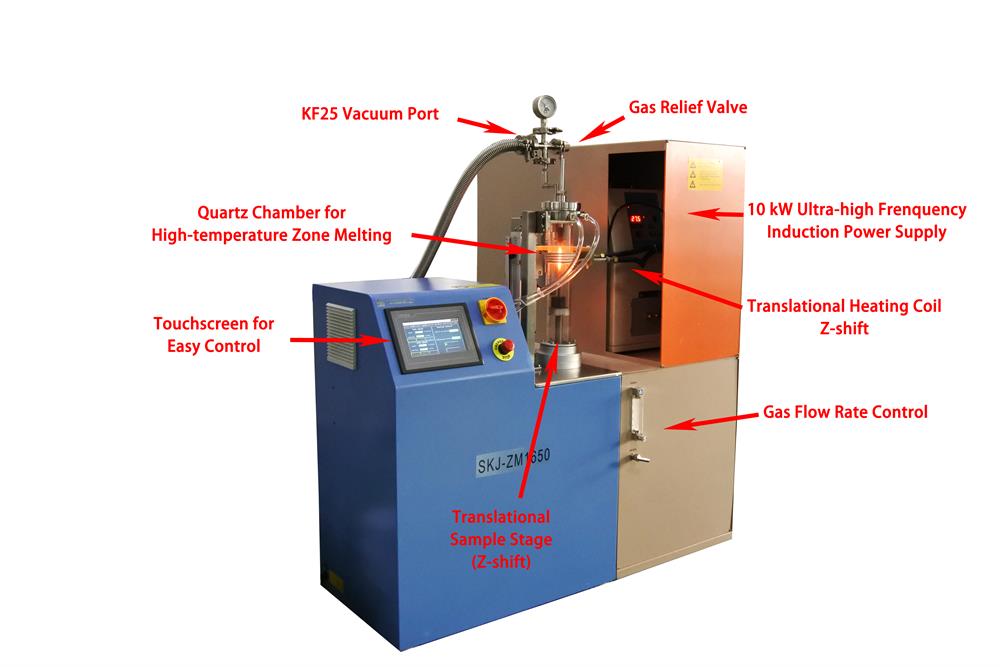

| Tube and Flange |
- 2" O.D. High purity quartz tube ( smaller tube is available upon request )
- Top stainless steel flange with KF 25 vacuum connection port, mechanical pressure gauge, over-pressure relief valve
- Bottom stainless steel flange with the gas delivery port and 1/4" Feedthrough for the thermal couple
- Graphite crucible 40 mm O.D x 60 mm H with the Boron Nitride Liner
- One thermal couple on the bottom of the crucible for temperature control
|
Coil Traveling Mechanism
|
- Maximum traveling distance of coil: 150 mm
- Servo motor controlled
- High speed: 0 - 200 mm/min
- Slow speed for single crystal growth: 1 - 50 mm/hr
- The speed mode can be customized with extra cost
|
Water Chiller
|
- Temperature range: 5 - 30°C
- Water Flow Rate: 58 L/min
- The KJ6200 water chiller is included
- Water Tank: 15 Liters made of stainless steel
- Note: It is recommended to use a coolant to get the best performance.
|
| Vacuum Pump (Not included) |
- 10E-2 torr via dual-stage mechanical vacuum pump (bottom right picture)
- 10E-5 torr via Turbopump (bottom left picture)
- The vacuum pump is optional. Please click here to choose a vacuum pump.
-

|
| Compliance |
- CE certified
- NRTL certification is available upon request at $5000 extra
|
| Warranty |
- One-Year limited warranty with lifetime support
|
Dimension
|
-
 600 mm L X 500 mm W X 800 mm H
|
| Net Weight |
|
| Shipping Weight & Dimensions |
- 1000 lbs, 53"x43"x59"
- 550 lbs, 44"x32"x71"
|
Installation Video
|
|
Application note
|
- In order to zone melting for metallic materials, you may make a solid rod sample from powder before zone melting via CIP as the link below
|
