SKZD-2 Automatic Slurry Feeder for any 8" -15" polishing machine - SKZD2
  • SKZD-2 Automatic Slurry Feeder for any 8" -15" polishing machine - SKZD2
  • SKZD-2 Automatic Slurry Feeder for any 8" -15" polishing machine - SKZD2
  • SKZD-2 Automatic Slurry Feeder for any 8" -15" polishing machine - SKZD2
SKZD-2 Automatic Slurry Feeder for any 8" -15" polishing machine - SKZD2

SKZD-2 Automatic Slurry Feeder for any 8" -15" polishing machine - SKZD2

SKU: skzd2

Price: RFQ

Description

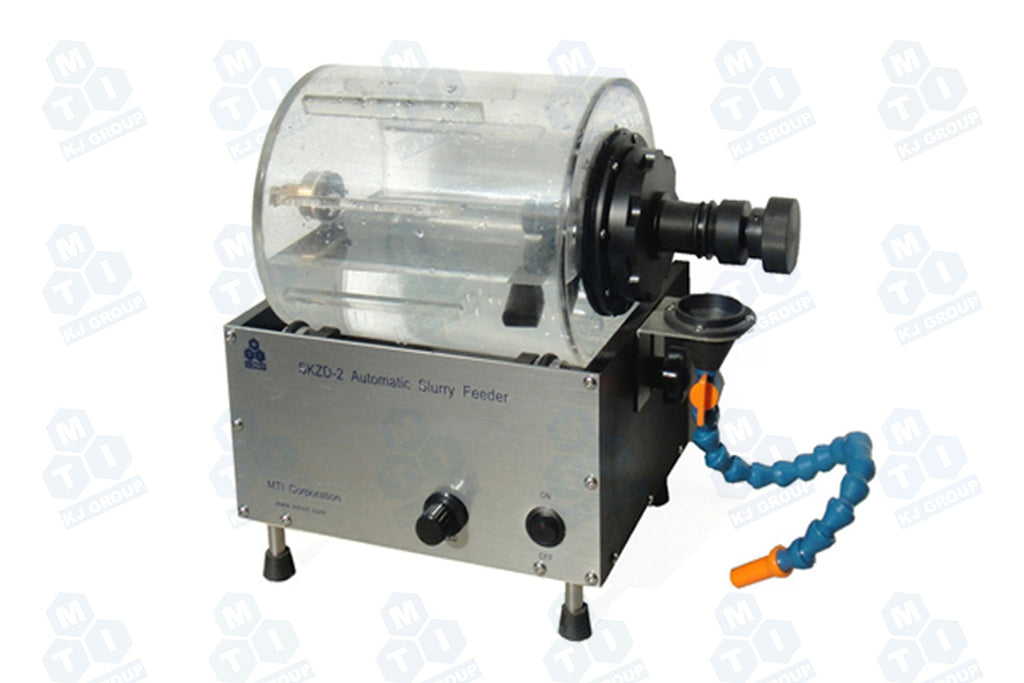

SKZD-2 slurry feeder is designed for both Unipol-802 and Unipol 1502 polishing machines. Also, it can be used for any small lapping and polishing machine to achieve abrasive and polishing slurry feeding automatically.

Specifications:


Features
  • Feeding rate is adjustable via a precision valve and rotating speed
  • The plastic rolling container can take the volume of slurry up to 1.0 Gallon (~3.8L) for long time polishing
  • Can feed any abrasive or polishing slurry with particle size < 40 microns
Working Voltage AC 110V or AC 208~240V single-phase selectable
Rotation Speed 8~20 RPM

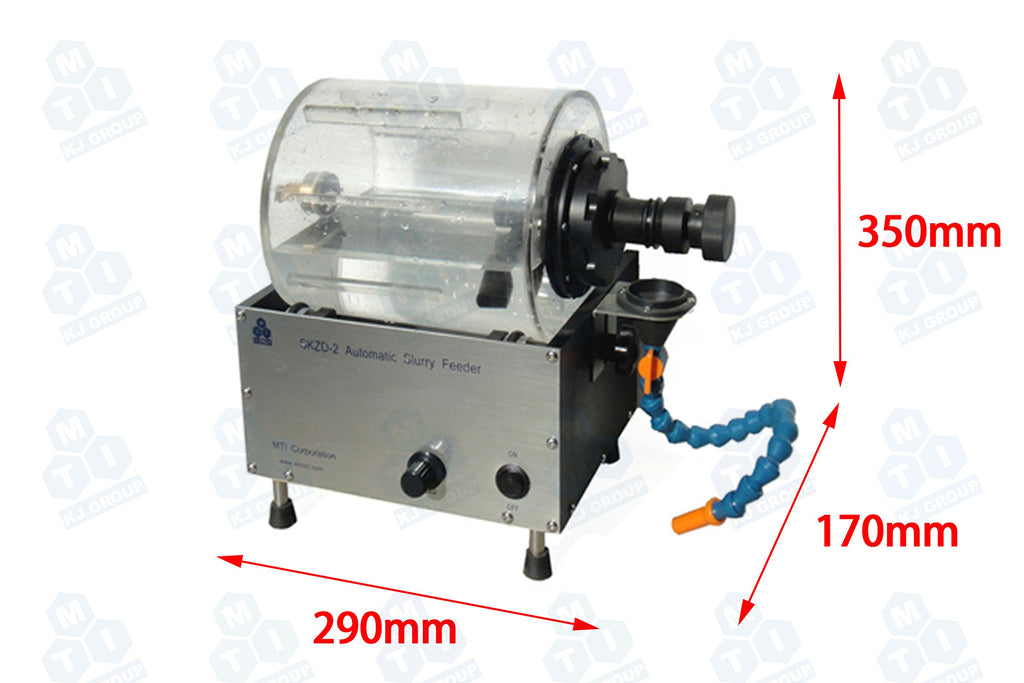

Dimensions of the control box and rolling container together L300mm × D200mm × H260mm(Details please refer to the first picture below)
Dimensions of the control box L300mm × D200mm × H120mm(Details please refer to the first picture below)
Dimensions of the rolling container Ø165mm × L190mm (Details please refer to the second picture below)
Dimensions of shipment 18" x 14" x 15"
Weight of shipment 21 lbs
Application Notes
  • Mixing abrasive ( < 40 microns ) with D.I. water or lubricant, and rotating 10 minutes before opening the valve to feed slurry at the fastest speed.
  • If your abrasive powder size > 40 microns, we will enlarge feeding port diameter upon request
  • A spare 1 gallon rolling slurry container is available at $495/ea

,

Model Description
 		Number  Price pic
SKZD-Container
 		Spare 1-gallon rolling slurry container Optional $495/ea
SKZD-Air vent Pre-installed Air vent Optional $9.95/ea
