Diamond Wire Curve Cut Machine with PC Control - STX-50QX
  • Diamond Wire Curve Cut Machine with PC Control - STX-50QX
  • Diamond Wire Curve Cut Machine with PC Control - STX-50QX
  • Diamond Wire Curve Cut Machine with PC Control - STX-50QX
  • Diamond Wire Curve Cut Machine with PC Control - STX-50QX
Diamond Wire Curve Cut Machine with PC Control - STX-50QX

Diamond Wire Curve Cut Machine with PC Control - STX-50QX

SKU: stx-50qx

Price: RFQ

Specifications

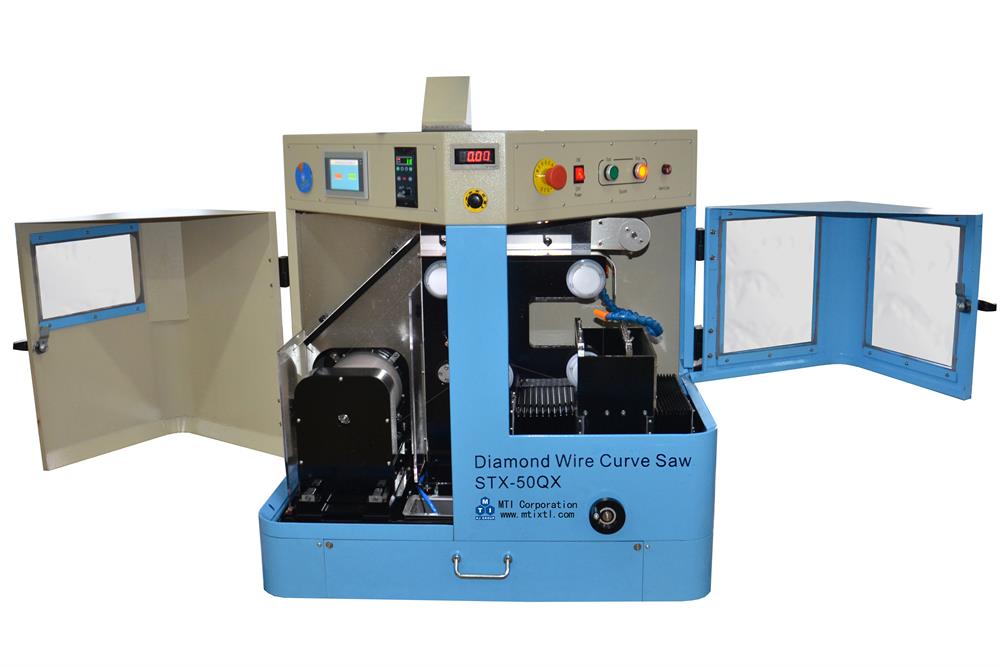

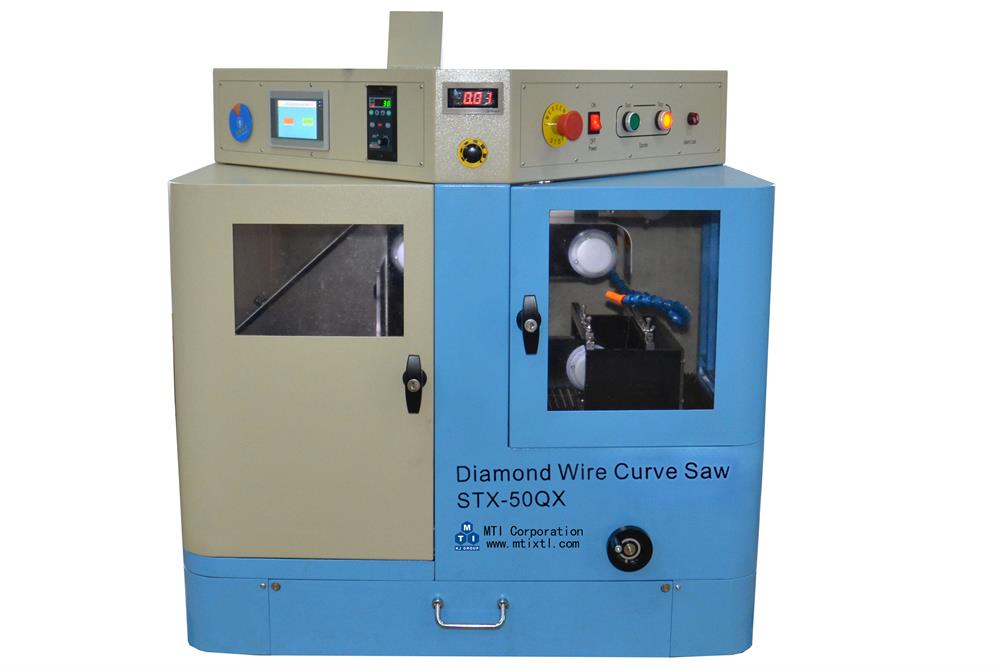

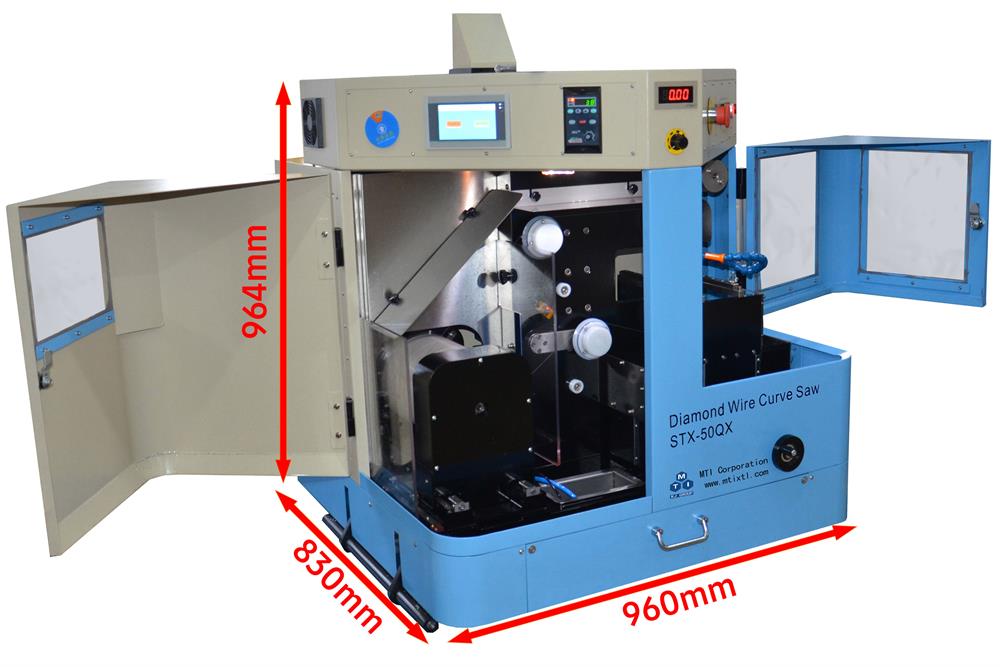

 STX-50QX is a diamond wire curve cutting machine, which is designed for cutting irregular shapes samples of non-conductive materials, such as ceramics, and polymer composite. The machine is controlled by the included PC and software. As long as inputting a 2D drawing, it will cut the sample automatically. SPECIFICATIONS: Power AC220V+/- 10%, 50/60Hz 500W AC110V version is available via a 1000W transformer Cutting Parameters X-axis slide travel: 0 - 100mm Y-axis slide travel: 0 - 150mm Max. cutting depth: 50 mm Travel resolution: 0.01mm X / Y axis travel speed: 0.06-6mm/min Diamond wire moving speed: 15m/s max. Sample holding platform: 140mm x 275mm Max. ample size to cut: 100mm x 150mm x 50mm Control PC and Software Dedicated with pre-installed software The engineering drawing of the sample can be made via the software on the PC Cutting parameters can be set up in the PC, and push button to operate automatically The materials for cutting The machine can cut almost every type of material as long as its hardness is less than diamond Especially good at cutting non-conductive material, which EDM can not be cut It also can cut metallic material at low speed than EDM Can cut any curve and straight line Compliance CE certified NRTL or CSA certification is available upon request at the extra cost Application Note Different material requires different cutting parameters It is the customer's responsibility to find the best cutting parameter. Diamond wire is consumable. Usually, service life is less than 30 hours at 1- 2 mm/minute cutting speed. Please prepare enough spare diamond wires Online training is available upon request at a reasonable cost

 Power
  • AC220V+/- 10%, 50/60Hz
  • 500W
  • AC110V version is available via a 1000W transformer
Cutting Parameters
  • X-axis slide travel: 0 - 100mm
  • Y-axis slide travel: 0 - 150mm
  • Max. cutting depth: 50 mm
  • Travel resolution: 0.01mm
  • X / Y axis travel speed: 0.06-6mm/min
  • Diamond wire moving speed: 15m/s max.
  • Sample holding platform: 140mm x 275mm
  • Max. ample size to cut: 100mm x 150mm x 50mm
Control PC and
Software
  • Dedicated with pre-installed software
  • The engineering drawing of the sample can be made via the software on the PC
  • Cutting parameters can be set up in the PC, and push button to operate automatically
The materials for cutting
  • The machine can cut almost every type of material as long as its hardness is less than diamond
  • Especially good at cutting non-conductive material, which EDM can not be cut
  • It also can cut metallic material at low speed than EDM
  • Can cut any curve and straight line
Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost
Application Note
  • Different material requires different cutting parameters
  • It is the customer's responsibility to find the best cutting parameter.
  • Diamond wire is consumable. Usually, service life is less than 30 hours at 1- 2 mm/minute cutting speed. Please prepare enough spare diamond wires
  • Online training is available upon request at a reasonable cost
