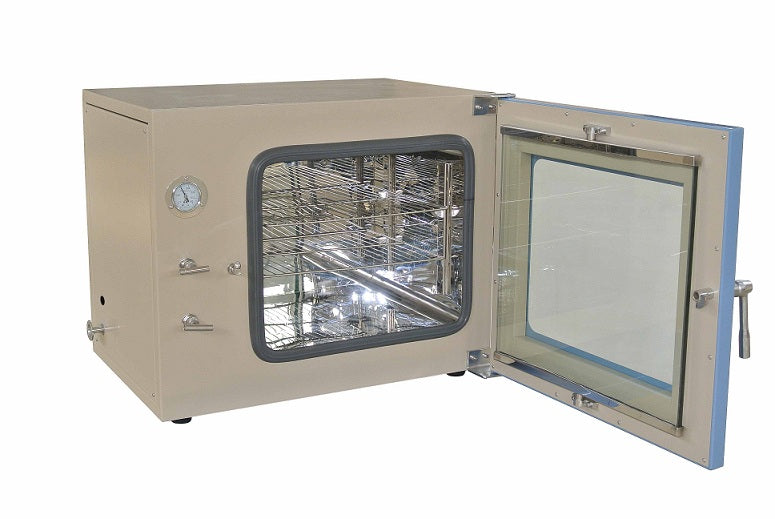

53L Stainless Steel Vacuum Chamber for Sample Storage (16x13x14") - SVC6050

SVC-6050 is a stainless steel vacuum chamber for storing various materials and microelectronic samples that are sensitive to air. A vacuum gauge is built in for easy monitoring of the vacuum level.

SPECIFICATIONS

Features	53 liter 304 stainless steel chamber ( 16x13x14" )  provides a vacuum environment for degassing, plastics curing, chemical processing, moisture removal, and a host of other operations Reach vacuums to  < 50 m-torr by   Heavy Duty Double Stage Rotary Vane Vacuum Pump  Double-wall stainless steel construction provides durability and safely stores corrosive the chemicals and less leaking rate  Dual needle valves allow the simple, controlled application of negative pressure and safe bleeding KFD25 standard vacuum port to connect a vacuum pump quickly One electric strip built-in chamber allows the use of electricity inside the chamber.

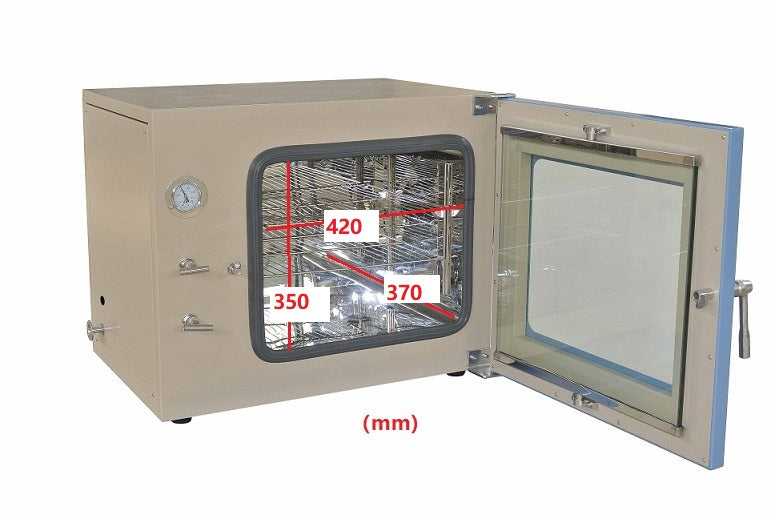

Chamber Structure	Made of polished 304 Stainless steel sheet Inside: 16x13x14" (L420×W370×H350, mm ) 53-liter capacity  Two shelves are included and removable High-strength glass as the front door for easy observation
Vacuum & Gas Ports	One KFD25 Adaptor is built in the chamber ( click picture left to see ) for connecting to the vacuum pump  One Power cable Port  with a dead plate for inserting some devices such as humidity detector, or  heating plate into the chamber  One pair of gas inlet & out port for gas flow Require a vacuum pump with KFD25 Bellow pipe, please click the pictures left to order separately
Pressure Gauge	Mechanical vacuum gauge built-in front panel with an indication Max. vacuum pressure -  10E-4 -torr by turbopump Max. vacuum pressure -0.1 Mpa   50 m-torr by a mechanical pump Max. positive pressure  0.15 Mp
Gas Ports & Valves	Two stainless steel valve is built-in front panel for controlling gas inlet and outlet electric PortTwo 1/4" Swagelok female gas ports are installed in the back to connect to gasses Inert gas can be filled inside the chamber and keep the gas flow
Electric Ports	One 3-pin vacuum-tight Aviation Power Connector is built inside the chamber, which allows the use of some electric devices inside the vacuum chamber  Please order option 3 Pin Aviation Power Connector with cable for supplying power to the inside of the chamber. Please click the picture to order option 4 Pin Aviation Power Capacity of Current: 5A max on 110-240V / 20A max on 12V,  Dimension: 13 /18mm x 69mm

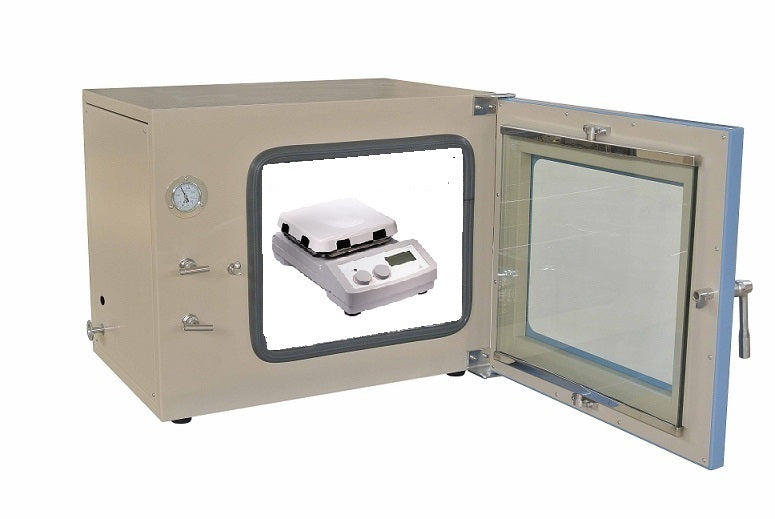

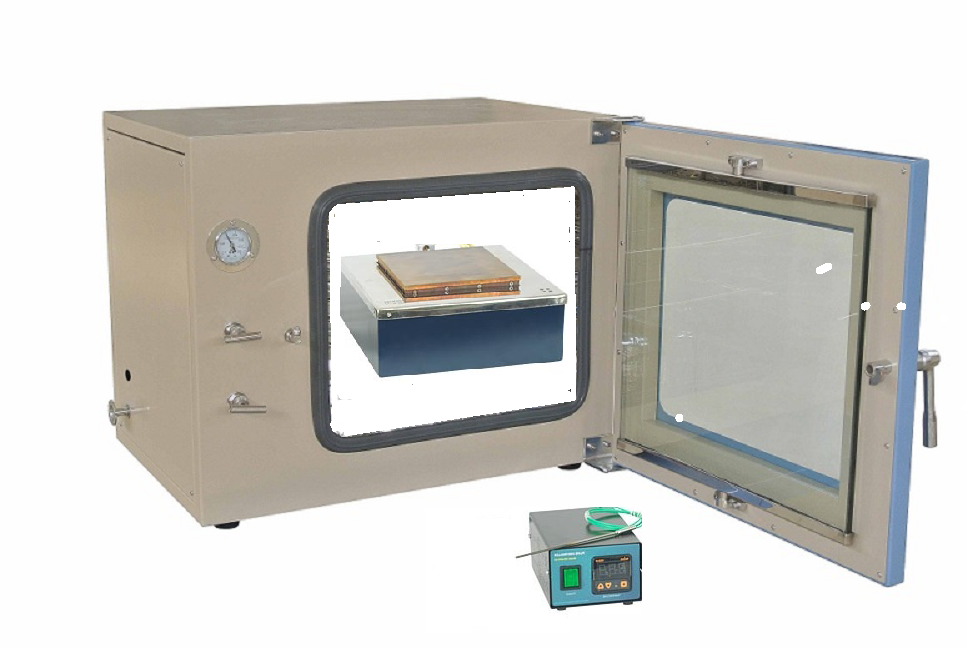

Option of Vacuum Hot-plate	You may modify the chamber into a vacuum hot plate with a stirring function Please click the picture below to order a hot plate, we will help you make a connection
