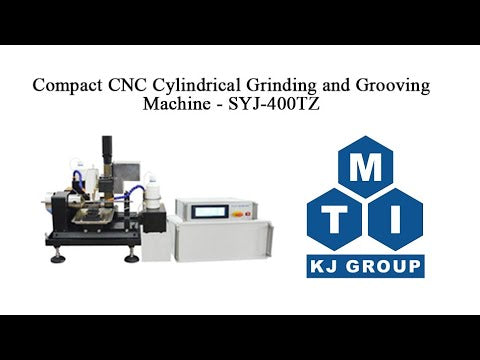

Compact CNC Cylindrical Grinding and Grooving Machine - SYJ-400TZ
  • Compact CNC Cylindrical Grinding and Grooving Machine - SYJ-400TZ
  • Compact CNC Cylindrical Grinding and Grooving Machine - SYJ-400TZ
Compact CNC Cylindrical Grinding and Grooving Machine - SYJ-400TZ

Compact CNC Cylindrical Grinding and Grooving Machine - SYJ-400TZ

SKU: syj-400tz

Price: RFQ

Specifications

 SYJ-400TZ is a cylindrical grinding and grooving machine, designed for grinding small ceramic or metallic rod. It can be controlled by a remote control box to set up parameters for grinding and cutting requirements. SPECIFICATIONS Voltage AC 220V (AC 110V 50/60Hz is available with ordering a 500W transformer ) Effective Range Main shaft speed: 100 - 3,000 rpm X-axis travel distance: 160 mm Z-axis travel distance: 100 mm A-axis rotation degree: 360° A-axis rotation tolerance: 360±0.5° Stepper Motor Accuracy 0.01mm position accuracy Blade Blade diameter: 150±10 mm Blade bore diameter: 12.7 mm Water Cooling Assemblies of water jetting, draining, and splashing protection are included The optional ECO-430 Coolant Circulating Tank is NOT included, please click the link to order if needed Certification CE Certified. With an additional certification fee, MTI can arrange NRTL to perform UL/CSA inspection and label the machine per the customer's request.

Voltage AC 220V (AC 110V 50/60Hz is available with ordering a 500W transformer)
Effective Range
  • Main shaft speed: 100 - 3,000 rpm
  • X-axis travel distance: 160 mm
  • Z-axis travel distance: 100 mm
  • A-axis rotation degree: 360°
  • A-axis rotation tolerance: 360±0.5°
Stepper Motor Accuracy 0.01mm position accuracy

Blade
  • Blade diameter: 150±10 mm
  • Blade bore diameter: 12.7 mm
Water Cooling
  • Assemblies of water jetting, draining, and splashing protection are included
  • The optional ECO-430 Coolant Circulating Tank is NOT included, please click the link to order if needed
Certification CE Certified. With an additional certification fee, MTI can arrange NRTL to perform UL/CSA inspection and label the machine per the customer's request.
