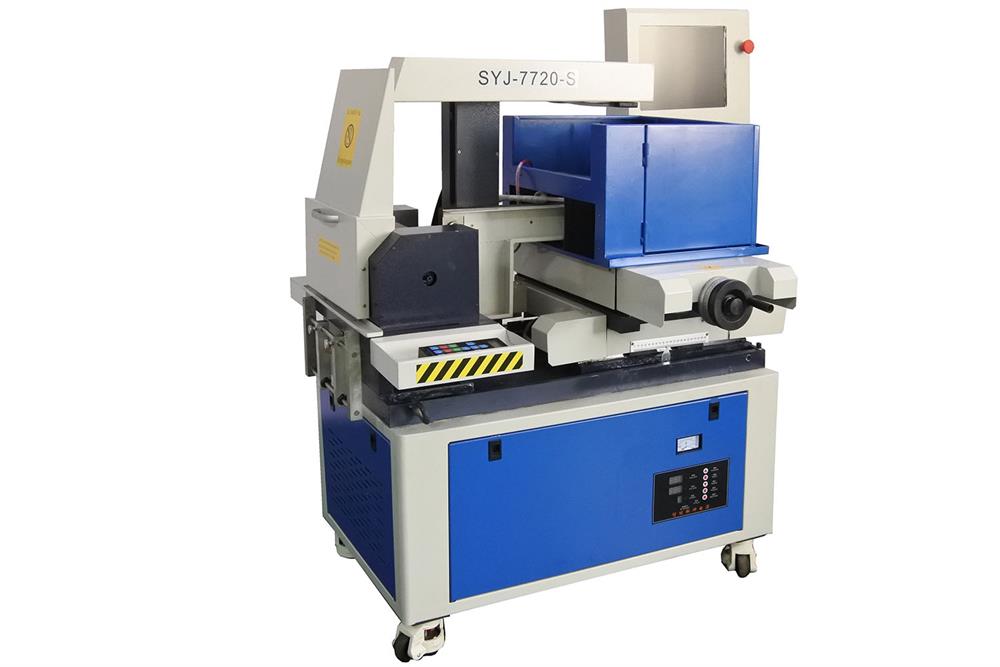

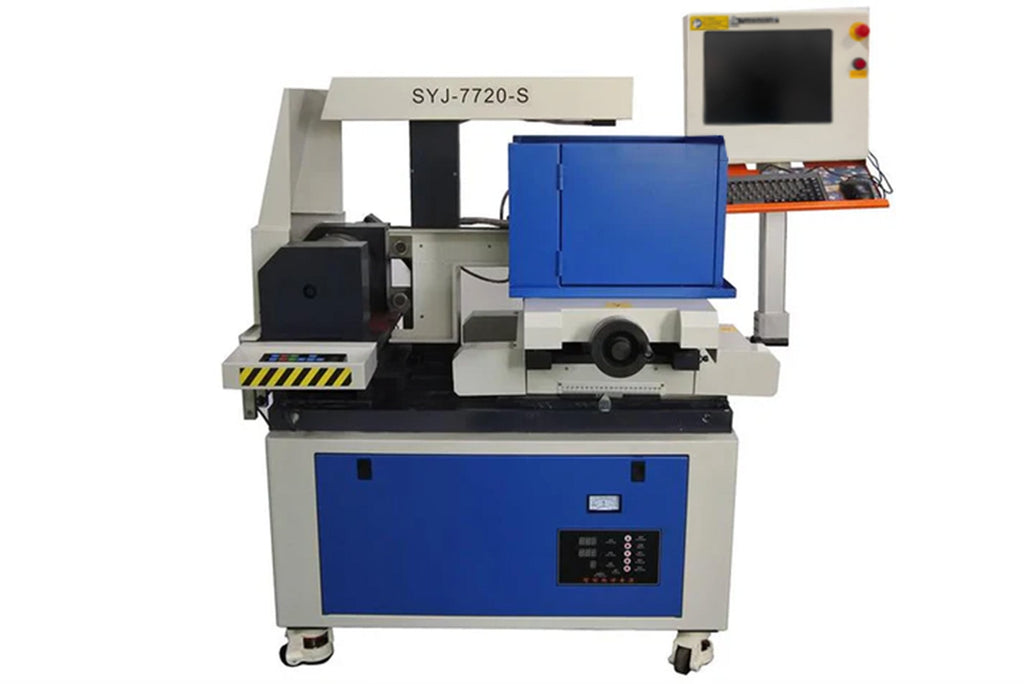

Small High Speed Wire Cut EDM Machine with PC Control - SYJ-7720-S
  • Small High Speed Wire Cut EDM Machine with PC Control - SYJ-7720-S
  • Small High Speed Wire Cut EDM Machine with PC Control - SYJ-7720-S
  • Small High Speed Wire Cut EDM Machine with PC Control - SYJ-7720-S
  • Small High Speed Wire Cut EDM Machine with PC Control - SYJ-7720-S
Small High Speed Wire Cut EDM Machine with PC Control - SYJ-7720-S

Small High Speed Wire Cut EDM Machine with PC Control - SYJ-7720-S

SKU: syj-7720-s

Price: RFQ

Specifications

 SYJ-7720-S is a small EDM wire-cutting machine, specifically designed for laboratory use. High cutting precision Programmable cutting procedures, enabling the creation of intricate shapes Capable of cutting any conductive material, regardless of its hardness SPECIFICATIONS: Working Table Size 270×420mm Stroke (X/Y) (L × W) 250×200mm Max. Z-Axis Stroke 300mm Control Panel Built-in via PC included Cutting Roughness ≤2.5 Max. Cutting Speed 100mm²/min Optimum Roughness mm ≤2.5 (Medium speed ≤ 1.0) Dia. of Molybdenum Wire mm0.1-0.3 (0.18 is recommended) One roll of 0.18 mm Dia. moly wire is included Molybdenum Wire Moving Speed 11.5 m/s Dielectric Fluid One container of dielectric slurry with a water pump is included. Please dilute it per the instructions. Process Accuracy 0.01-0.015 mm Feeding Pulse Equivalent mm 0.001 Power Supply 208 - 240VAC, single phase, 50/60Hz Power consumption: < 2 kW. The AC110V version is available via a 3000W transformer Dimension 1200 L x 900 W x 1500 H  ( mm) Safety Note This EDM contains moving parts (sample stage and wire spooler) and live parts under high-frequency low voltage (wire holder) exposed to the outside during normal operation. MTI provides limited protection to ensure that the machine will work properly. However, the end-user must be responsible for performing the risk assessment and selecting suitable guards for the workplace to prevent any person or object from accessing the working area improperly. Here is an example of the safety guard.

Working Table Size  270×420mm
Stroke (X/Y) (L × W)  250×200mm
Max. Z-Axis Stroke  300mm
Control Panel  Built-in via PC included
Cutting Roughness  ≤2.5
Max. Cutting Speed  100mm²/min
Optimum Roughness  mm ≤2.5 (Medium speed ≤ 1.0)
Dia. of Molybdenum Wire mm0.1-0.3 (0.18 is recommended)
 One roll of 0.18 mm Dia. moly wire is included


Molybdenum Wire Moving Speed  11.5 m/s
Dielectric Fluid

  One container of dielectric slurry with a water pump is included. Please dilute it per the instructions.
Process Accuracy  0.01-0.015 mm
Feeding Pulse Equivalent   mm 0.001
Power Supply
  • 208 - 240VAC, single phase, 50/60Hz
  • Power consumption: < 2 kW.
  • The AC110V version is available via a 3000W transformer

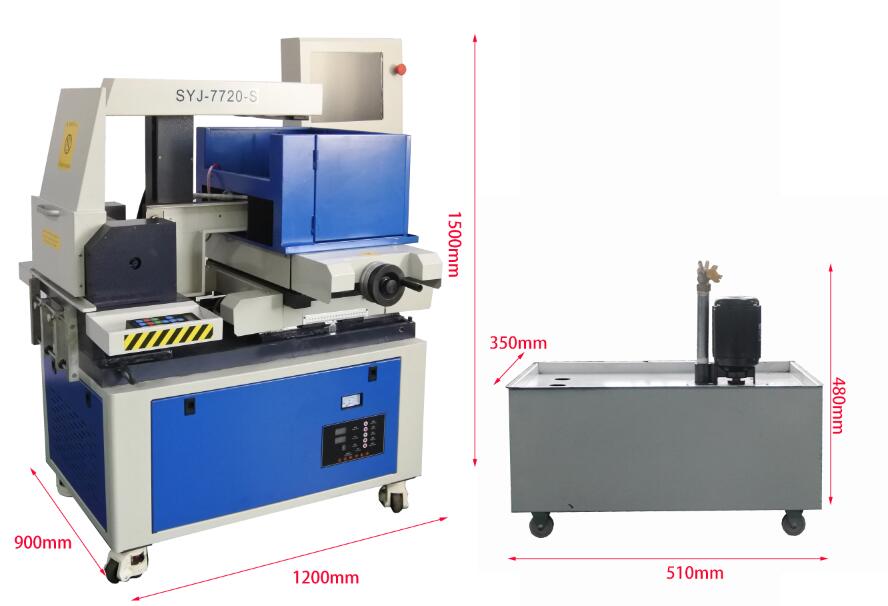

 Dimension 1200 L x 900 W x 1500 H  ( mm)
Safety Note This EDM contains moving parts (sample stage and wire spooler) and live parts under high-frequency low voltage (wire holder) exposed to the outside during normal operation. MTI provides limited protection to ensure that the machine will work properly. However, the end-user must be responsible for performing the risk assessment and selecting suitable guards for the workplace to prevent any person or object from accessing the working area improperly. Here is an example of the safety guard.
