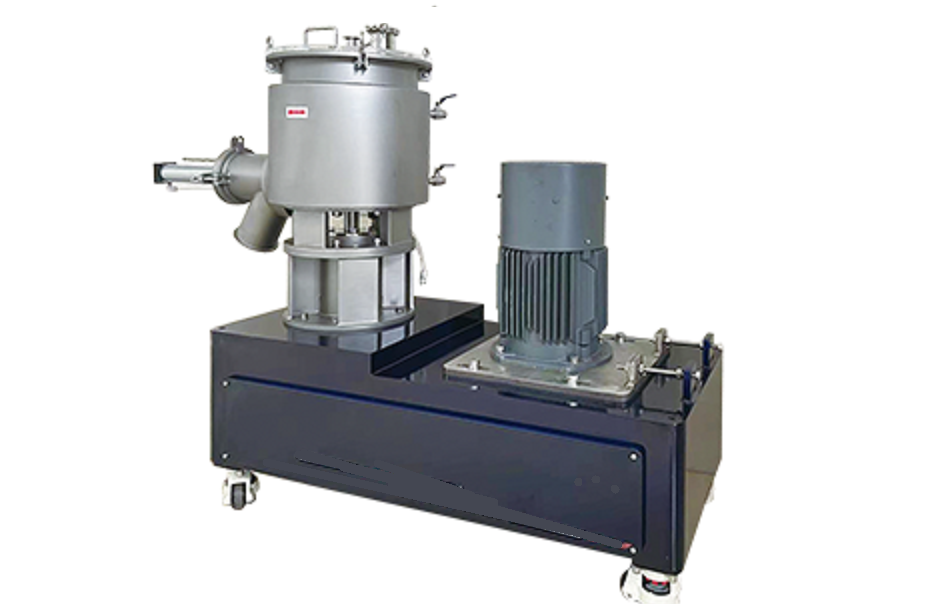

High Speed Vortex Blade Mixer With Heating or Cooling Jacket Optional 5L - 130 L Capacity - TSL-LL
  • High Speed Vortex Blade Mixer With Heating or Cooling Jacket Optional 5L - 130 L Capacity - TSL-LL
  • High Speed Vortex Blade Mixer With Heating or Cooling Jacket Optional 5L - 130 L Capacity - TSL-LL
High Speed Vortex Blade Mixer With Heating or Cooling Jacket Optional 5L - 130 L Capacity - TSL-LL

High Speed Vortex Blade Mixer With Heating or Cooling Jacket Optional 5L - 130 L Capacity - TSL-LL

SKU: tsl-ll

Price: RFQ

Specifications

 TSL-LL is a universal friction mixer for free-flowing raw materials for both dry powder and slurry. Circumferential speeds of 10 m/s to 30 m/s result in a marked mixing vortex, which can be used for powder dispersion, powder surface coating, and CO2 capture into cement. SPECIFICATIONS Power Supply AC 208V 50/60Hz, Single Phases The power plug is not included. Please click here to order the plug Mixing Vessel Materials: inside vessel SS 316 and Outside SS304 Build-in temperature sensor Water cooling / Oil heating jacket outside of the vessel Material charge port, gas inlet, or vacuum port are built-in on the top of the vessel Material discharge ports with valves driven by compressive air, are built at the bottom of the vessel Double-layer mixing blades Optional Capacity of Vessel and Power Four types of vessel capacities are available below 5 L (Φ200 mm x H200 mm ), Max. speed: 1450 RPM, Power: 2.2 KW 30L (Φ350 mm x H350 mm ), Max. speed: 1300 RPM, Power: 5.5 KW 70L (Φ350 mm x H350 mm ), Max. speed: 700 RPM, Power: 7.0 K W 130L (Φ550 mm x H550 mm ), Max. speed: 500 RPM, Power: 15 KW Optional Device The vacuum pump is available ( click Pic. 1 to order ) The temperature-controlled circulating water chiller is available ( Click Pic. 2 to order ) The temperature-controlled recirculating oil heater up to 300oC is available ( Click Pic. 3 to order) Pic. 1 Pic. 2 Pic. 3 Compliance NRTL certification is available upon request at an extra cost


Power Supply

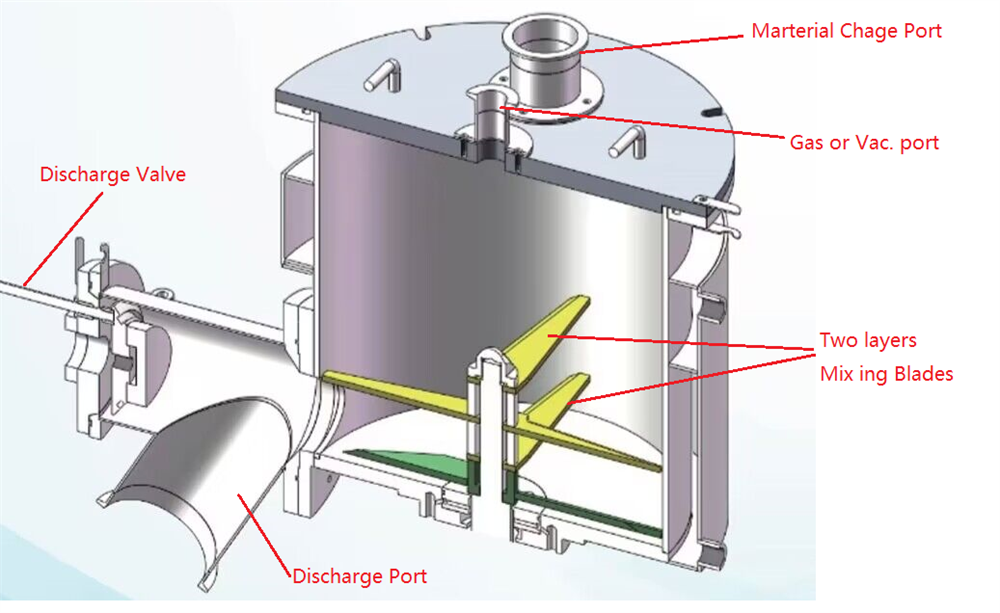

Mixing Vessel
  • Materials: inside vessel SS 316 and Outside SS304
  • Build-in temperature sensor
  • Water cooling / Oil heating jacket outside of the vessel
  • Material charge port, gas inlet, or vacuum port are built-in on the top of the vessel
  • Material discharge ports with valves driven by compressive air, are built at the bottom of the vessel
  • Double-layer mixing blades
Optional Capacity of Vessel
 and Power		 Four types of vessel capacities are available below
  • 5 L (Φ200 mm x H200 mm ), Max. speed: 1450 RPM, Power: 2.2 KW
  • 30L (Φ350 mm x H350 mm ), Max. speed: 1300 RPM, Power: 5.5 KW
  • 70L (Φ350 mm x H350 mm ), Max. speed: 700 RPM, Power: 7.0 K W
  • 130L (Φ550 mm x H550 mm ), Max. speed: 500 RPM, Power: 15 KW

Optional Device
  • The vacuum pump is available ( click Pic. 1 to order )
  • The temperature-controlled circulating water chiller is available ( Click Pic. 2 to order )
  • The temperature-controlled recirculating oil heater up to 300oC is available ( Click Pic. 3 to order)
Pic. 1 Pic. 2 Pic. 3
