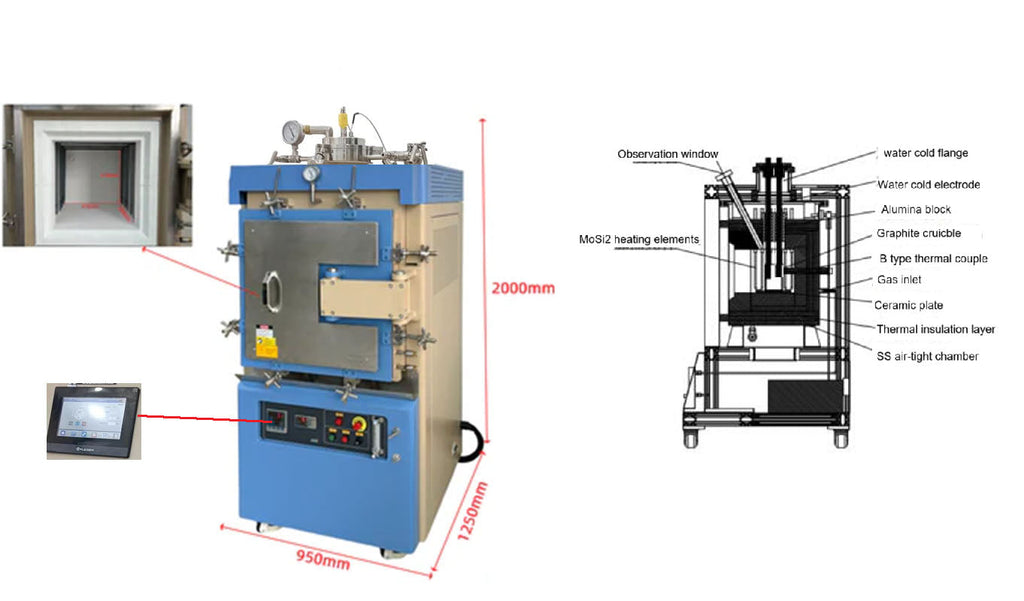

1600°C Electrolytic Furnace with 8"ID x 15"H Graphite Crucible - VEF1600L

Atmosphere controlled Furnace

• Chamber size 410 mm x 410 x 500 mm (about 16" × 16" × 20"), 80 Liter
• Atmosphere-controlled steel chamber for oxygen, inert gas, and vacuum conditions.
• MoSi2 heating elements
• Max. working temperature:  1600oC
• Programmable temperature controller with +/- 1oC accuracy.
• Power ：460VAC ( or 380V) +/- 10% ， three phase， 26KW Max.

Eletrolyte Electrodes

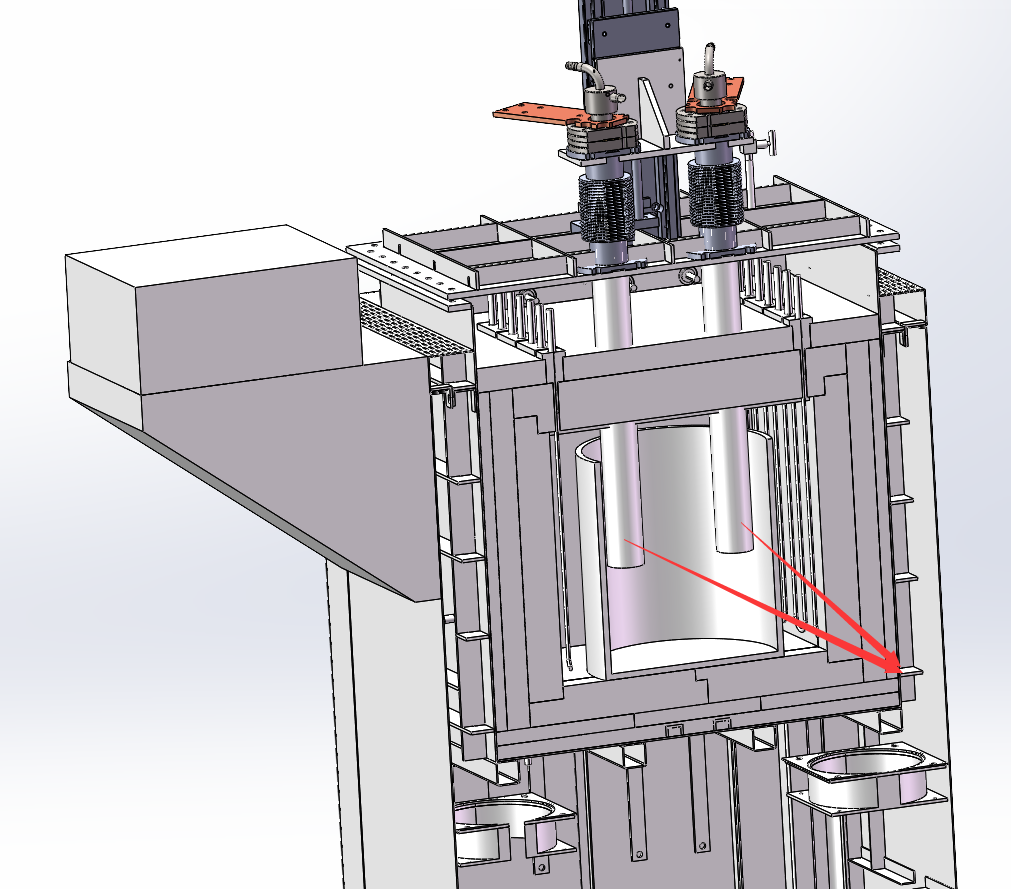

• Two water-cold electrodes with electric lifting machinery are installed on the top of the furnace with a 1000A max current rating.

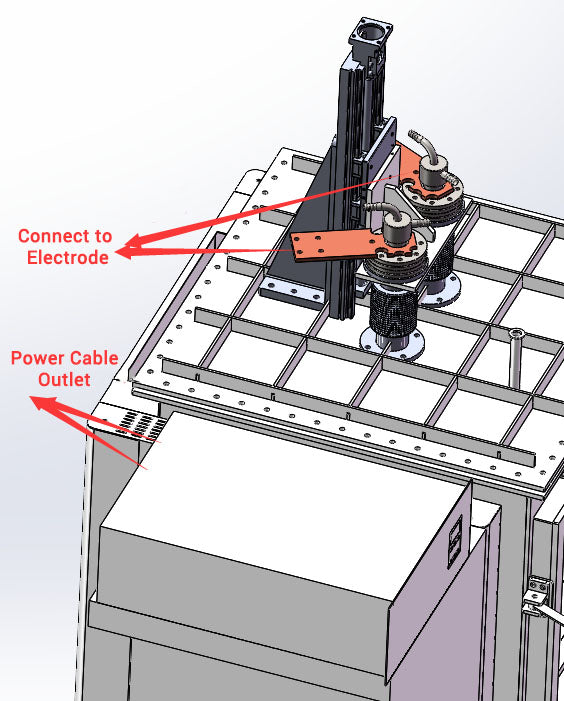

• Two 20 mm diameter electrodes consist of two parts: The Top is made of copper with a water cooling jacket, which will connect to the DC power supply, and the bottom is made of a solid graphite rod, which is inserted into crucble
• One recirculating water chiller with 16L/minute flow is included for cooling the electrodes

DC Power Supply

(optional)

• One digital DC power supply is optional
• Voltage:  0- 30VDC adjustable.
• Current:  0 - 2000A adjustable
• Power:
• Power: 460VAC ( or 380V) +/- 10%， three phase， 30 KW Max.

Compliace

• CE certification
• NRTL certification is available upon request at an extra cost

Utility requirement

• One vacuum pump is required as YTP-550-LD
• Power panel:  three phase 460CDV+/-10% with total power 60KW
