Description

OTF1200XSVTQ is a small quenching tube furnace with an air-tight sealed 2" quartz tube and 1200ºC max. working temperature. An electro-magnetic fixture is installed on the top flange which hangs up a sample or crucible in the center of the heating zone. The electro-magnetic will release the heated sample automatically, and drop it quickly into the tank with quenching oil. The quartz tube is inserted into the quench tank to ensure airtight quenching by flowing inert gas.

SPECIFICATIONS

Power

1.2 KW; 110VAC, 10 A or 208-240VAC, 6A, 50/60Hz

Working Temperature
  • Max. 1200ºC
  • Continuous: 1000ºC

Max. Heating Rate

<= 20ºC/min

Heating Zone Length
  • Heating Zone: 200mm (single zone)
  • Constant Heating Zone: 50mm (+/-1ºC)

Tube Size and Materials

Temperature Controller
  • 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
  • Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
  • Over-temperature protection and alarm allow for operation without attendant(s).
  • +/- 1ºC temperature accuracy.
  • You may upgrade the controller to Eurotherm 3000 with +/- 0.1ºC accuracy
Processing Tube

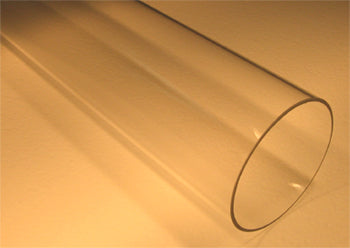

Quartz Tube: 50 ODx44 IDx1000 L, mm (2"Dx40" L) Quartz Tube for OTF Furnace -TQ50D1000
  • For fused quartz tube is included with dimensions of 50mm O.D x 44mm I.D x 1000mm L
  • One air-tight flange is installed on the top of the tube
  • The bottom tube is inserted into a stainless steel tank filled with oxygen-free silicone oil
Air Sealing Flange and Electromagnetic Fixture
  • One 2" water-cooling flange with pressure gauge and valves, as well as 1/4 gas inlet included (Pic. 1)
  •  One electromagnetic is built inside of the flange. (Pic. 2 )
  • One thin high-temperature alloy wire is connected with a steel disc on the top and hangs up a crucible or sample at the bottom. (Pic. 3)
  • When the user touches one button, the steel disc is released from the magnets, and then the sample is dropped into the quench tank for rapid cooling at a speed > 600C/ sec.(Pic. 4)

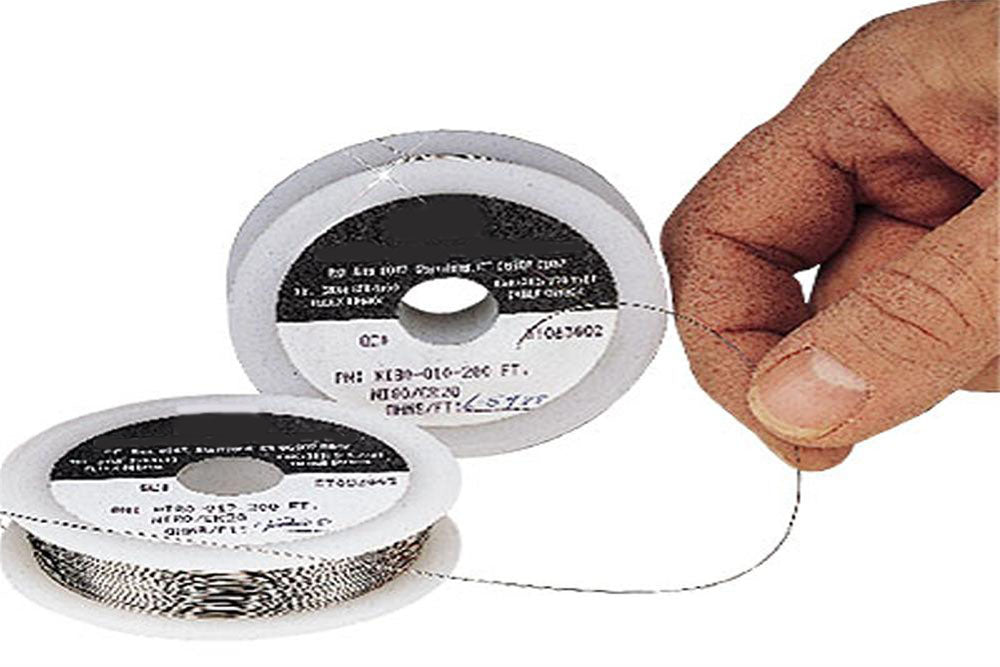

              Pic. 1 Pic. 2 Nickel-Chromium Alloy Pulling Cable ( 50 Feet L ) with Max. 1100C - P01CAB-HT150  Pic. 3
Water Chiller
Digital Temperature Controlled Recirculating Water Chiller with 16L / min Flow, 2.8K BTU/hr-KJ5000
  • One water chiller is included for cooling the flange ( click picture left to order )
  • Also, it can be used to cool quench oil at < 10oC to achieve faster quenching
  • Note: If your sample is not sensitive to oxygen or water, Ice water can be used as quenching media t achieve faster cooling

Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost
