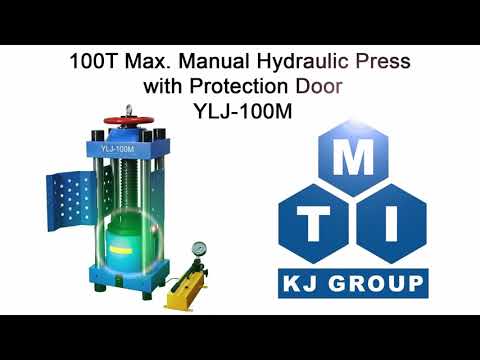

100T Max. Manual Hydraulic Press with Protection Door - YLJ-100M
  • 100T Max. Manual Hydraulic Press with Protection Door - YLJ-100M
  • 100T Max. Manual Hydraulic Press with Protection Door - YLJ-100M
  • 100T Max. Manual Hydraulic Press with Protection Door - YLJ-100M
  • 100T Max. Manual Hydraulic Press with Protection Door - YLJ-100M
100T Max. Manual Hydraulic Press with Protection Door - YLJ-100M

100T Max. Manual Hydraulic Press with Protection Door - YLJ-100M

SKU: ylj-100m

Price: RFQ

Specifications

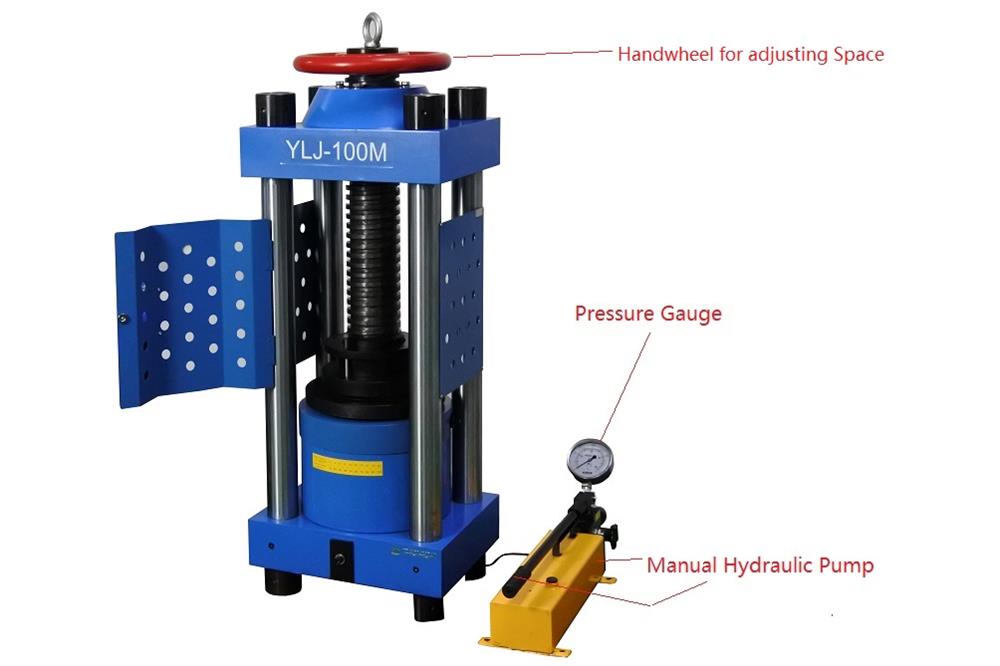

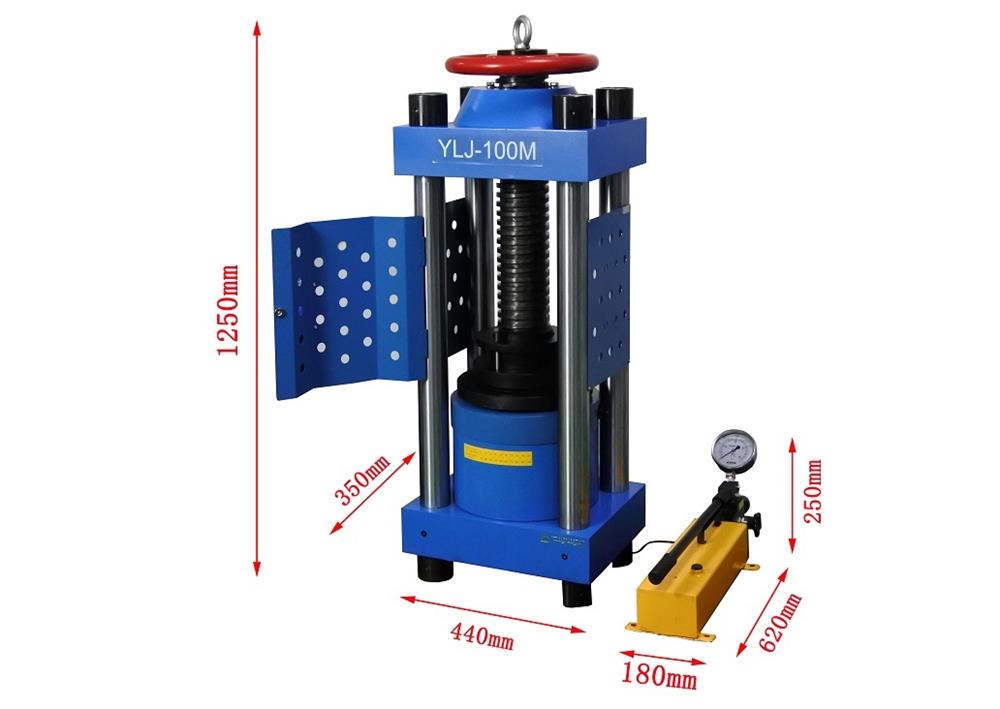

 YLJ-100M is a manual hydraulic pressing machine up to 100 metric tons for preparing a compound or ceramic samples at low cost SPECIFICATIONS: Features Max. 100 Metric Tons ( 980 KN) Separated manual hydraulic pump with pressure gauge for easy maintain Protection door is built-in for safe operation Bottom Hydraulic Cylinder Travel Distance 0 - 20 mm Range sensing switch to prevent travel distance beyond 20 mm Top Support Screw Adjustable Height 310 mm Application Notes Check the Oil Level Regularly. Add AW 46 Hydraulic Oil if the Oil Level is low Do not raise the bottom cylinder (piston) more than its maximum traveling distance (20 mm) Warning: Customers must always wear protective goggles during operation !!! Please shut the oil release valve and oil drain for transportation or long term idle Operating the pressor inside the glove box is not recommended Optional 32-Position Pressing Die Adapter The press is compatible with the optional 32-position pressing die adapter, which enables making 32 pallets at once for high-throughput operation. The adapter is NOT included in the standard package, please contact MTI to make a separate purchase. Please check out the video for more information. Compliance NRTL (UL or CSA) Certification is not required because no electricity involved Pellet Press Dies (optional) &CIP die Pressing dies with various diameters are available upon request at an extra cost Please click the pictures below to choose pressing dies


Features
  • Max. 100 Metric Tons ( 980 KN)
  • Separated manual hydraulic pump with pressure gauge for easy maintain
  • Protection door is built-in for safe operation
Bottom Hydraulic Cylinder Travel Distance
  • 0 - 20 mm
  • Range sensing switch to prevent travel distance beyond 20 mm
Top Support Screw Adjustable Height
  • 310 mm
Application Notes
  • Check the Oil Level Regularly. Add AW 46 Hydraulic Oil if the Oil Level is low
  • Do not raise the bottom cylinder (piston) more than its maximum traveling distance (20 mm)
  • Warning: Customers must always wear protective goggles during operation !!!
  • Please shut the oil release valve and oil drain for transportation or long term idle
  • Operating the pressor inside the glove box is not recommended

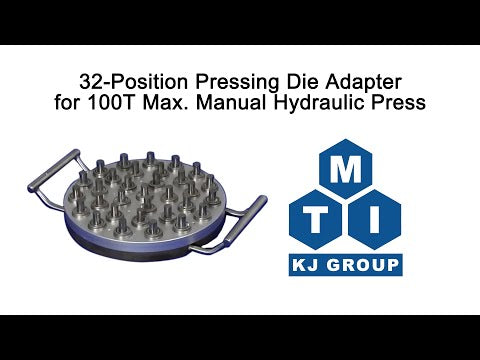

Optional 32-Position Pressing Die Adapter
  • The press is compatible with the optional 32-position pressing die adapter, which enables making 32 pallets at once for high-throughput operation.
  • The adapter is NOT included in the standard package, please contact MTI to make a separate purchase.
  • Please check out the video for more information.
Compliance
  • NRTL (UL or CSA) Certification is not required because no electricity involved
Pellet Press Dies (optional) &CIP die
