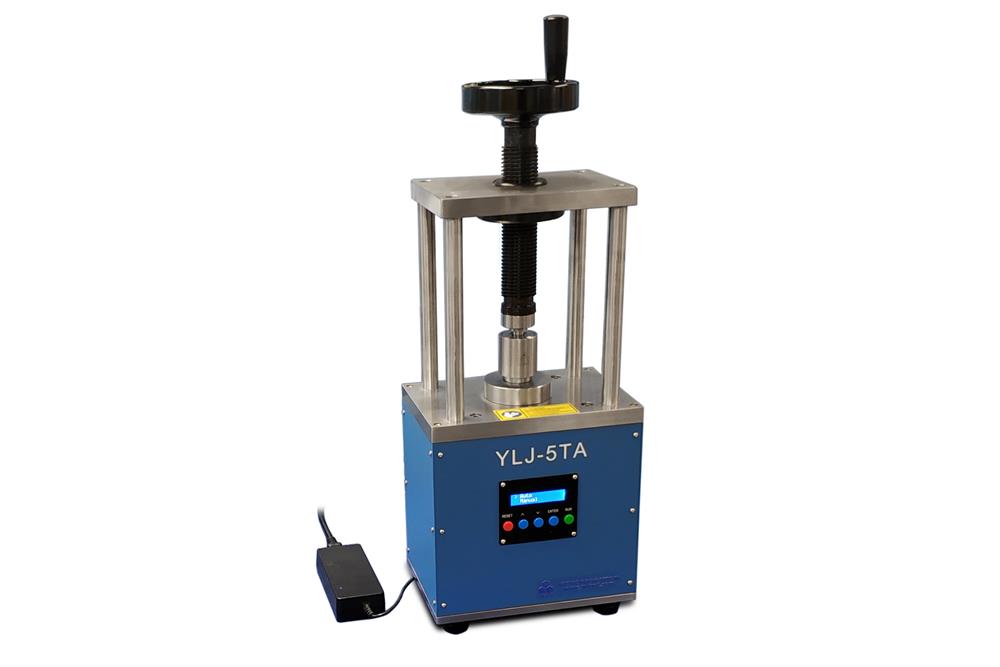

10T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ-10TA
  • 10T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ-10TA
  • 10T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ-10TA
  • 10T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ-10TA
  • 10T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ-10TA
  • 10T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ-10TA
10T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ-10TA

10T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ-10TA

SKU: ylj-10ta

Price: RFQ

Specifications

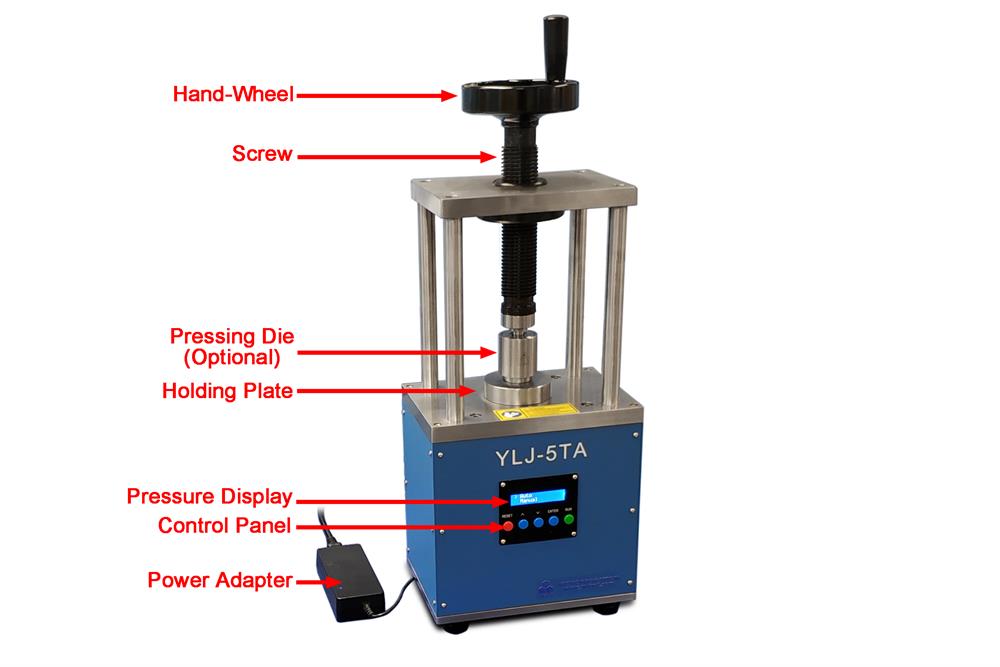

 YLJ-10TA is a compact electric compressive & oil-less press with a digital pressure gauge and load cell up to max. 10 metric tone force via a DC motor (10 metric Tons). It is designed for pressing small pellets in the glove box (Ar compatible) for ceramic research and solid-state battery. The compact press can be placed inside the glovebox via an antechamber. PC control software and PC connection are included for 2023 and newer models. SPECIFICATIONS: Power 24V DC input NRTL & CSA certified 110 - 240V AC to 24V DC 120W power adapter for universal use Pressure A built-in load cell with a digital display for pressure measurement and control Digital control panel for programmable pressure and dwell time Automatically keeps constant pressure during Pressure adjustment range: 0.5 -10 T Pressure accuracy: +/- 2 Kg dwell period Time setting: 1 - 999 minutes PC Control Software The PC port is built in for possible remote operation Software functionalities, which is available upon request at extra cost Pressure Monitoring. Data Logging/Exporting to Excel. Set up the pressure and pressing time. Start and stop the press. Optional: A laptop with pre-installed software is available upon request at an extra cost Structure Heavy-Duty Steel Platform Working space Stroke: 35 mm Width: 135 mm Compliance CE approval NRTL or CSA certification is available upon request at an extra cost. Note: NRTL certification is not necessary due to 24VDC safe device

Power
  • 24V DC input
  • NRTL & CSA certified 110 - 240V AC to 24V DC 120W power adapter for universal use

Pressure
  • A built-in load cell with a digital display for pressure measurement and control
  • Digital control panel for programmable pressure and dwell time
  • Automatically keeps constant pressure during
    • Pressure adjustment range: 0.5 -10 T
    • Pressure accuracy: +/- 2 Kg dwell period
    • Time setting: 1 - 999 minutes

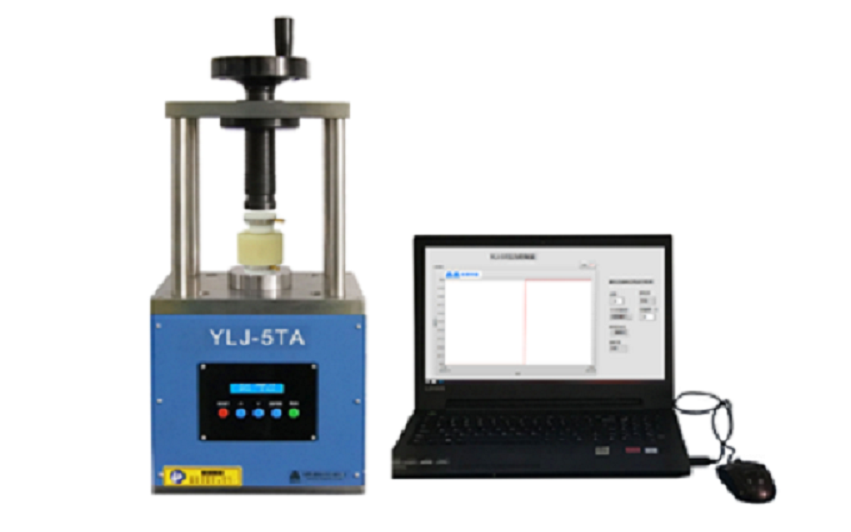

PC Control Software
  • The PC port is built in for possible remote operation
  • Software functionalities, which is available upon request at extra cost
    • Pressure Monitoring.
    • Data Logging/Exporting to Excel.
    • Set up the pressure and pressing time.
    • Start and stop the press.
  • Optional: A laptop with pre-installed software is available upon request at an extra cost
Structure Heavy-Duty Steel Platform

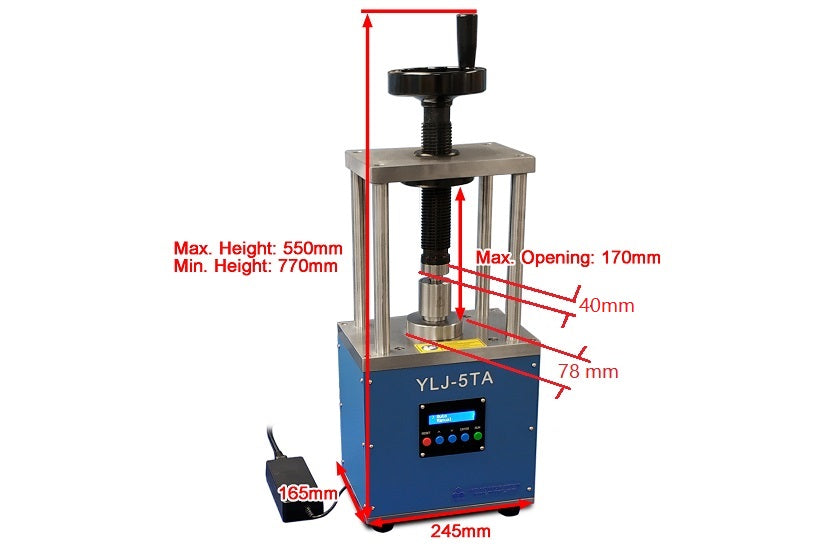

Working space Stroke: 35 mm
Width: 135 mm
Compliance
  • CE approval
  • NRTL or CSA certification is available upon request at an extra cost.
  • Note: NRTL certification is not necessary due to 24VDC safe device
