200T Electric Hydraulic Press with Digital Display - YLJ-200E

Name: 200T Electric Hydraulic Press with Digital Display - YLJ-200E
Brand: MTI
SKU: YLJ200E
Availability: OutOfStock

SKU: ylj-200e

Price: RFQ

Specifications

YLJ-200E is an electric hydraulic pressing machine up to 200 metric tons for preparing compound or ceramic samples faster and easier. YLJ-100E has a built-in electric hydraulic pump which is driven by an electric oil pump with a digital pressure display. It is an excellent tool for material/ceramic/chemistry laboratories to make a larger pellet sample. SPECIFICATIONS: Pressure Max. 200 Metric Tons Digital pressure display (unit KN) 10 - 200T adjusted by manual ON/OFF valve Display real pressure on the sample based on die size Pressure accuracy: +/- 1% by adjusting hydraulic oil valve Max. force 2030 KN, e.g 205T release protection The mini printer is built-in to calculate the pressure per sample area Pressure Controller Digital control panel to set up sample diameter and display real force. The mini printer is built to displace real pressure Electric Hydraulic Pump Standard: 220V±10% AC (single-phase, 50/60hz) 750W AC motor Optional: 110V to 220V transformer for using under 110V Bottom Hydraulic Cylinder Travel Distance 0 - 20 mm Range sensing switch to prevent travel distance beyond 20 mm Top Support Screw Adjustable Height 310 mm Working Space Max opening: 250 L x 300 W x 300 H, mm Diameter of top & bottom platform: 300 mm Press Cover A metal door with a magnetic door latch Note: For safety, please close the door before operating Application Notes Check the Oil Level Regularly. Add AW 46 Hydraulic Oil if the Oil Level is low Do not raise the bottom cylinder (piston) more than it's maximum traveling distance (20 mm) Warning: Customers must always wear protective goggles during operation !!! Please shut the oil release valve and oil drain for transportation or long term idle Operating the pressor inside the glove box is not recommended Compliance CE Certified NRTL (UL or CSA) Certification is available upon request at an extra cost ( Isolation transformer will add on) Pellet Press Dies (optional) &CIP die Pressing dies with various diameters are available upon request at an extra cost Please click pictures below to choose dry pressing die

Pressure	Max. 200 Metric Tons Digital pressure display (unit KN) 10 - 200T adjusted by manual ON/OFF valve Display real pressure on the sample based on die size Pressure accuracy: +/- 1% by adjusting hydraulic oil valve Max. force 2030 KN, e.g 205T release protection The mini printer is built-in to calculate the pressure per sample area

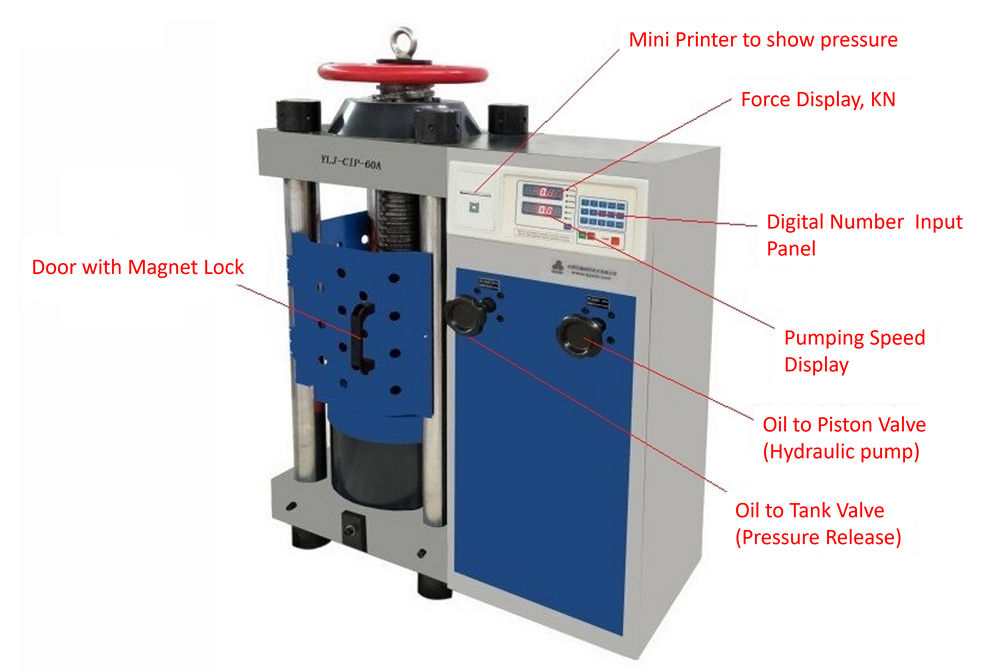

Pressure Controller	Digital control panel to set up sample diameter and display real force. The mini printer is built to displace real pressure
Electric Hydraulic Pump	Standard: 220V±10% AC (single-phase, 50/60hz) 750W AC motor Optional: 110V to 220V transformer for using under 110V
Bottom Hydraulic Cylinder Travel Distance	0 - 20 mm Range sensing switch to prevent travel distance beyond 20 mm
Top Support Screw Adjustable Height	310 mm

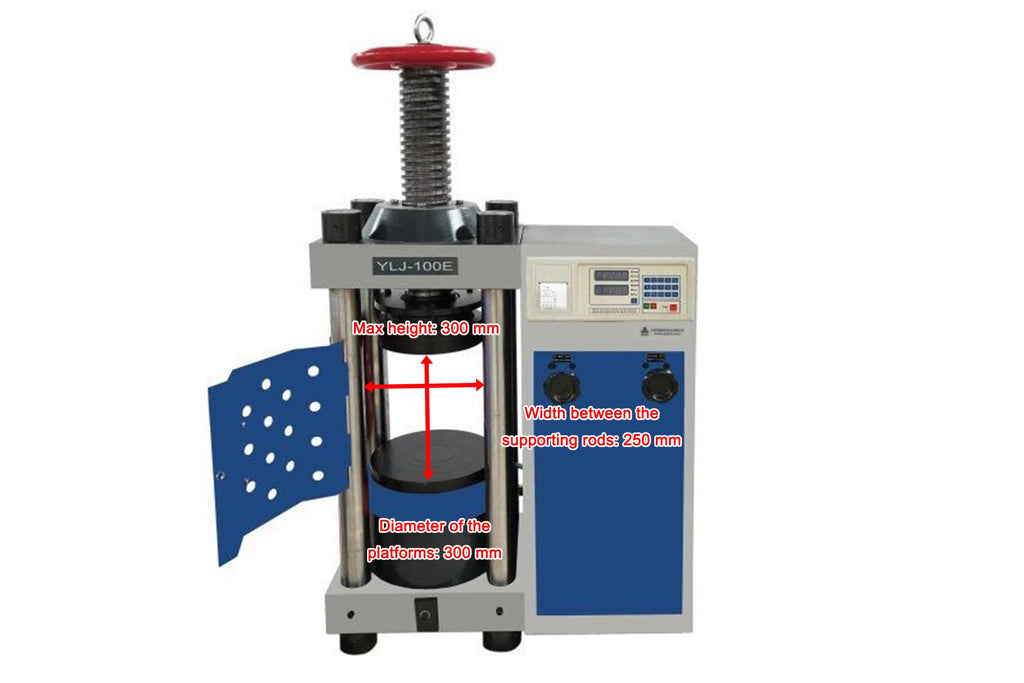

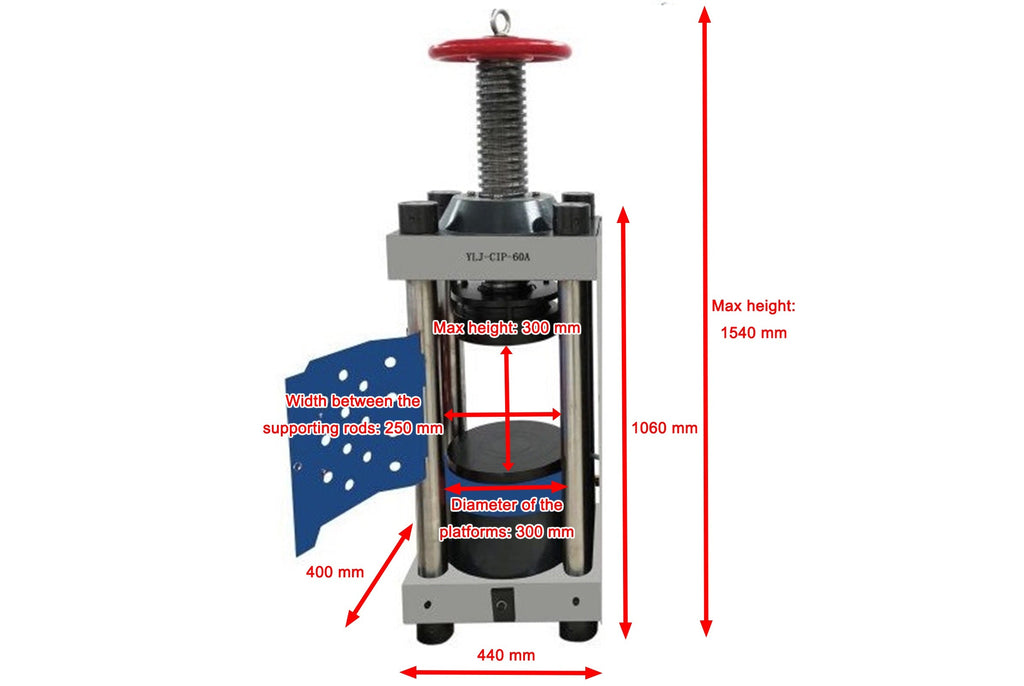

Working Space	Max opening: 250 L x 300 W x 300 H, mm Diameter of top & bottom platform: 300 mm
Press Cover	A metal door with a magnetic door latch Note: For safety, please close the door before operating
Application Notes	Check the Oil Level Regularly. Add AW 46 Hydraulic Oil if the Oil Level is low Do not raise the bottom cylinder (piston) more than it's maximum traveling distance (20 mm) Warning: Customers must always wear protective goggles during operation !!! Please shut the oil release valve and oil drain for transportation or long term idle Operating the pressor inside the glove box is not recommended
Compliance	CE Certified NRTL (UL or CSA) Certification is available upon request at an extra cost ( Isolation transformer will add on)

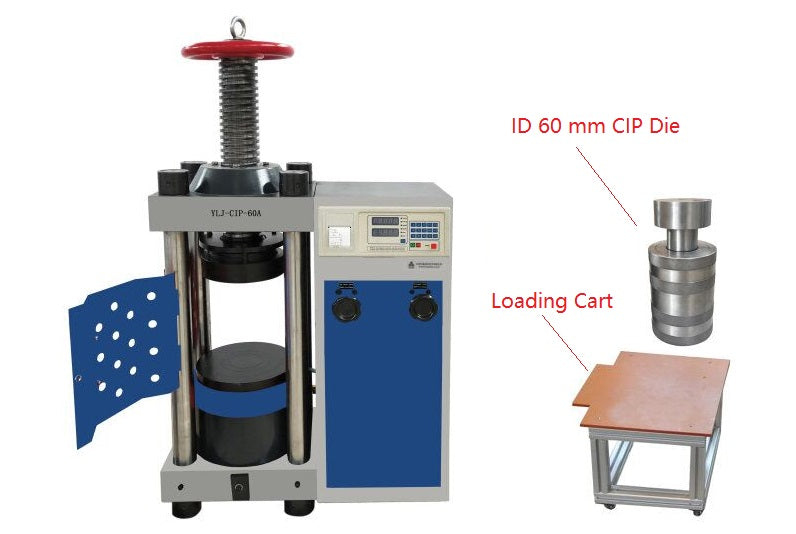

Pellet Press Dies (optional) &CIP die	Pressing dies with various diameters are available upon request at an extra cost Please click pictures below to choose dry pressing die
