5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA

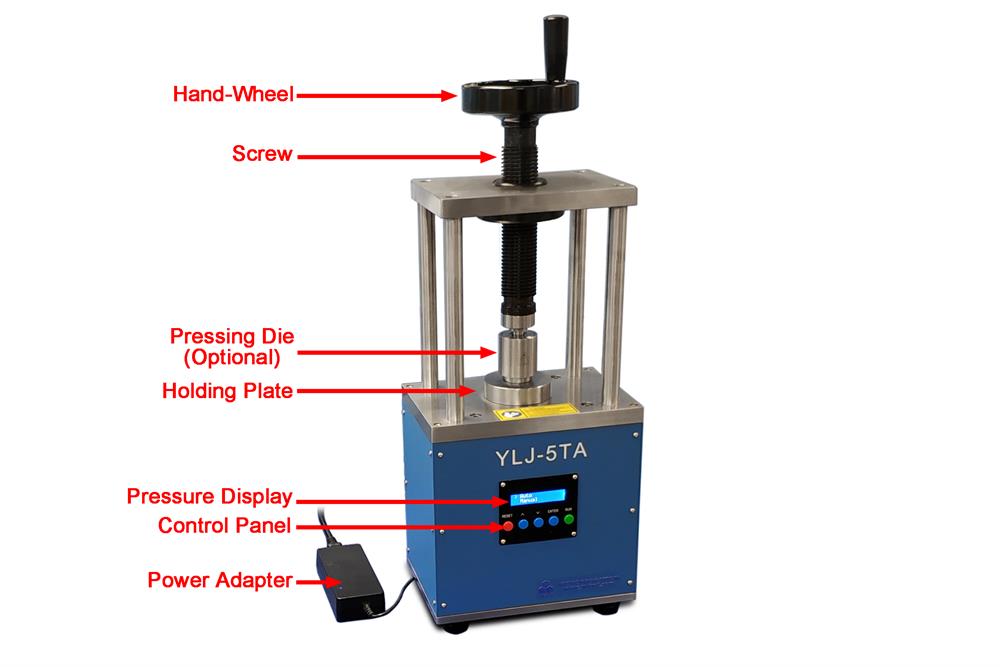

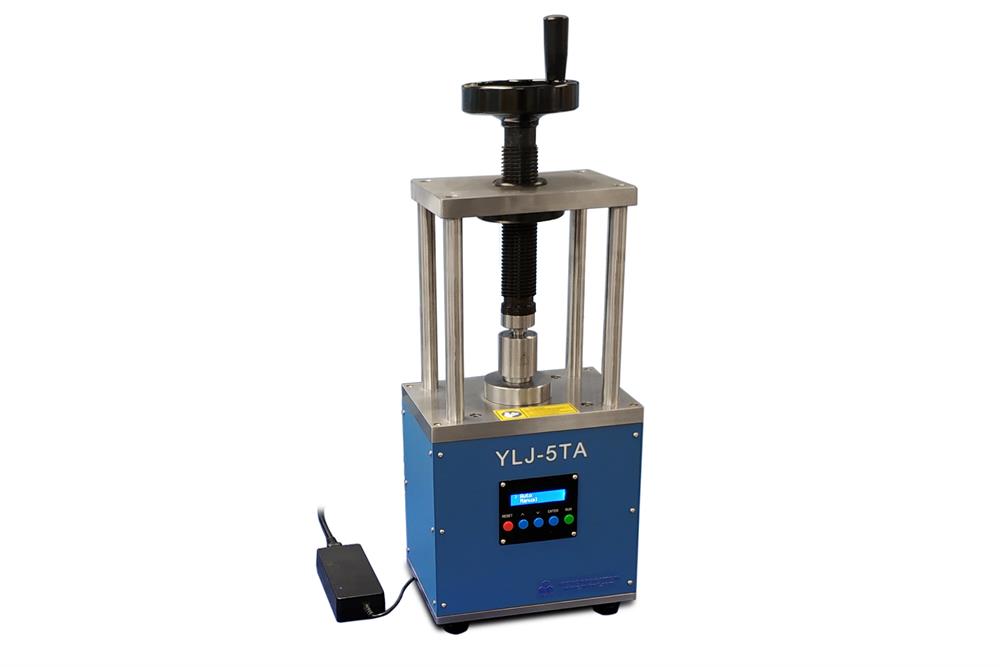

YLJ-5TA is a compact electric compressive & oil-less press with a digital pressure gauge and load cell up to max. 5000 kg force via a DC motor (5 metric Tons). It is designed for compressing small pellets in the glove box (Ar compatible) for ceramic research and solid-state battery. The compact press can be placed inside the glovebox via an antechamber. PC control software and PC connection are included for 2023 and newer models.

SPECIFICATIONS:

Power	24V DC NRTL & CSA certified 110 - 240V AC to 24V DC 90W power adapter for universal use
Pressure	A built-in load cell with a digital display for pressure measurement and control Digital control panel for programmable pressure and dwell time Pressure adjustment range: 0.1-5T Pressure accuracy: +/- 0.003T Time setting: 1 - 999 minutes Optional:  10 metric ton press is available upon request at extra cost

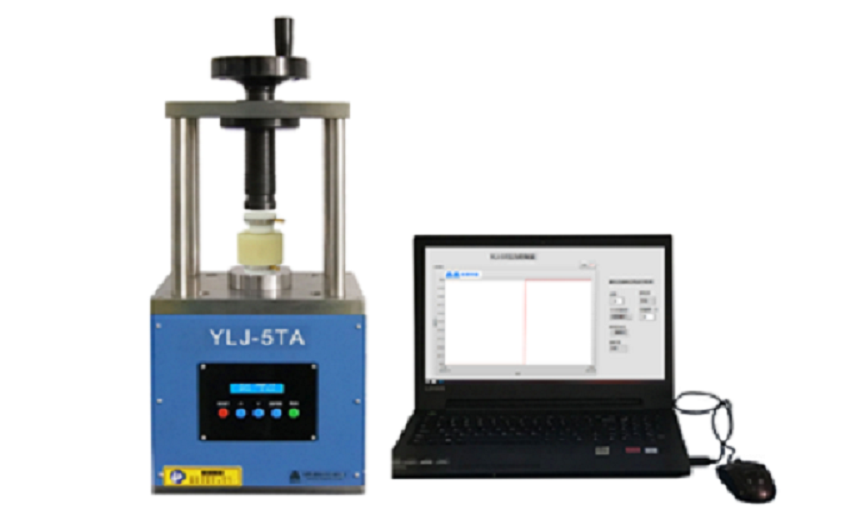

PC Control Software	The PC port is built in for possible remote operation Software functionalities, which are available upon request at extra cost Pressure Monitoring. Data Logging/Exporting to Excel. Set up the pressure and pressing time. Start and stop the press. Optional: A laptop with pre-installed software is available upon request at an extra cost.
Structure	Heavy-Duty Steel Platform

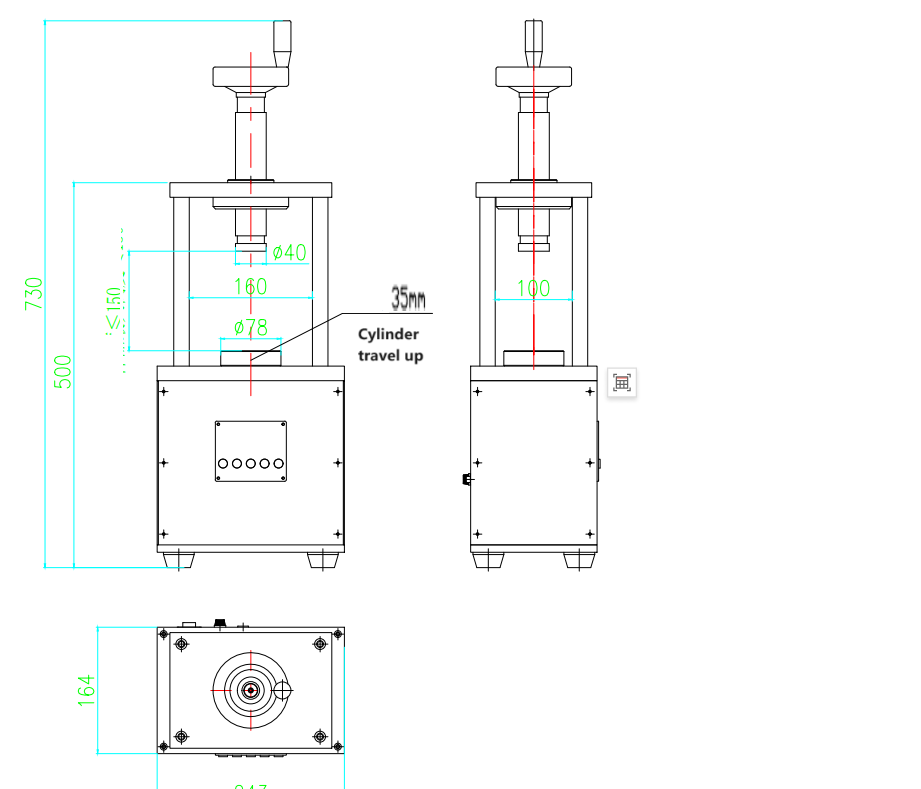

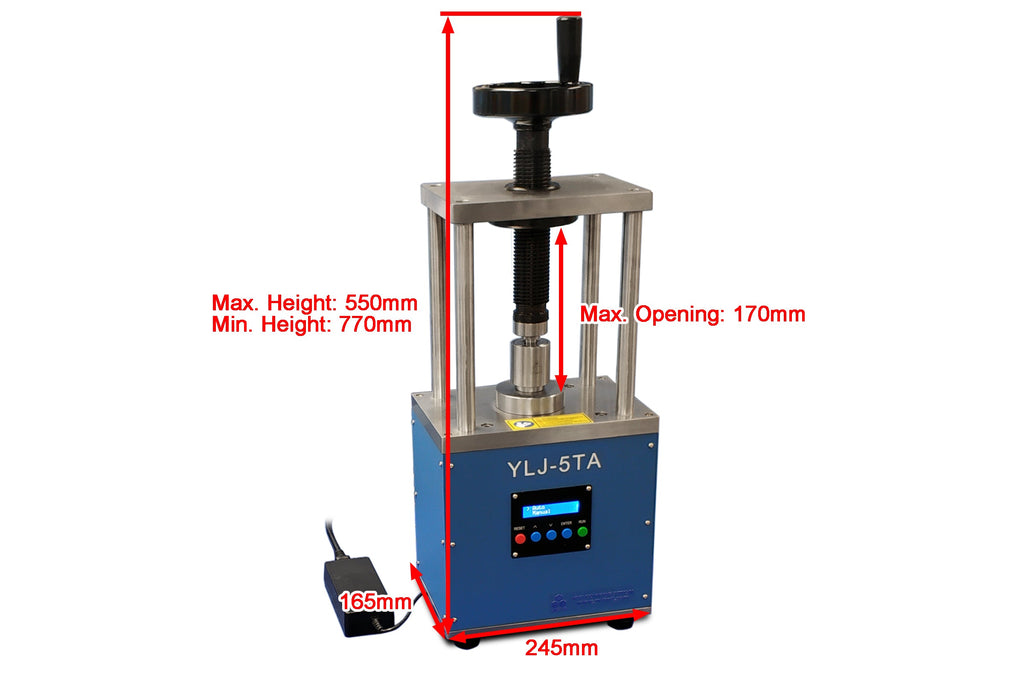

Working space	Stroke: 35 mm Width: 135 mm
Compliance	CE approval NRTL or CSA certification is available upon request at an extra cost.  Note: NRTL certification is not necessary due to 24VDC safe device
