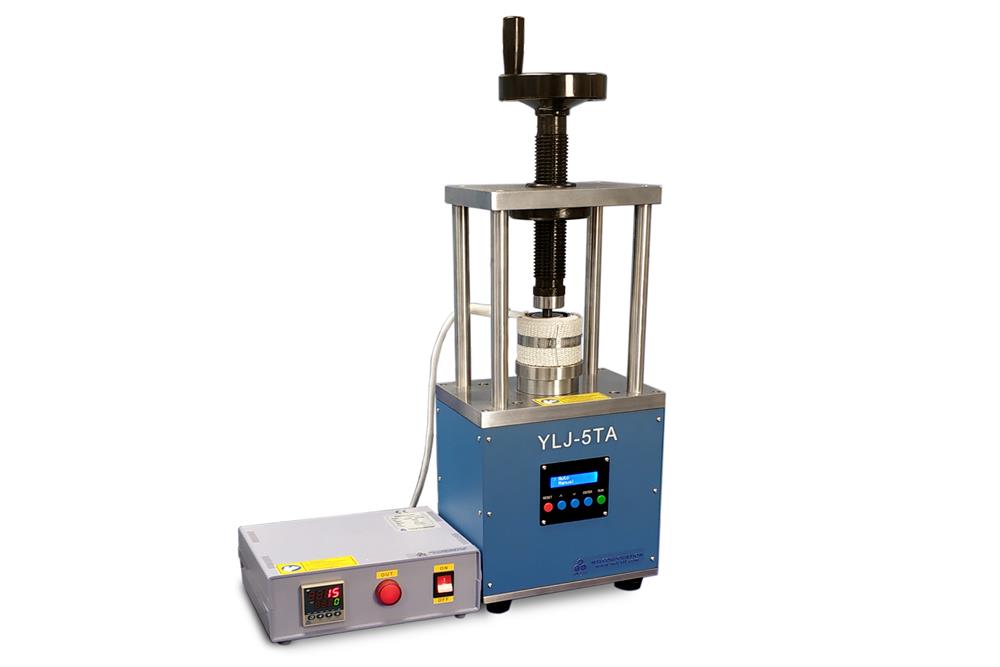

YLJ-HP2 is an electric press with 12, 20 or 25mm I.D. Silicon Nitride Pellet Pressing Die, Heating Jacket (550°C Max.), and Programmable Temperature Controller. It is a ready-to-go product package for pressing ceramic, polymer, or ceramic-polymer composite materials. Applications include microwave dielectric materials, solid-state electrolytes, and semiconductors. The compact design of the press makes it well-suited for inside glove box operation with an inert gas environment (Argon compatible).
Update: Programmable Temperature Controller is standard from 03/09/2021.
SPECIFICATIONS:
| Power |
- Heatable Die Set: AC 220V 50/60Hz, 550 W Max (for 110V version, please order a 750W transformer Pic. 1 )
- Electric Press: 24V DC, NRTL & CSA certified 110 - 240V AC to 24V DC 90W power adapter included (Pic. 2)
- An extension power cable with KF40 Feedthrough is included for using the Electric Press inside the Glovebox.
-
 Pic. 1  Pic. 2  Pic. 3
|
| Working Temperature & Load |
- Temperature: RT - 550 ºC
- Max Pressure: 150 MPa ( 1.6 metric ton ) @ RT - 550 ºC
|
Heatable Die Structure

|

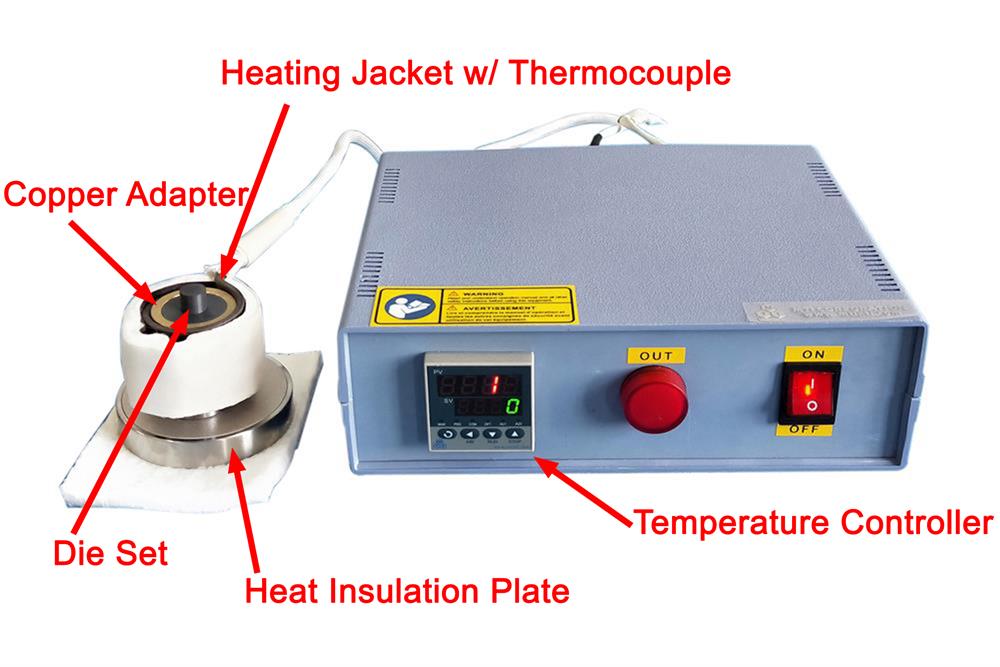

- The Si3N4 Heatable Die Set HC-SiN-12 includes:

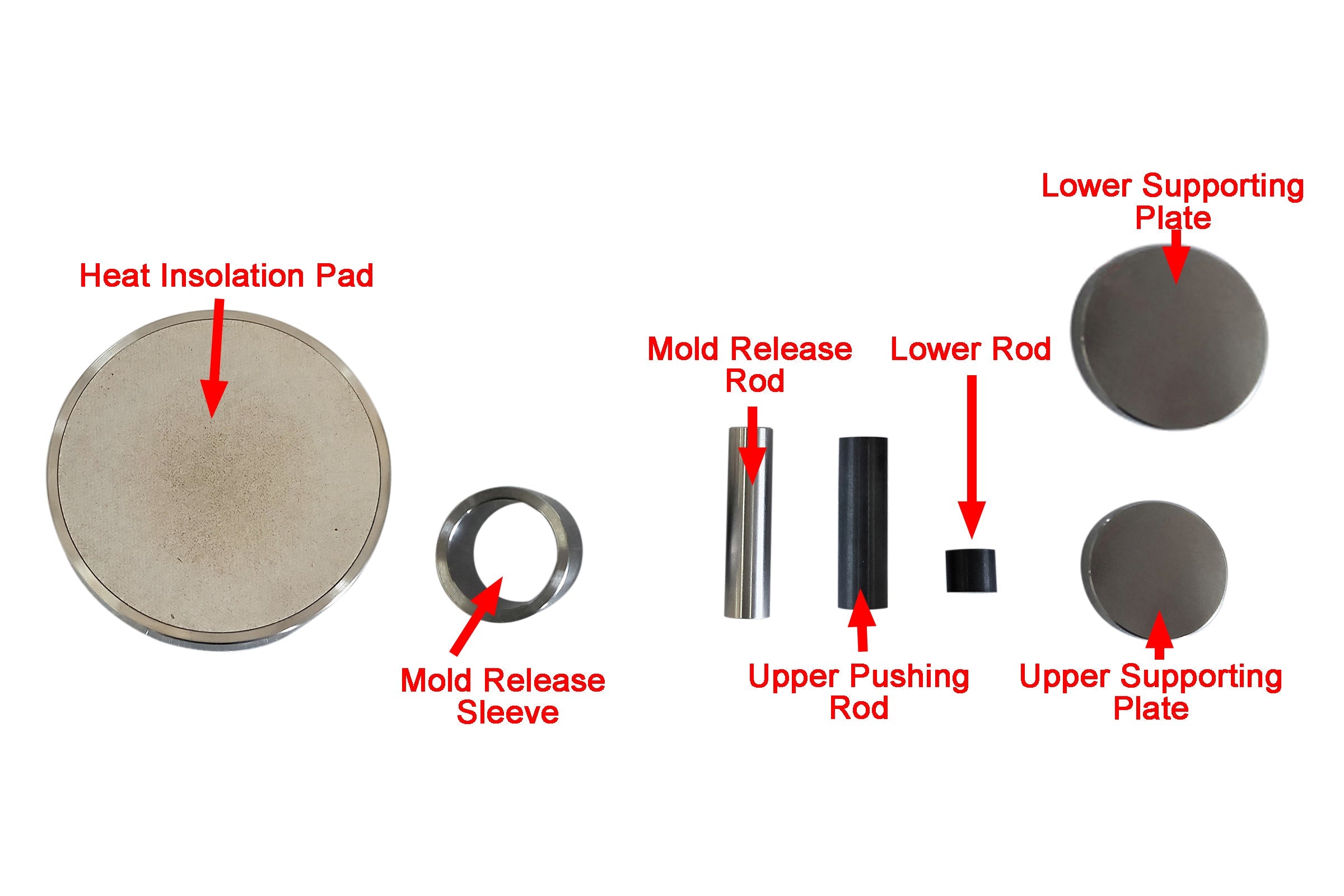

- A set of 12mm I.D. Silicon Nitride Pellet Pressing Die
- Mold Release Rod
- Mold Release Sleeve
- Upper and Lower Supporting Plate
- Heat Insulation Plate with mica

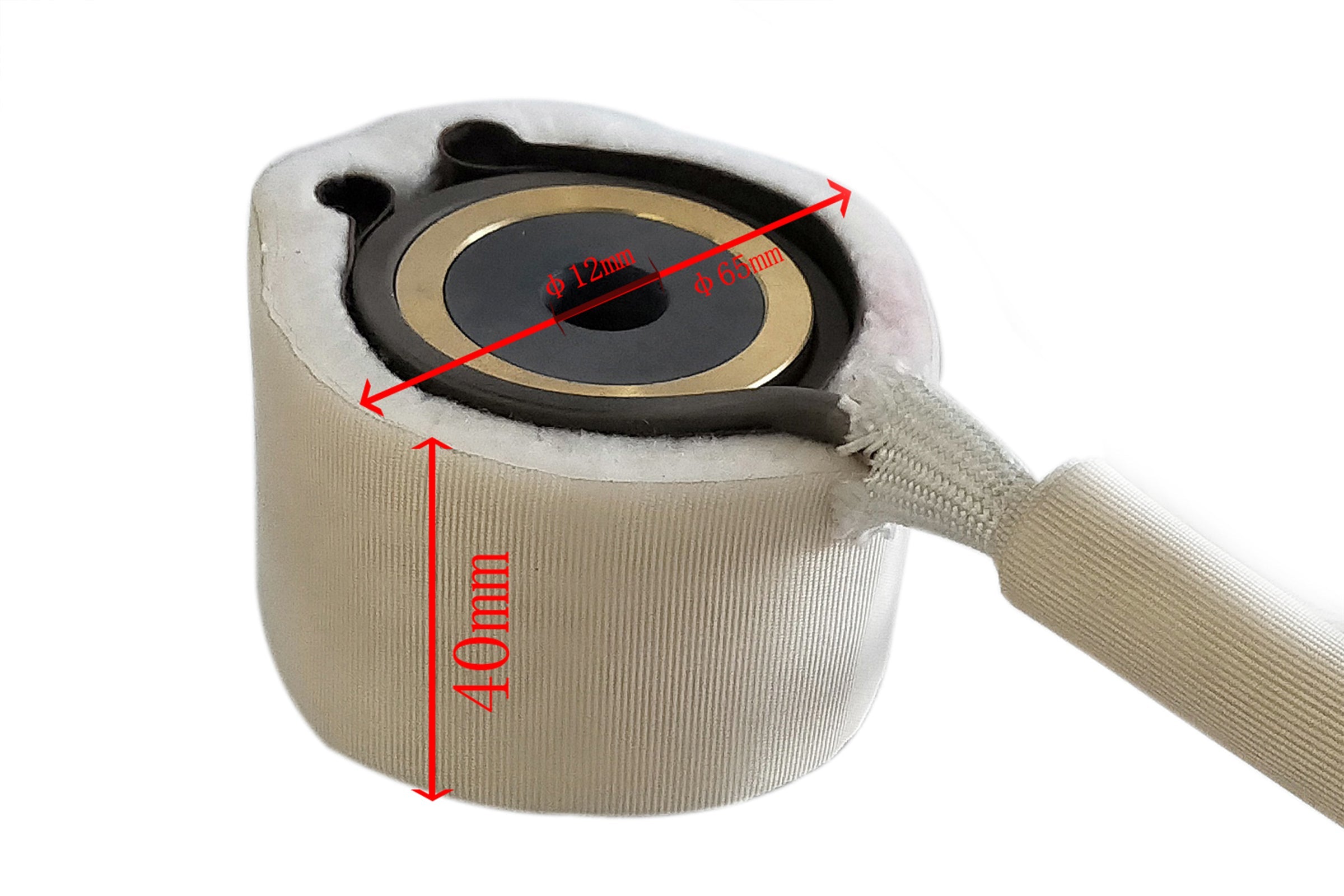

- Heating Jacket: 65mm O.D. x 40mm H
- Copper Adapter: 39mm O.D. x 30mm I.D. x 40mm H
- Programmable Temperature Controller
|
Pressing Control
|
- Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ-5TA
- A built-in load cell with a digital display for pressure measurement and control
- Digital control panel for programmable pressure and dwell time
- Load adjustment range: 0.1-5T (Do NOT overload the Die)
- Load accuracy: +/- 0.005T
- Time setting: 1 - 999 minutes

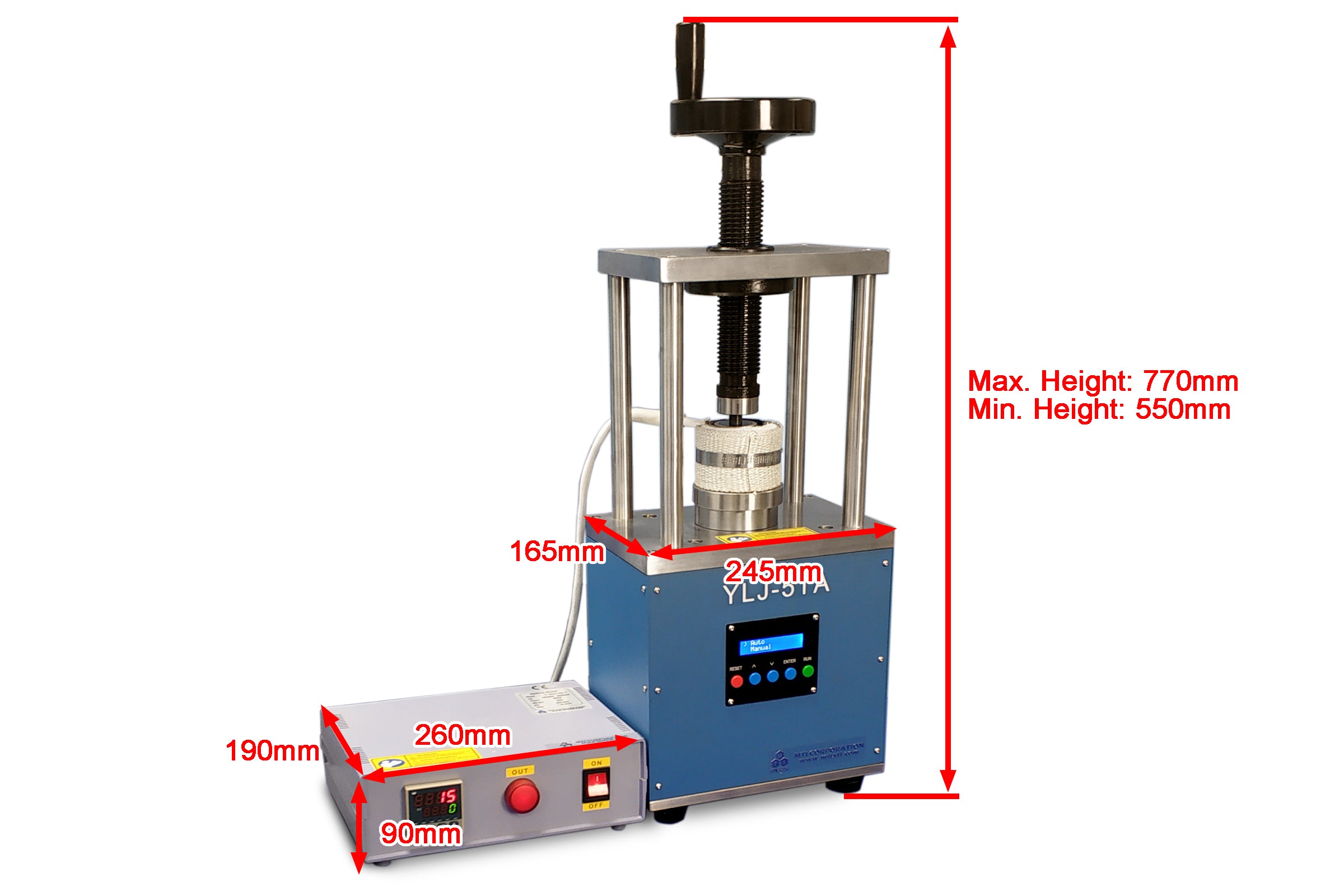

- 240 mm (L) x 165 mm (W) x 560mm (H)
- Die holding plate: Ø78 mm
|
Temperature Control
|
- Programmable PID temperature controller with a built-in type-K thermocouple.
- Temperature Accuracy: +/- 2°C
|
| Glovebox Feasibility |
- This entire product can be operated inside an Argon Glovebox.
- If a feedthrough is needed, please contact MTI for specific solutions.
|
Application Note
|
- Must wear protective goggles during the operation!!!
|
