Small 10 mm I.D. Dry Pellet Pressing Die For Hi-throughput Pressing - Die-10S
  • Small 10 mm I.D. Dry Pellet Pressing Die For Hi-throughput Pressing - Die-10S
  • Small 10 mm I.D. Dry Pellet Pressing Die For Hi-throughput Pressing - Die-10S
  • Small 10 mm I.D. Dry Pellet Pressing Die For Hi-throughput Pressing - Die-10S
  • Small 10 mm I.D. Dry Pellet Pressing Die For Hi-throughput Pressing - Die-10S
Small 10 mm I.D. Dry Pellet Pressing Die For Hi-throughput Pressing - Die-10S

Small 10 mm I.D. Dry Pellet Pressing Die For Hi-throughput Pressing - Die-10S

SKU: die-10s

Price: RFQ

Specifications

 EQ-Die-10S is a small size pressing die with 10 mm I.D. for high-throughput pressing by a 100T hydraulic press machine, which can press 32 pcs pellet at one time. SPECIFICATIONS: Pressing die installation schematic To avoid the risk of accidents and damage to the Pressing Die, please read these instructions carefully before installation and before using it for the first time. Must Read the manual especially the die installation schematic before the operation. The operator must wear protective goggles. Must have Hydraulic Pellet Press equipped with the Protection Cover Material Made by High-stretched Carbon Steel Hardness HRC 60-62 Roughness Average (Ra) 0.08 μm Maximum Load 5 metric Ton (at room temperature) 630 MPa Weight 0.4 Lbs The whole set pressing die includes One 10mm I.D. core die One steel sleeve for the core-die protection Two pushing rods highly polished and perfectly fitted into the die. Cautions WARNING: It would be best if you put die in the center of the pressing machine, it may make the pushing rod crack. DO NOT press flammable, corrosive, or explosive materials The operator must wear a protective goggle . Attention: Use ethanol to clean the pressing die before and after use every time Use anti-rust oil after the operation and store it in a dry place to avoid rusting. NO pressing powder with particle size LESS THAN 30 micronshould be used. Small particles may slip into the gap between the pushing rod and steel sleeve and cause damages to the sleeve during the compression. Ball mill or ground the powder to the size of32~75 microns powder before pressing. 3'' Dia. Sieve Set No.200&450 Mesh can be used to separate the 32~75 microns particles from the powder clumps You may consider using BNMR for easy mold release. Please click the picture below to order. Steps to make pellet Mixing and grinding chemical powder by agate mortar or Ball Mill Calcine mixed the powder in a high temp furnace under suitable temperature Crushing and Grinding calcined powder again by gate mortar or Ball Mill Put calcined powder into the die Pressing sample by a pressing machine under suitable pressure Take out pellet sample from die Sintering the pellet under suitable temperature in Oven Then, a new material sample is formed!

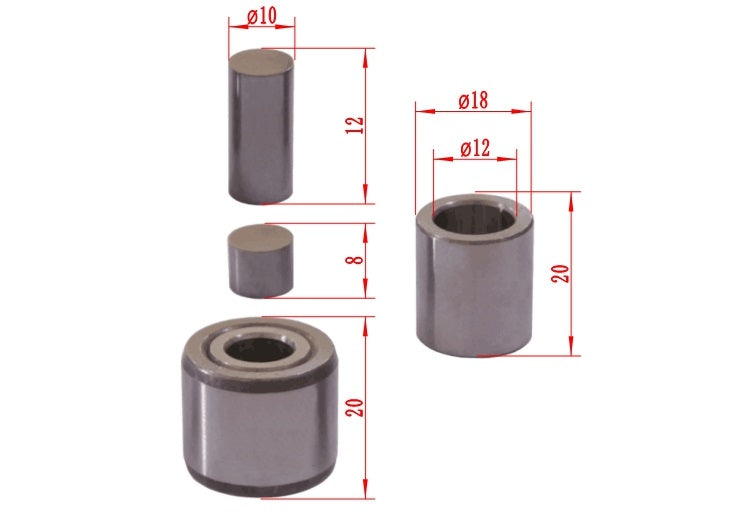

Pressing die installation schematic

  • To avoid the risk of accidents and damage to the Pressing Die, please read these instructions carefully before installation and before using it for the first time.
    1. Must Read the manual especially the die installation schematic before the operation.
    2. The operator must wear protective goggles.
    3. Must have Hydraulic Pellet Press equipped with the Protection Cover
Material Made by High-stretched Carbon Steel
Hardness HRC 60-62
Roughness Average (Ra) 0.08 μm
Maximum Load 5 metric Ton (at room temperature)
630 MPa
Weight 0.4 Lbs

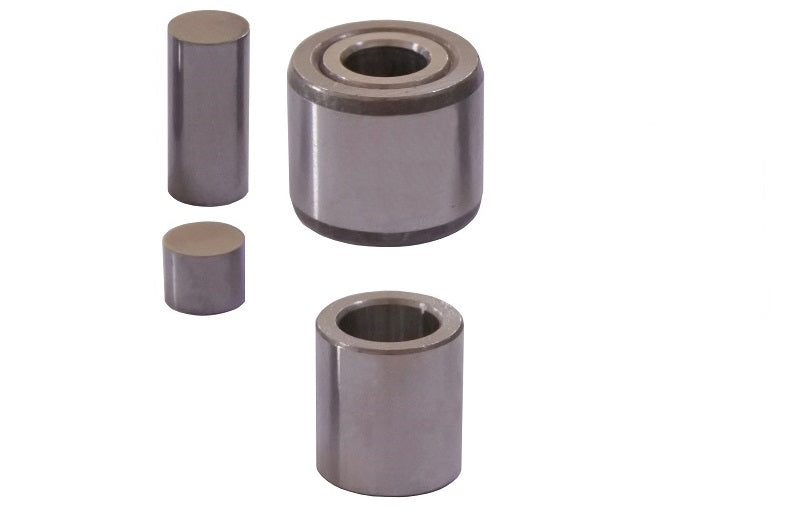

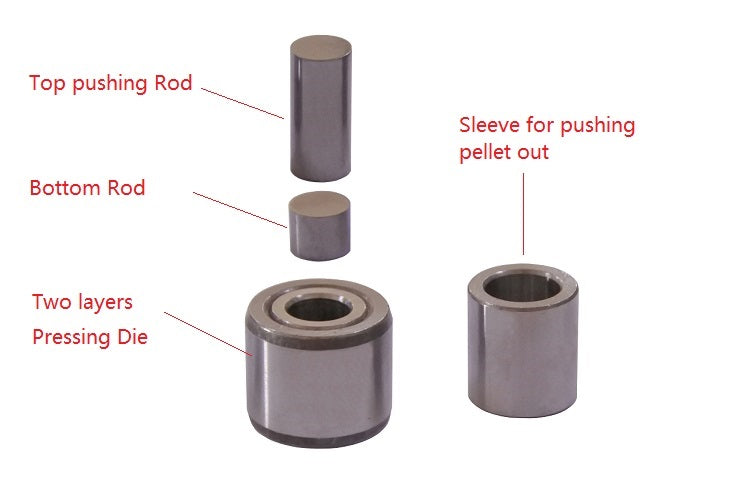

The whole set pressing die includes
  • One 10mm I.D. core die
  • One steel sleeve for the core-die protection
  • Two pushing rods highly polished and perfectly fitted into the die.

Cautions
  • WARNING:
    • It would be best if you put die in the center of the pressing machine, it may make the pushing rod crack.
    • DO NOT press flammable, corrosive, or explosive materials
    • The operator must wear a protective goggle.
  • Attention:
    • Use ethanol to clean the pressing die before and after use every time
    • Use anti-rust oil after the operation and store it in a dry place to avoid rusting.
    • NO pressing powder with particle size LESS THAN 30 micronshould be used. Small particles may slip into the gap between the pushing rod and steel sleeve and cause damages to the sleeve during the compression.
    • Ball mill or ground the powder to the size of32~75 microns powder before pressing.
    • You may consider using BNMR for easy mold release. Please click the picture below to order.


Steps to make pellet
  • Mixing and grinding chemical powder by agate mortar or Ball Mill
  • Calcine mixed the powder in a high temp furnace under suitable temperature
  • Crushing and Grinding calcined powder again by gate mortar or Ball Mill
  • Put calcined powder into the die
  • Pressing sample by a pressing machine under suitable pressure
  • Take out pellet sample from die
  • Sintering the pellet under suitable temperature in Oven
  • Then, a new material sample is formed!
