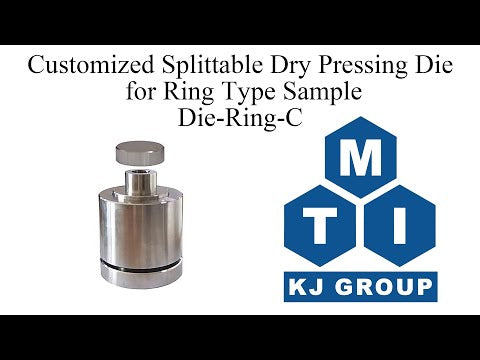

Split Dry Pressing Die for Ring Type Sample from 10 mm to 32.mm Dia. - Die-Ring-C
  • Split Dry Pressing Die for Ring Type Sample from 10 mm to 32.mm Dia. - Die-Ring-C
  • Split Dry Pressing Die for Ring Type Sample from 10 mm to 32.mm Dia. - Die-Ring-C
  • Split Dry Pressing Die for Ring Type Sample from 10 mm to 32.mm Dia. - Die-Ring-C
  • Split Dry Pressing Die for Ring Type Sample from 10 mm to 32.mm Dia. - Die-Ring-C
Split Dry Pressing Die for Ring Type Sample from 10 mm to 32.mm Dia. - Die-Ring-C

Split Dry Pressing Die for Ring Type Sample from 10 mm to 32.mm Dia. - Die-Ring-C

SKU: die-ring-c

Price: RFQ

Specifications

 Die-Ring-C is a split-drying pressing die for making ring-type samples in the ID 5- 32.5 mm range and OD 10 - 58 mm. SPECIFICATIONS: Materials Cr12MoV Hardness: HRC 60 Max. Load 350 MPa Pressing die installation schematic Application Notes To get the better density of samples, please considering using a cold isostatic press (CIP) Small particles may slip into the gap between the pushing rod and steel sleeve and cause damages to the sleeve during the compression. We recommend using 32~75 microns powder to avoid damages. Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to get 32~75 microns particles Please use alcohol to clean the pressing die every time before and after use Store it in a dry place with antirust oil after the operation to avoid rusting. For pressing sticky metal powders such as Al, Mg, Zn, it is necessary to use dry or alcohol-based lubricant to lubricate the die and sleeve set to reduce friction during the compression. Please must always wear protective goggles during the operation !!! Related Products Pressing Die 1/8" - 3" Powder grinding & Mixing Drying Ovens Calcining & Sintering Hydraulic Press CIP - Cold Isostatic Press

Materials
  • Cr12MoV
  • Hardness: HRC 60
 Max. Load
  • 350 MPa

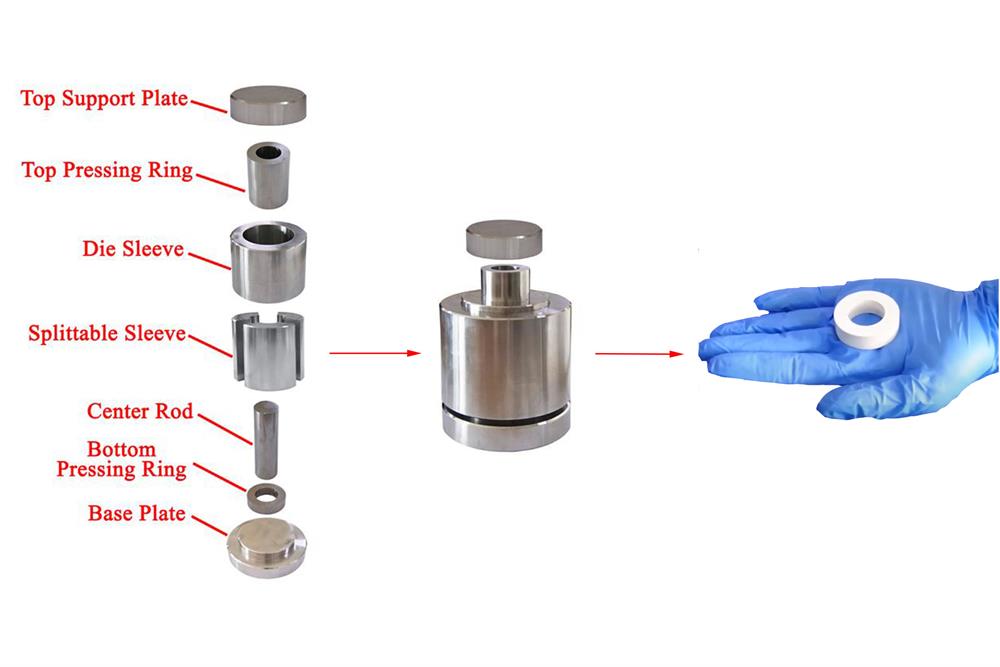

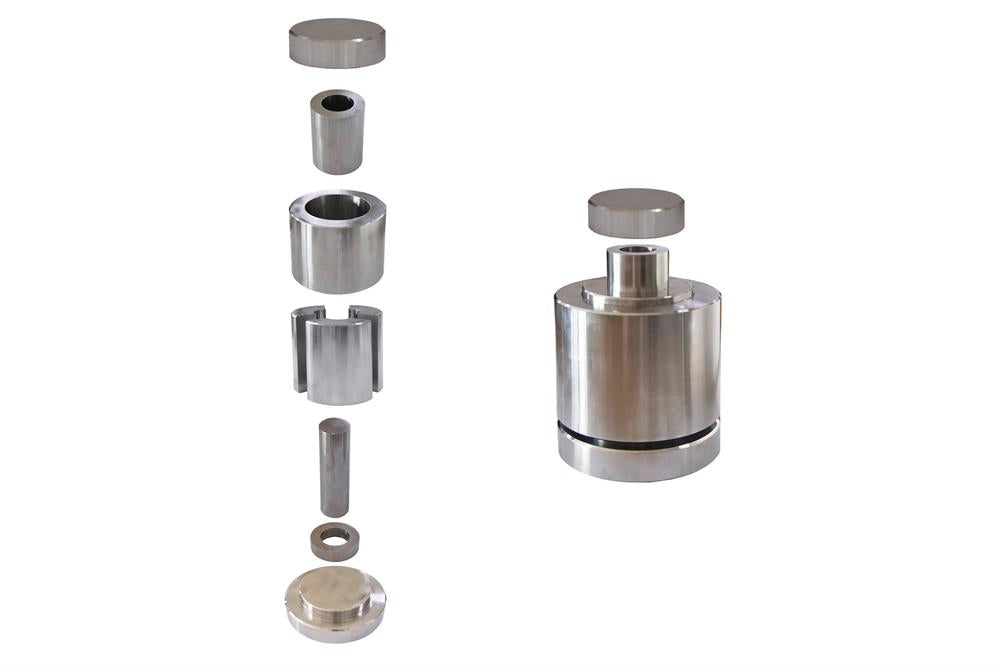

Pressing die installation schematic

Application Notes
  • To get the better density of samples, please considering using a cold isostatic press (CIP)
  • Small particles may slip into the gap between the pushing rod and steel sleeve and cause damages to the sleeve during the compression. We recommend using 32~75 microns powder to avoid damages.
  • Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to get 32~75 microns particles
  • Please use alcohol to clean the pressing die every time before and after use
  • Store it in a dry place with antirust oil after the operation to avoid rusting.
  • For pressing sticky metal powders such as Al, Mg, Zn, it is necessary to use dry or alcohol-based lubricant to lubricate the die and sleeve set to reduce friction during the compression.
  • Please must always wear protective goggles during the operation !!!
,
