1500oC Rotary Tube Furnace w/ 4.7" ID Chamber for Inert or CO2 Gas Up to 10 Bar - GSL-1500X-10R-5
  • 1500oC Rotary Tube Furnace w/ 4.7" ID Chamber for Inert or CO2 Gas Up to 10 Bar - GSL-1500X-10R-5
  • 1500oC Rotary Tube Furnace w/ 4.7" ID Chamber for Inert or CO2 Gas Up to 10 Bar - GSL-1500X-10R-5
  • 1500oC Rotary Tube Furnace w/ 4.7" ID Chamber for Inert or CO2 Gas Up to 10 Bar - GSL-1500X-10R-5
1500oC Rotary Tube Furnace w/ 4.7" ID Chamber for Inert or CO2 Gas Up to 10 Bar - GSL-1500X-10R-5

1500oC Rotary Tube Furnace w/ 4.7" ID Chamber for Inert or CO2 Gas Up to 10 Bar - GSL-1500X-10R-5

SKU: gsl-1500x-10r-5

Price: RFQ

Specifications

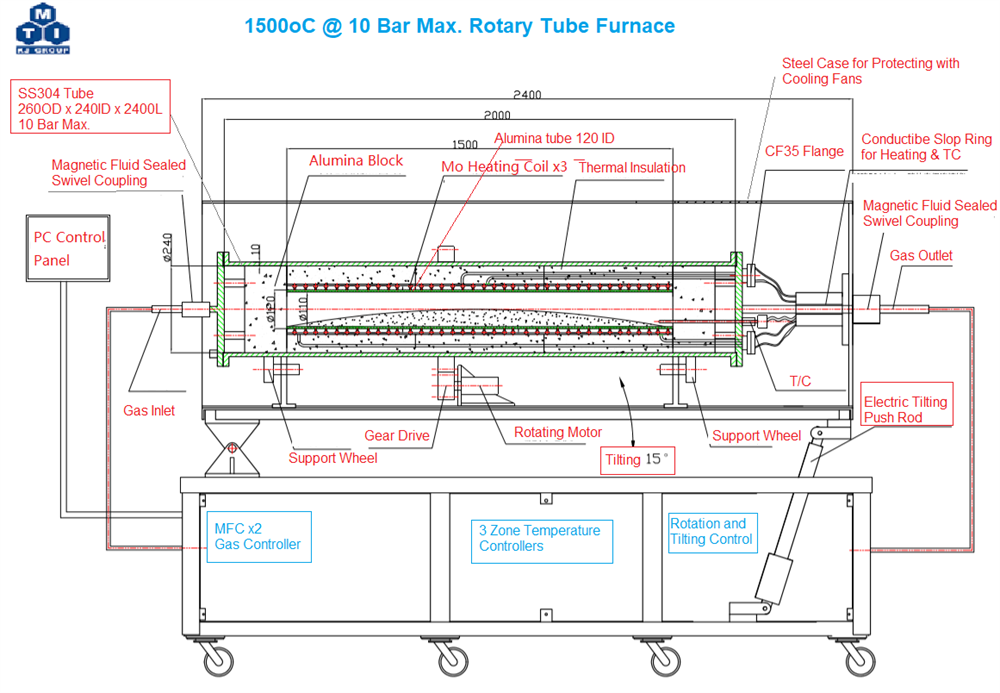

 GSL-1500X-10R is a high-pressure rotary tube furnace for inert gas flow at 10 Bar max up to 1500ºC. The alumina processing tube with 4.7" ID x 59"L is inserted into three zones of heated Moly coils which are built inside the SS 304 tube with 10" OD and vacuum flange. The explosion-proof case is built-in outside the vessel. The furnace is suitable for calcining powder under high pressure reduced inert gases or flowing CO2 gas for CO2 capture

 Power
  • 208 - 240V AC, single phase, 50/60Hz
  • 15KW max
  • > 75A breaker
  • The power cable is included, but the power plug is not

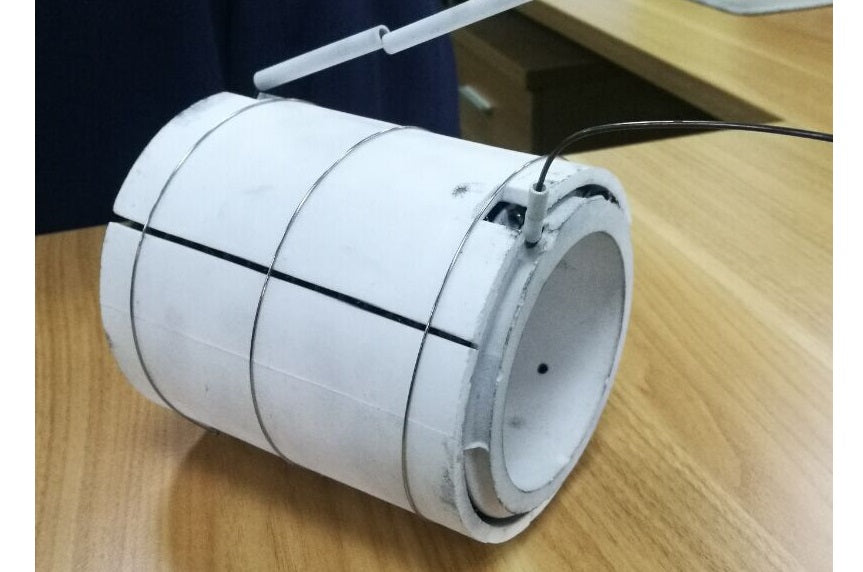

Heating Chamber
  • The heating coil is made of 2 mm diameter Moly wire with 4.75" ID ( 120 mm) x 59" Length (1500 mm )
  • Three Heating zone, each zone length is about 500 mm with independent temperature control.
  • Constant temperature zone length: ~ 1000 mm within +/-5ºC
  • The heating coil is surrounded by fibrous alumina for thermal insulation which is
  • The heating element is built inside the SS304 tube with 240 mm OD x 10 mm thickness with vacuum-sealed flanges and gas inlet and outlet valves.
  • The pained steel case is built outside tube for forced air cooling and explosion protection
Rotation & Tilting
  • The tube furnace is rotary driven by an electric motor.
  • The sliding ring technique is used to ensure the furnace heating during rotation.
  •  Rotation speed is adjustable at 0 - 10 RPM with forwarding and reverse
  •  The furnace can be tilted at 0 - 15º by the electric motor.
Material Feeding

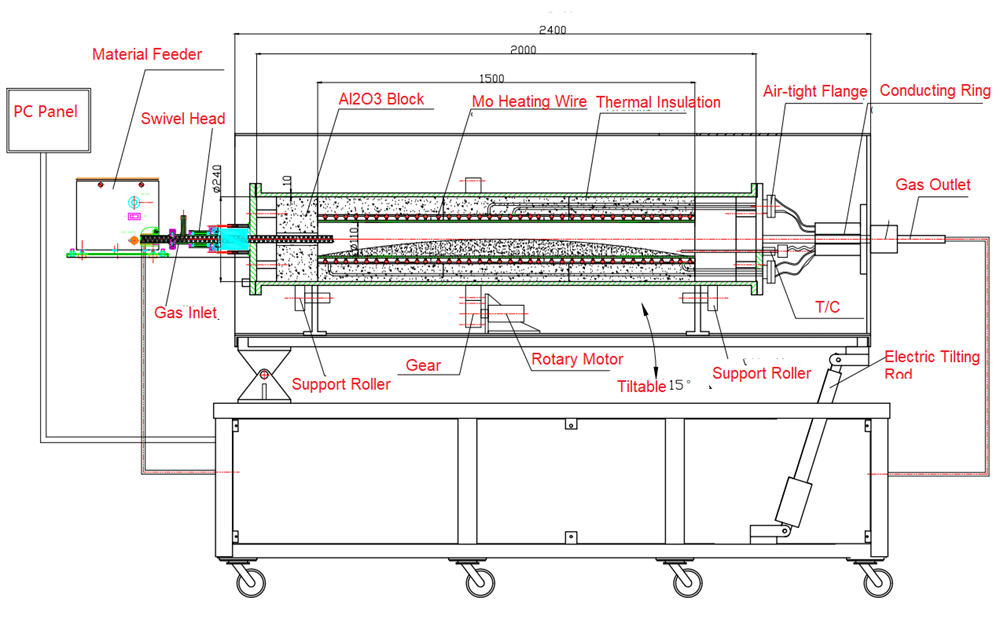

  • The automatic powder feeder is mounted on the tiltable furnace via a vacuum-sealed swivel assembly. (Pic 1)
  • The proper connection ensures a uniform feeding rate and the tube rotation undisturbed under a controlled atmosphere. (Pic 2-3)

Temperature Control

  • Three programmable temperature controllers are installed with+/- 0.1ºC accuracy
  • (Eurotherm 3000 temperature controller)
  • Three S-type thermal couple is installed
  • RS485 port is installed for connecting to the PC
  • Brand-new Laptops and software are included.
Pressure Control
  • A programmable digital pressure controller is installed, which allows you to set up gas pressure up to 10 bars with 30 segments.
  • An overpressure valve is installed for protection
Gas Flow Control Optional
  • Two high-pressure MFCs are optional control gas flow/ One for gas inlet and one for gas out up to 10 Bar
  • Gas flow accuracy: FS 0.02%
Compliance
  • CE, CSA or NRTL certification is available upon request at the extra cost
