High Vacuum Thermal Evaporation Coater With Six Sources for Perovskite Solar Cells - GSL-1800X-ZF6-PSC

Input Power

• Input: AC220V±10%, three-phases, 50/60 Hz
• Total Power required: 8 KW (~32A)

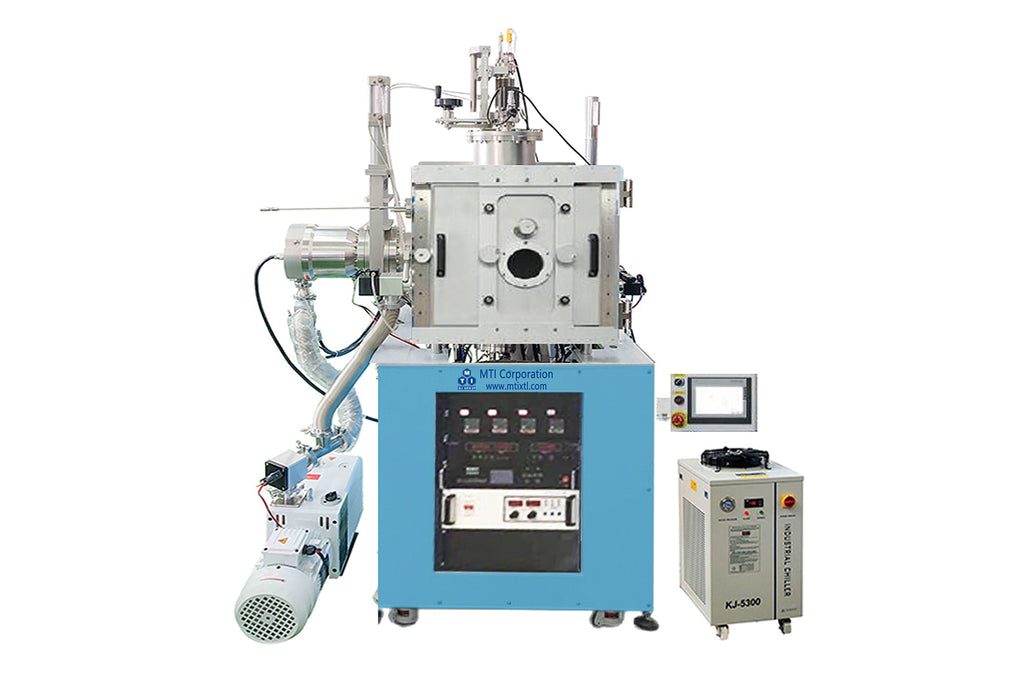

Vacuum Chamber

• Stainless steel (SS304) chamber:  400mm ID. x 400 mm D x 450 mm H, polished finish.
• 100 mm observation window
• Hinged-type door for easy sample loading
• Motorized shutters for each evaporation boat,
• One ISO-100K port for connection with a turbo pump and a gate valve.

• 260 L/s turbo molecular pump
• Vacuum level: 5.0x10^-6 Torr ( after 40 minutes of pumping )
• Limit vacuum: 5.0x10^-7  Torr ( after baking at 100 -150°C)
• Leaking rate: 5.0x10^-7 Pa.
• Vacuum Port: DN 100 ISO-K
• A mechanical pump (YTP-550-LD) is required as a backing pump to initially achieve the vacuum level of <1e-2 torr

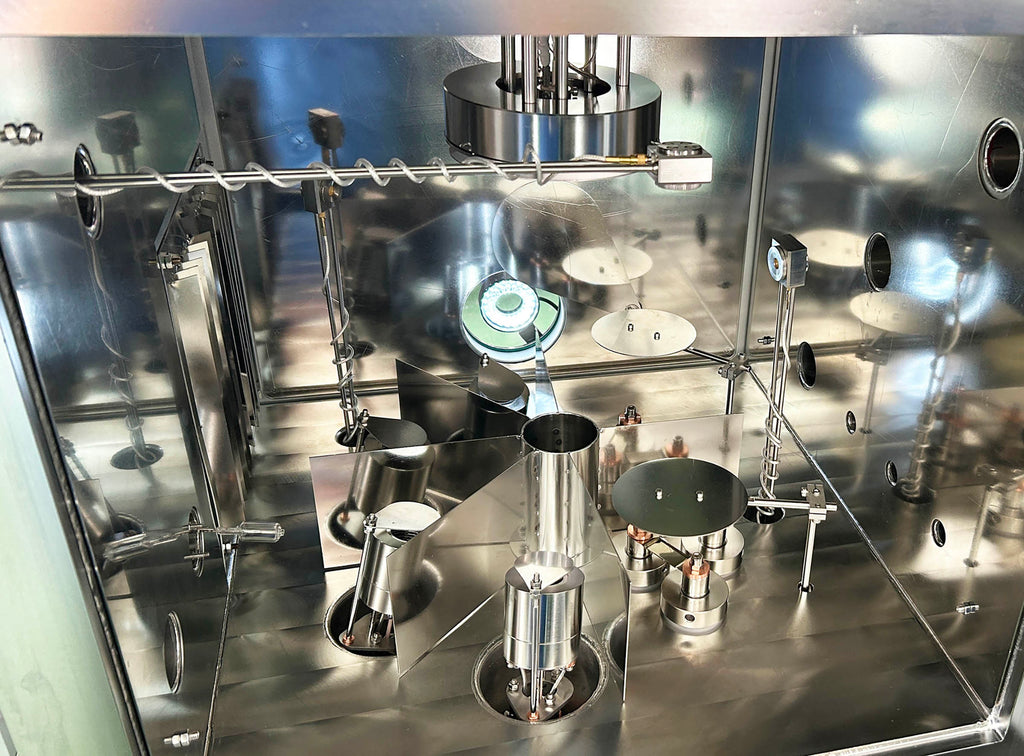

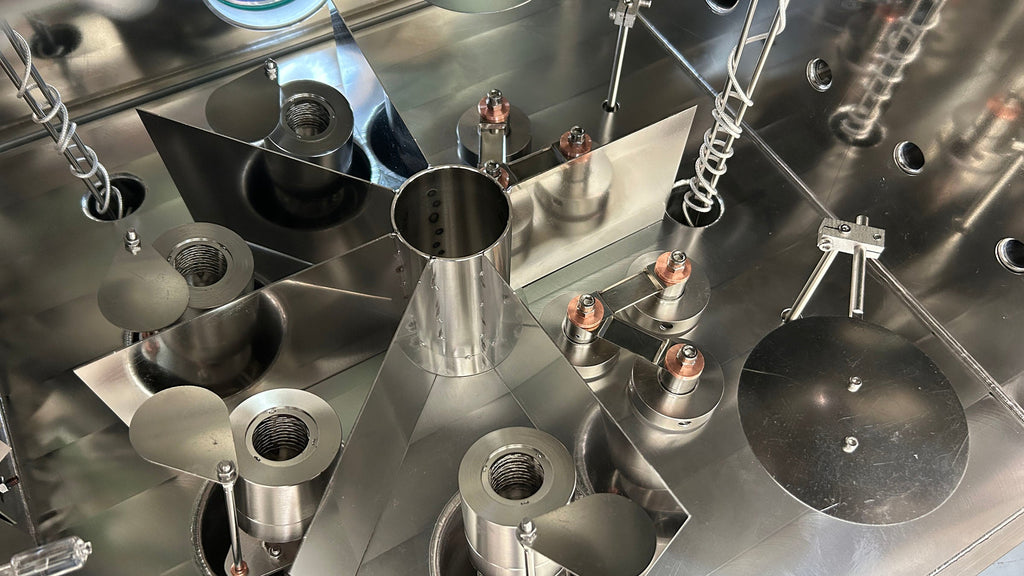

• Four tungsten heating boats with water-cooled shrouds
• Tungsten heating boat, 70L x 12W x 3H (mm).
• Sample holder can accept a maximum sample of 150*150mm. Rotation speed: 0-30 rpm
• Evaporation distance from source to sample holder is up to 60 mm
• The sample stage with a heating function up to 700 °C

• Quartz crystal microbalance is optional for thickness measurements
• The accuracy of thickness control is 1.0 Angstrom.

• Vacuum, thickness, and power control are integrated into one control box
• The Control Unit is separated from the vacuum chamber for easy moving

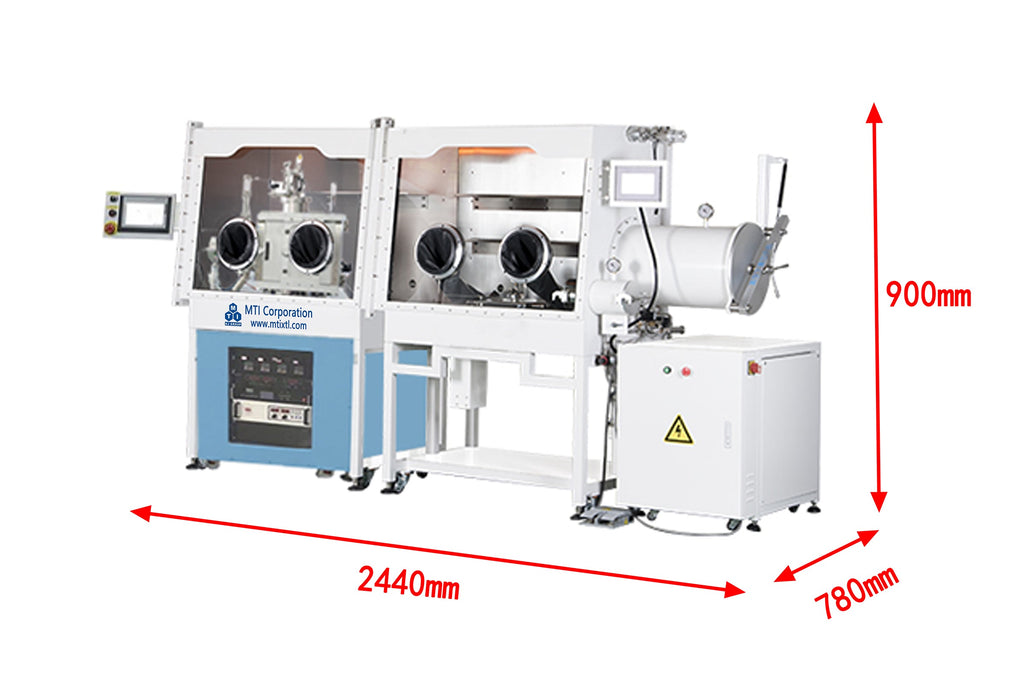

• A dual chamber glovebox with a dimension of L2440mm * W780mm * H900mm
• Four gloves will be included
• 10 KF40 ports at the backside
• 0.1 ppm O2/H2O
• More details can be found here VGB-6-II-LD

Facility Requirement

• Space: 250 SF with height > 6 feet

• Chilled Water: > 16L/minute flowing water required for electrode cooling or using a recirculating water chiller

Certificate
