SKU: ksl-1700x-ac-80

Price: RFQ

Description

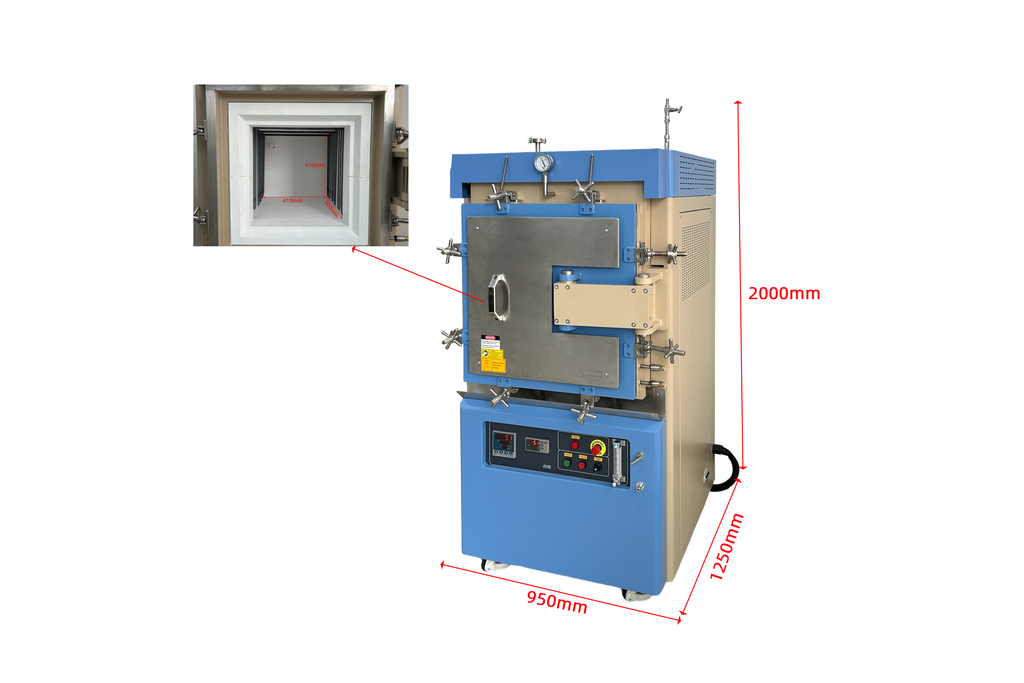

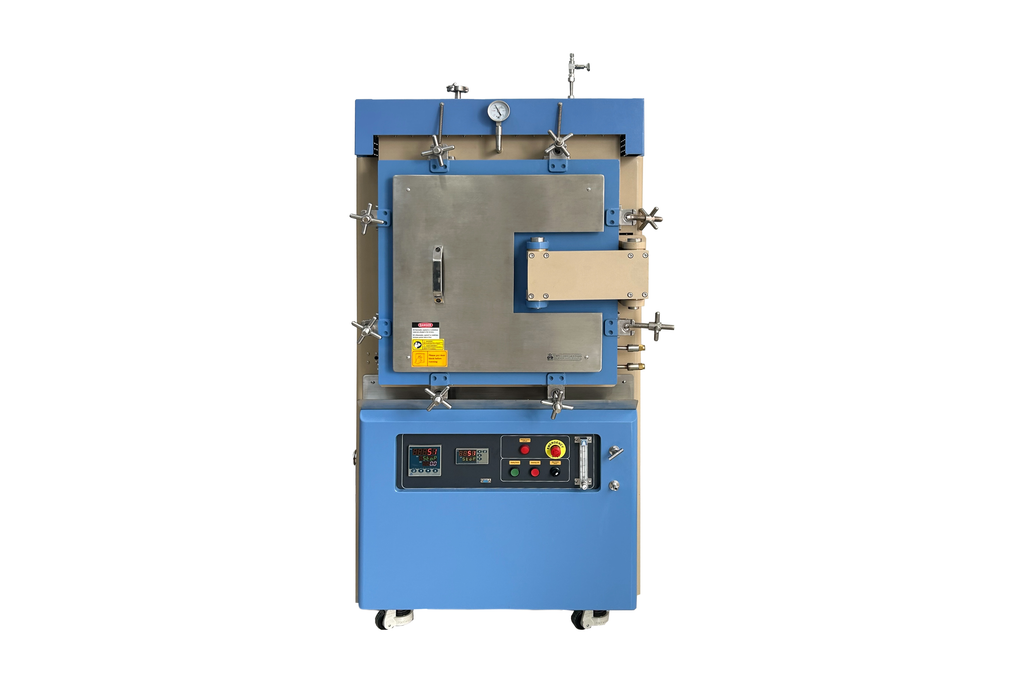

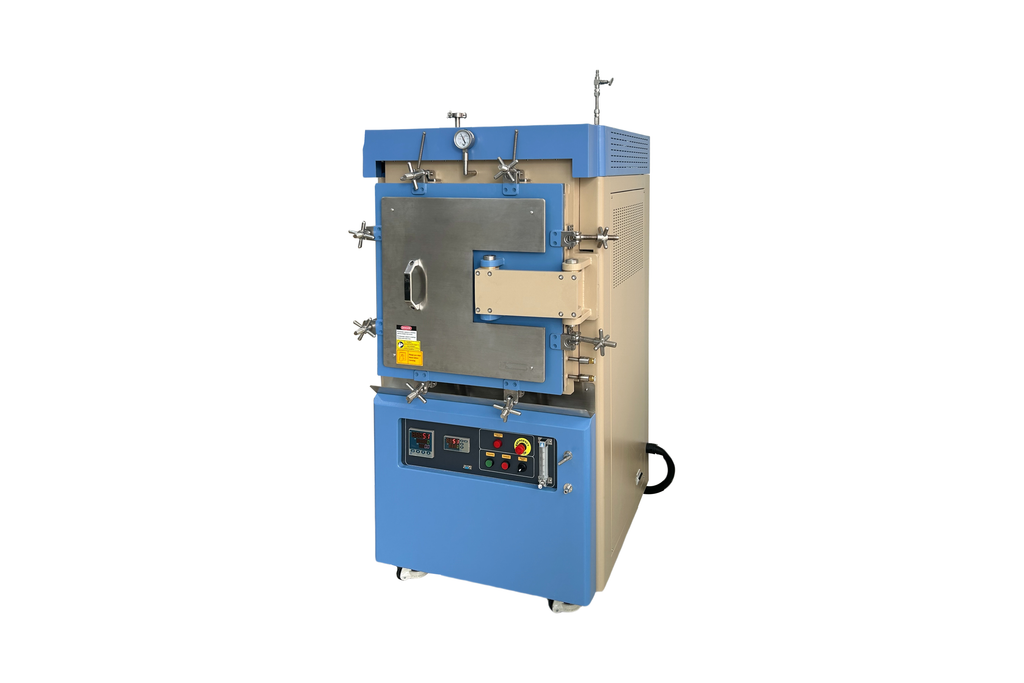

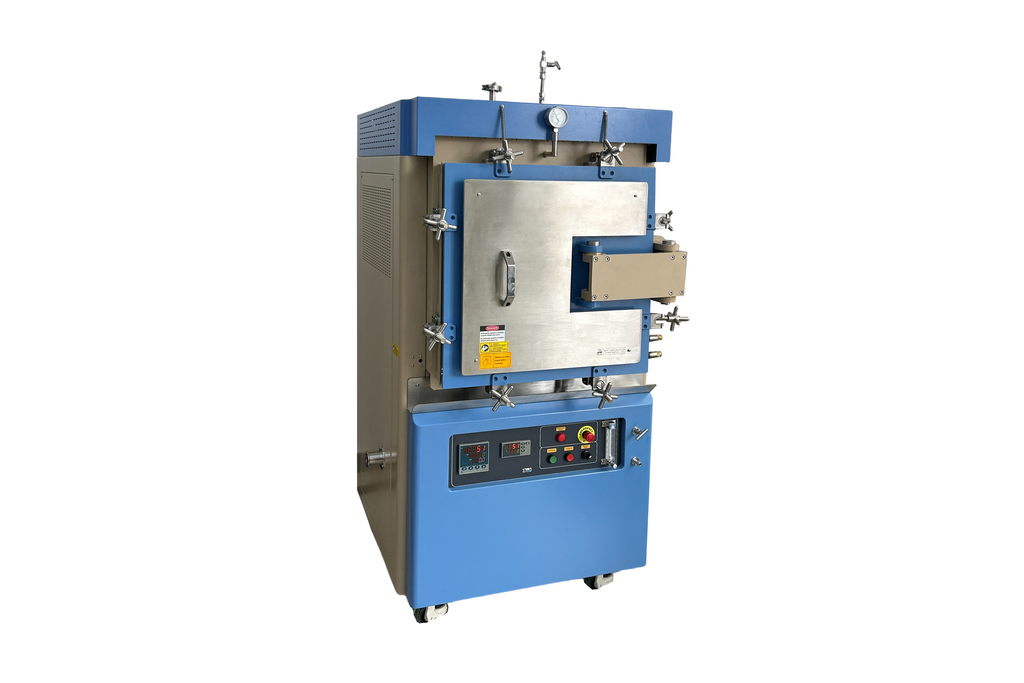

KSL-1700X-AC-80 is an economic atmosphere-controlled box furnace that is designed for treat materials under inert gas, oxygen, or vacuum up to 1700°C. The furnace consists of high-quality alumina fiber bricks and MoSi2 heating elements with a heating chamber of 410×410×500 mm (16"x 16" x 20") Features Chamber size 410 mm x 410 x 500 mm (about 16" × 16" × 20"), 80 Liter Atmosphere-controlled steel chamber for oxygen, inert, and vacuum conditions. MoSi2 heating elements

SPECIFICATIONS

Power
  • 480VAC, 3 phases, 50/60 Hz, 26 kW
  • Other working voltages is available upon built-to-order.

Heating Chamber

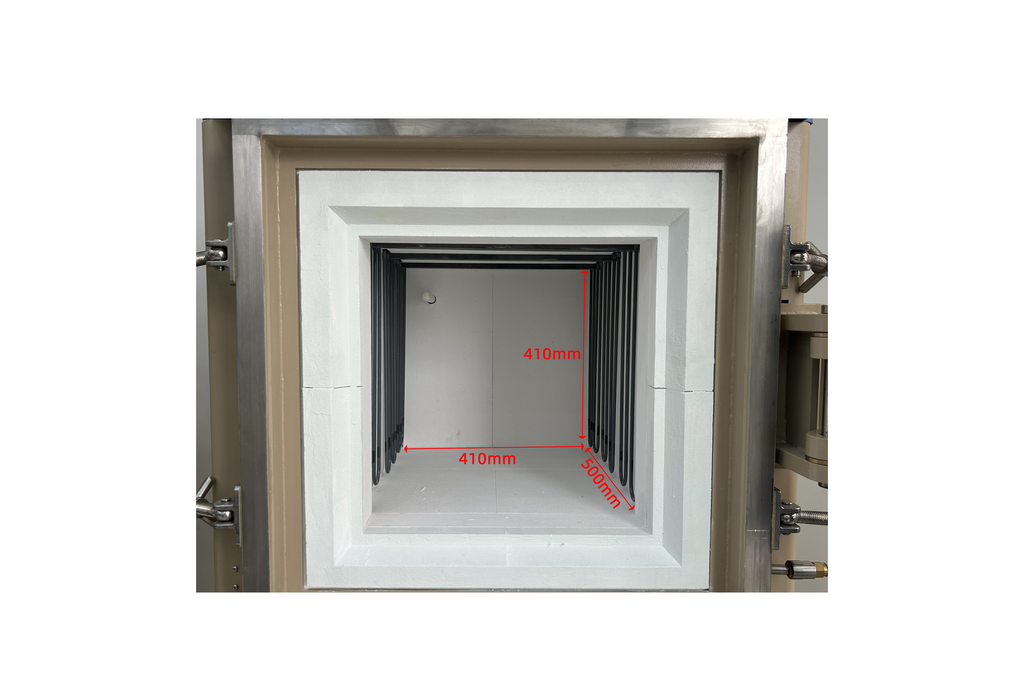

  • Steel Chamber: 410 mm x 410 x 500 mm, 80 Liter

  • 1800-grade fibrous alumina insulation

  • Max. Loading: 100 Kg

Heating Elements
  • MoSi2 heating elements, 8 pieces

Working Temperature
  • Air          800 - 1700 °C continuously
  • Inert       800 - 1500 °C continuously
  • 5% H2    800 - 1500 °C continuously
  • Vacuum  800 - 1400 °C continuously

Temperature Control
  • MTI OEM 858P PID temperature controller
  • 50 programmable temperature segments
  • 0.1°C temperature resolution
  • ±1°C temperature control accuracy
  • DB9 RS 485 serial port
  • (Optional) Eurotherm 3000 series temperature controller for better control stability

Thermocouple
  • Dual type B thermocouple

Pressure
  • < 3 psig

Vacuum
  • KF25 port
  • <0.5 torr

Vacuum Pump (Optional)

Gas Flow

  • Gas inlet 1/4" compression tube fitting

  • Gas outlet 1/4" compression tube fitting

  • 1-12 L/min float flow meter

Water Cooling

  • Water cooling is required to prevent the front seal from melting

  • Push-to-connect Ø12 mm water inlet and outlet

  • MTI recommends using KJ6200 water chiller or equivalent cooling capacity.

Compliance

  • CE Certified

  • NRTL or CSA certification is available upon request at extra cost.
