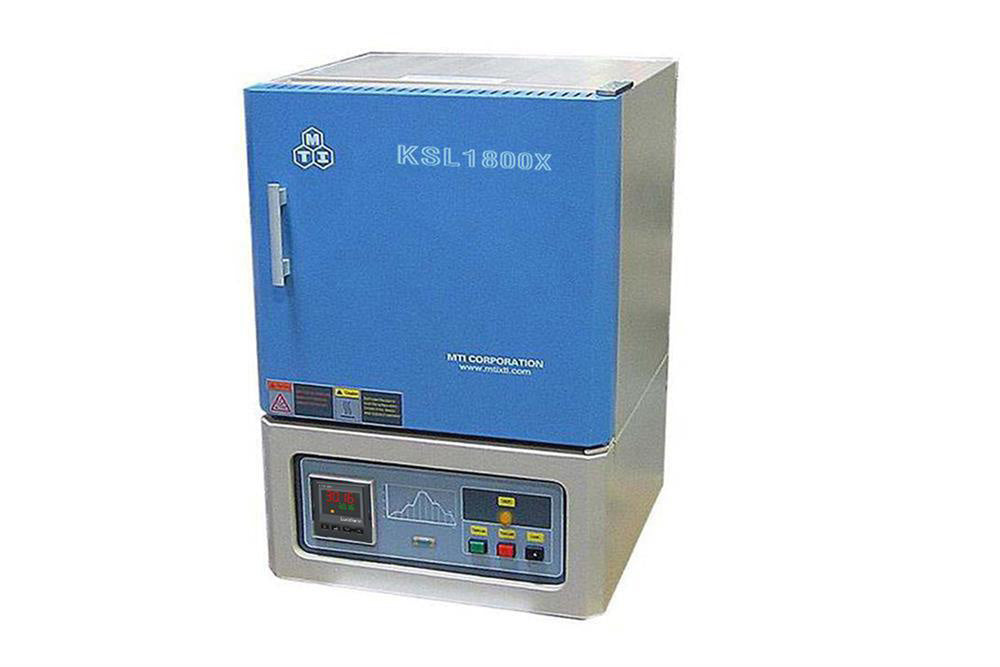

1800°C Bench-Top Muffle Furnace (6x6x6", 3.6L) w/ Kanthal Super-1900 Heating Elements - KSL-1800X-KA
  • 1800°C Bench-Top Muffle Furnace (6x6x6", 3.6L) w/ Kanthal Super-1900 Heating Elements - KSL-1800X-KA
  • 1800°C Bench-Top Muffle Furnace (6x6x6", 3.6L) w/ Kanthal Super-1900 Heating Elements - KSL-1800X-KA
  • 1800°C Bench-Top Muffle Furnace (6x6x6", 3.6L) w/ Kanthal Super-1900 Heating Elements - KSL-1800X-KA
1800°C Bench-Top Muffle Furnace (6x6x6", 3.6L) w/ Kanthal Super-1900 Heating Elements - KSL-1800X-KA

1800°C Bench-Top Muffle Furnace (6x6x6", 3.6L) w/ Kanthal Super-1900 Heating Elements - KSL-1800X-KA

SKU: ksl-1800x-ka

Price: RFQ

Specifications

 KSL-1800X-KA-UL is a bench-top ultra-high temperature muffle furnace built by Kanthal HT (1900 grade) MoSi2 heating elements with Max working temperature of 1800°C. It is ready to pass all safety tests worldwide. SPECIFICATIONS: Furnace Structure Double shell steel case with a cooling fan to keep outside surface cool High purity alumina fiber insulation for max. energy saving ZrO2 ceramic liner can stand at working temperature up to 2200°C All electric components are UL or Met recognized and ready to pass any safety test worldwide Power AC 208V-240V single phase, 50/60 Hz (50A air breaker required) 4.8 KW 10 feet long 10-3 AWG heavy duty UL approved power cable is included Extra length cable can be ordered by click the picture below The plug is not included. You can order from your local hardware store according to the female plug in your lab, or order from the link below (30A plug) (click here to order plugs from us) Working Temperature 1800° C (< 1 hour) 1750° C (continuous) Heating Rate 0~10°C / min (suggestion =< 5°C) Temperature Uniformity +/- 5°C over 120 mm (5") @ 1700°C +/- 2°C over 80 mm (3") @ 1700°C Heating Elements Kanthal Super-1900 Grade MoSi2, 4 pcs Thermocouple B-Type (Pt-Rh to Pt-Rh) with Alumina tube Temperature controller Eurotherm 3000 Series Programmable Temperature Controller. 1 program, 24 segments programmed with ramping, cooling, and dwelling steps Temperature Accuracy: ± 0.1ºC RS485 port is built-in for PC operation Operation software is included for PC operation. Brand new laptop with Microsoft Windows 10 with pre-installed software is available upon request. Compliance CE Certified NRTL or CSA certification is available at the extra cost Application Notes For longer service life, we recommend the heating rate not to exceed 10 °C /min. The cooling rate shall also not exceed 10 °C /min. This furnace lacks vacuum sealing , toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. Please click here to learn how to DIY a gas purging system. The refractory block must be inserted before closing the door. STANDARD PACKAGE: P/N Descriptions Quantity Picture KSL-1700X KSL-1800X-UL High-Temperature Muffle Furnace 1 set KSL7-01 Kanthal Super-1900 Grade MoSi2, 4 pcs, 4 pcs KSL7-02 B-Type Pt-Rh to Pt-Rh Thermocouples with Alumina Protection Tube 1 set KSL7-03 Al2O3 Sample Plate ($95.00/ea) 1 pcs KSL7-04 Al2O3 Furnace Door Block ($180.00/ea) 1 pcs KSL7-06 Crucible Clip ($25.00/ea) 1 pair KSL7-07 Operation Manual 1 set

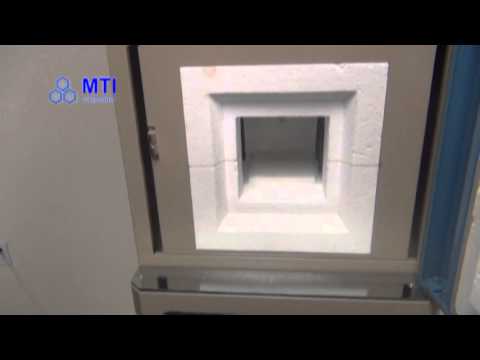

Furnace Structure
  • Double shell steel case with a cooling fan to keep outside surface cool
  • High purity alumina fiber insulation for max. energy saving
  • ZrO2 ceramic liner can stand at working temperature up to 2200°C
  • All electric components are UL or Met recognized and ready to pass any safety test worldwide
Power
  • AC 208V-240V single phase, 50/60 Hz (50A air breaker required)
  • 4.8 KW
  • 10 feet long 10-3 AWG heavy duty UL approved power cable is included
  • Extra length cable can be ordered by click the picture below
  • The plug is not included. You can order from your local hardware store according to the female plug in your lab, or order from the link below (30A plug)
Working Temperature
  • 1800° C (< 1 hour)
  • 1750° C (continuous)
Heating Rate
  • 0~10°C / min (suggestion =< 5°C)

Temperature Uniformity

  • +/- 5°C over 120 mm (5") @ 1700°C

  • +/- 2°C over 80 mm (3") @ 1700°C

Heating Elements

Kanthal Super-1900 Grade MoSi2, 4 pcs

Thermocouple

B-Type (Pt-Rh to Pt-Rh) with Alumina tube
Temperature controller
  • Eurotherm 3000 Series Programmable Temperature Controller.
  • 1 program, 24 segments programmed with ramping, cooling, and dwelling steps
  • Temperature Accuracy: ± 0.1ºC
  • RS485 port is built-in for PC operation
  • Operation software is included for PC operation.
  • Brand new laptop with Microsoft Windows 10 with pre-installed software is available upon request.
Compliance
  • CE Certified
  • NRTL or CSA certification is available at the extra cost
Application Notes
  • For longer service life, we recommend the heating rate not to exceed 10 °C /min.
  • The cooling rate shall also not exceed 10 °C /min.
  • This furnace lacks vacuum sealing, toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision.
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
  • Please click here to learn how to DIY a gas purging system.
  • The refractory block must be inserted before closing the door.
,
 P/N Descriptions  Quantity Picture
KSL-1700X  KSL-1800X-UL High-Temperature Muffle Furnace  1 set
 KSL7-01 Kanthal Super-1900 Grade MoSi2, 4 pcs,   4 pcs

 KSL7-02 B-Type Pt-Rh to Pt-Rh Thermocouples with Alumina Protection Tube  1 set


 KSL7-03  Al2O3 Sample Plate ($95.00/ea)  1 pcs

 KSL7-04  Al2O3 Furnace Door Block ($180.00/ea)  1 pcs

 KSL7-06  Crucible Clip ($25.00/ea)  1 pair

 KSL7-07 Operation Manual  1 set
