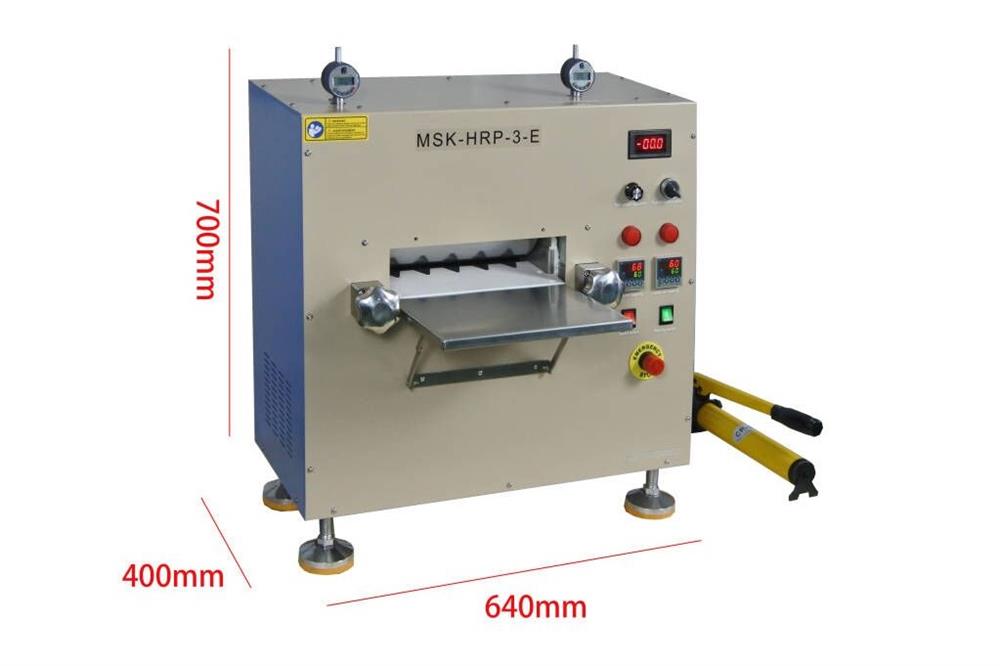

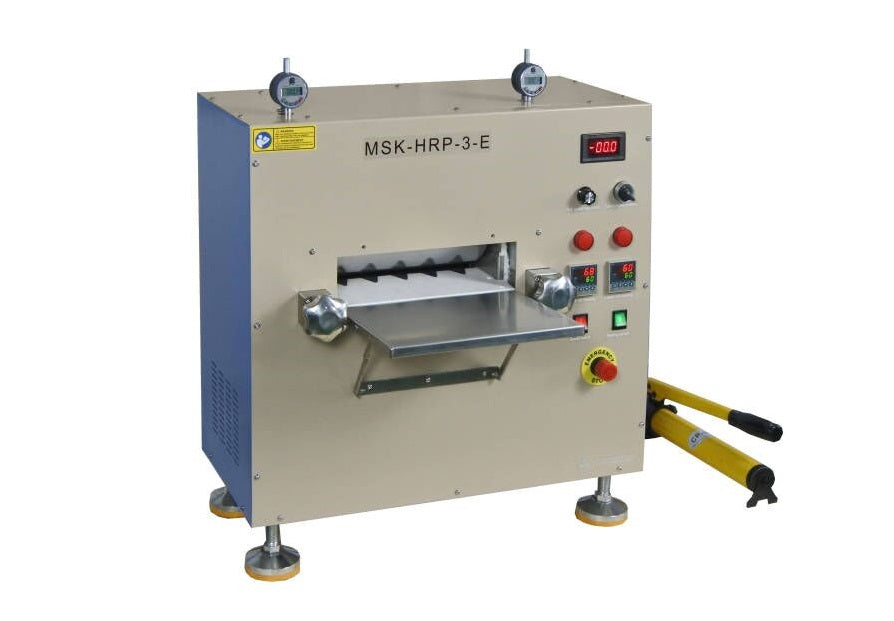

10 T Max. Pressure adjustable Cold Rolling Press (10"W x 8"D ) with Optional Hydraulic Pump - MSK-HRP-3-C

10 T Max. Pressure adjustable Cold Rolling Press (10"W x 8"D ) with Optional Hydraulic Pump - MSK-HRP-3-C

SKU: msk-hrp-3-c

Price: RFQ

Specifications

MSK-HRP-3-C is a cold rolling press with rollers of 250 mm width ( 10") and manual hydraulic cylinders that can apply pressing force up to 10 metric tons. An automatic hydraulic press is optional. Features Apply pressure up to 10 metric tones via a manual hydraulic pump An electric hydraulic pump is optional to keep constant pressure up to 10 metric tons Adjustable gap between rollers (0~6 mm) with micrometer thickness indication Rollers are made of high-quality tool steel with cr-plated Rolling direction selectable (back and forth), easy-to-return material Power AC 208 - 240 V single phase, 50/60 Hz Total: 2000 W 6 feet power cable is included, but the power plug is not included. Please click here to order the plug Rollers Size & Surface Hardness Diameter: 200 mm (8") Width: 250 mm ( 10") Effective rolling width: 200 mm Max. Linear Speed: 5 - 58 mm/sec adjustable Speed Display: 0 - 40 mm/sec (Actual Speed = Displayed Speed x 1.5) HRC 60-62 (Cr plated) Never roll materials with hardness > 50HRC Roller gap accuracy 0.01 mm by two digital micrometers Rolling Thickness 0~ 6 mm adjustable Compliance CE Certified UL, TUV or CSA certification is available upon request at extra cost Optional You may order an electric hydraulic pump to keep constant pressure (Pic. 1-2) Please consider the R2R rolling and laminating device below for Roll to Roll pressing. (Click pic 3 - 4 to order) Pic. 1 Pic. 2 Pic. 3 Pc. 4 Application Notes Never roll materials with hardness > 50HRC Multi-step thickness calendering needed: While calendering the sample sheet, make each calendering decrement of 0.02mm compared to the sheet's original thickness. Clean the roller surface for each rolling and Use acetone to clean and lubricate when not in use to avoid corrosion

Features
  • Apply pressure up to 10 metric tones via a manual hydraulic pump
  • An electric hydraulic pump is optional to keep constant pressure up to 10 metric tons
  • Adjustable gap between rollers (0~6 mm) with micrometer thickness indication
  • Rollers are made of high-quality tool steel with cr-plated
  • Rolling direction selectable (back and forth), easy-to-return material
Power

Rollers Size & Surface Hardness

  • Diameter: 200 mm (8")
  • Width: 250 mm ( 10")
  • Effective rolling width: 200 mm Max.
  • Linear Speed: 5 - 58 mm/sec adjustable
  • Speed Display: 0 - 40 mm/sec (Actual Speed = Displayed Speed x 1.5)
  • HRC 60-62 (Cr plated)
  • Never roll materials with hardness > 50HRC

Roller gap accuracy

  • 0.01 mm by two digital micrometers

Rolling Thickness

  • 0~ 6 mm adjustable
Compliance
  • CE Certified
  • UL, TUV or CSA certification is available upon request at extra cost
Optional

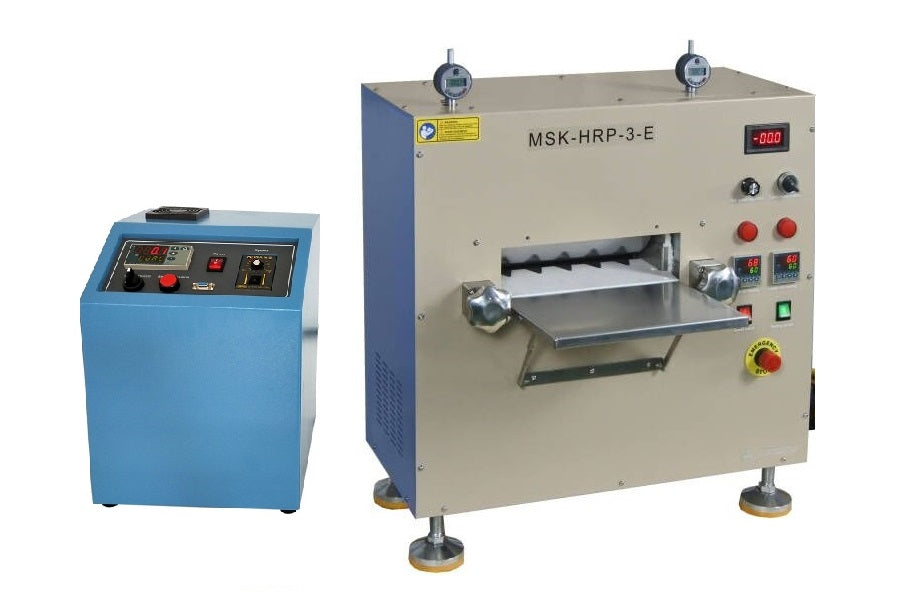

  • You may order an electric hydraulic pump to keep constant pressure (Pic. 1-2)

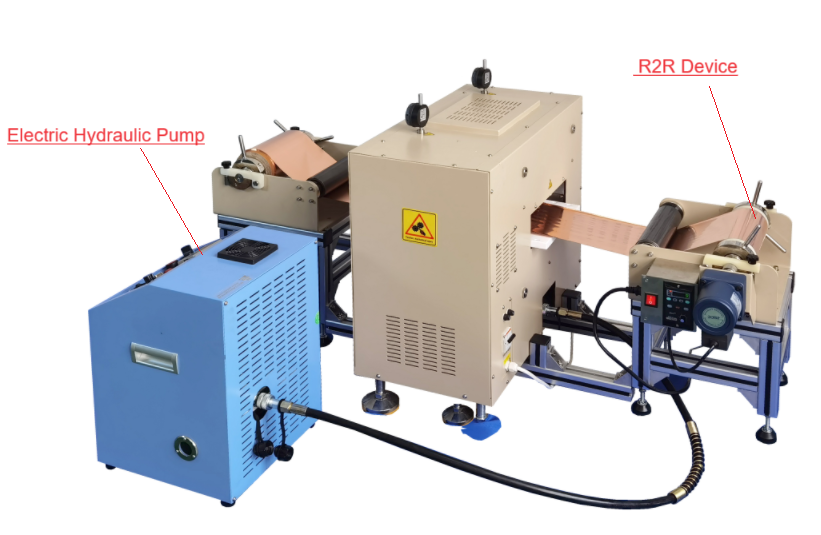

  • Please consider the R2R rolling and laminating device below for Roll to Roll pressing. (Click pic 3 - 4 to order)
Pic. 1  Pic. 2 Pic. 3 Pc. 4
Application Notes
  • Never roll materials with hardness > 50HRC
  • Multi-step thickness calendering needed: While calendering the sample sheet, make each calendering decrement of 0.02mm compared to the sheet's original thickness.
  • Clean the roller surface for each rolling and Use acetone to clean and lubricate when not in use to avoid corrosion
