500°C & 3 Bar Max. Rotary Ball Milling (500ml) with Gas Flow Function - MSK-SFM-11-H500
  • 500°C & 3 Bar Max. Rotary Ball Milling (500ml) with Gas Flow Function - MSK-SFM-11-H500
  • 500°C & 3 Bar Max. Rotary Ball Milling (500ml) with Gas Flow Function - MSK-SFM-11-H500
500°C & 3 Bar Max. Rotary Ball Milling (500ml) with Gas Flow Function - MSK-SFM-11-H500

500°C & 3 Bar Max. Rotary Ball Milling (500ml) with Gas Flow Function - MSK-SFM-11-H500

SKU: msk-sfm-11-h500

Price: RFQ

Specifications

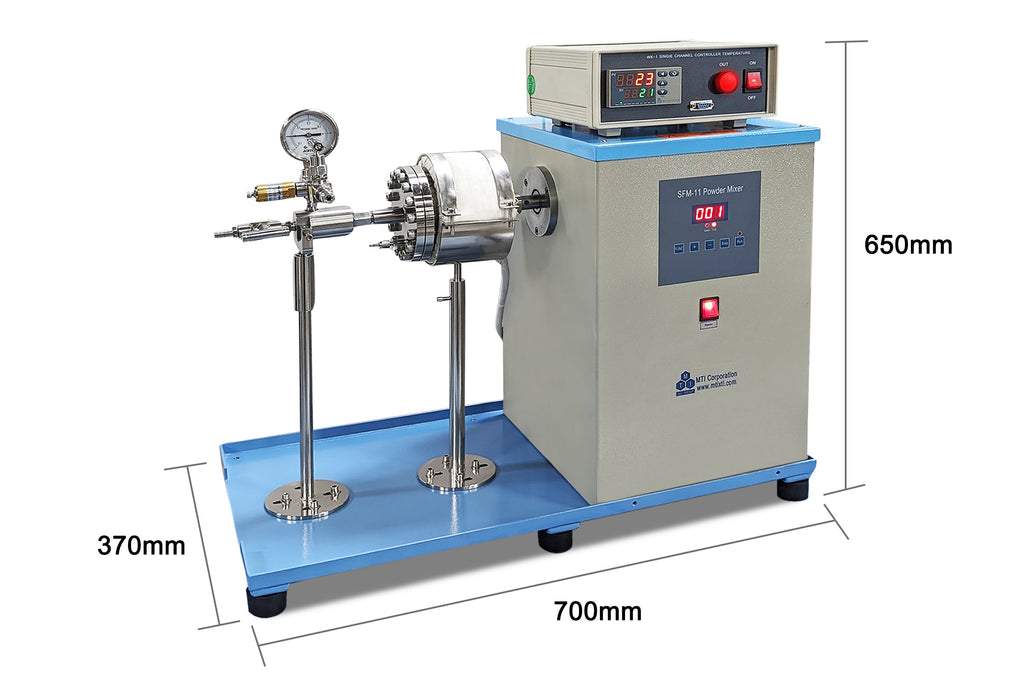

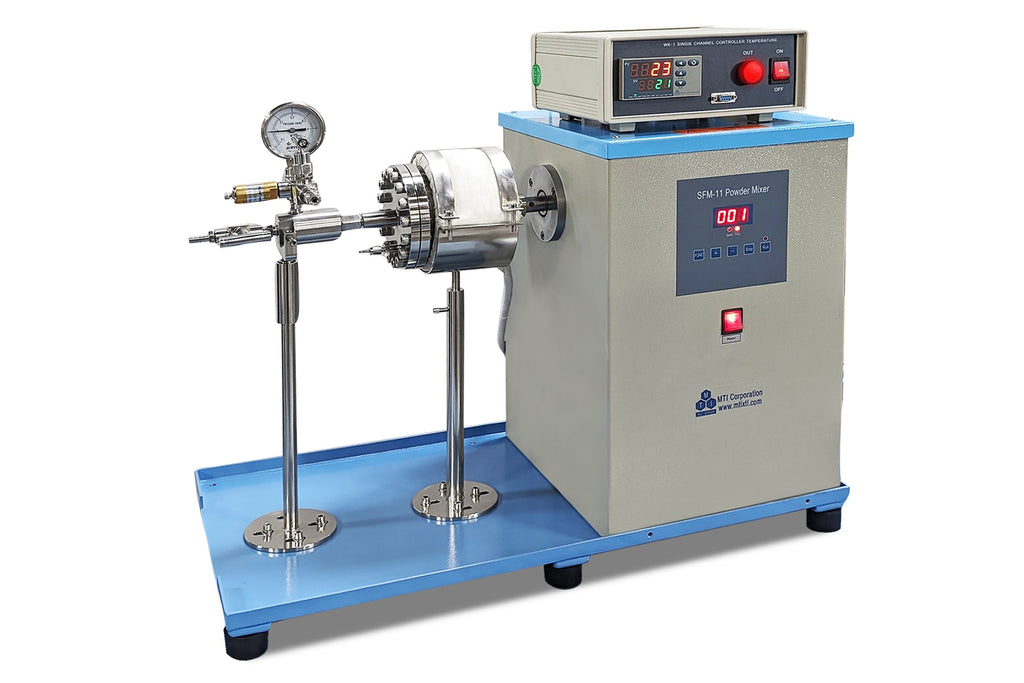

 MSK-SFM-11-H500 is a high-temperature rotary ball with gas flowing function up to 500oC and 3 bar pressure. The high-temperature ball mill can be used for the Mechanochemical activation of catalysts for CO2 methanation. For more applications using a ball mill, please review the article at https://doi.org/10.1002/anie.201810902

Rotary Device
  • Input power: 110- 240V AC to 24V DC power adapter for universal using
  • Power consumption: 250W Max.
  • Single-axis rotation with speed from 20 to 90 rpm
  • Digital timer setting 1 - 900 minutes
  • The mixer can be used inside the glovebox under Ar or N2 gas






Milling Jar
  • 500 ml milling jar with gas inlet and outlet valves and swive support is connected to the rotation axis
  • The milling jar is made of SS304 with dimensions: 80 mm ID x 100mm ( ~500 ml)
  • 1/4" gas inlet and outlet with needle valve and a pressure gauge is ar included
  • One swiving support is connected to the rotary jar, which can keep the gas-flowing fixture without moving during the rotation of the jar.
  • Max. working temperature: 500oC
  • Max pressure rating: 3 bar for positive pressure and 10-2 torr for vacuum
Temperature Control
  • The milling jar is inserted into a heating jacket ( furnace ) with a digital temperature controller
  • PID digital temperature controllers with 30 segment programmable with +/- 1°C accuracy
  • Software for controlling temperature and displaying pressure is available upon request at the extra cost
Milling Ball
  • 500g 3 mm dia. YSZ milling ball is included
  • Click the picture below to choose various milling ball
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost.
