Furnace Construction
|
- Double shell casing with three cooling fans
- High purity Alumina fibrous insulation for max. energy saving
- Gear DC motor drives Alunima tube with variable speed 0 - 10 RPM
- The furnace can be tilted up to 20o by electricity.

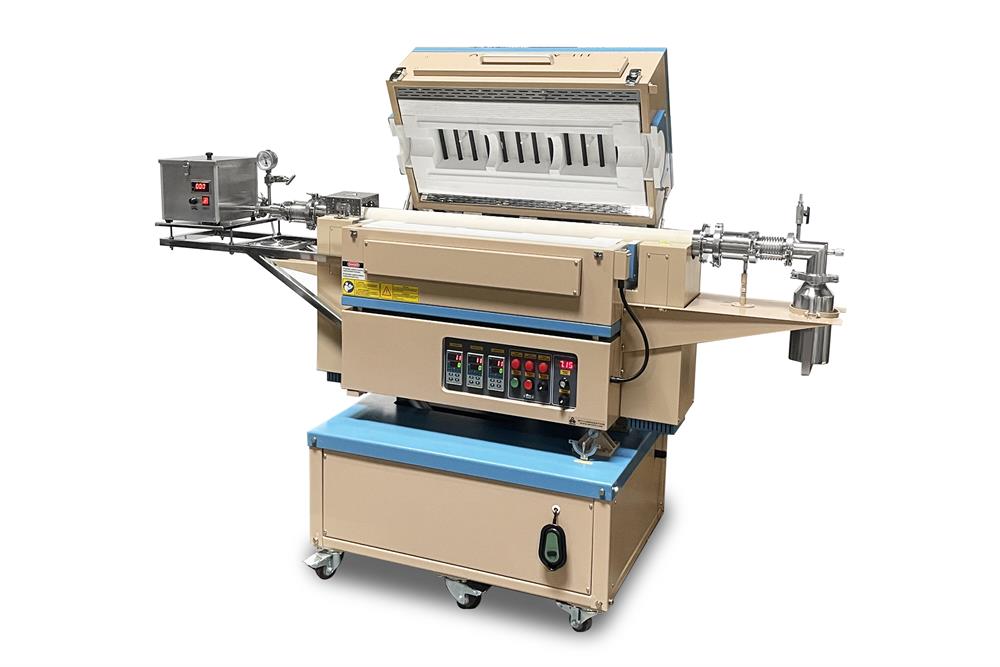

- The split cover enables faster cooling and easy operation
|
|
Automatic Feeding Furnace
|

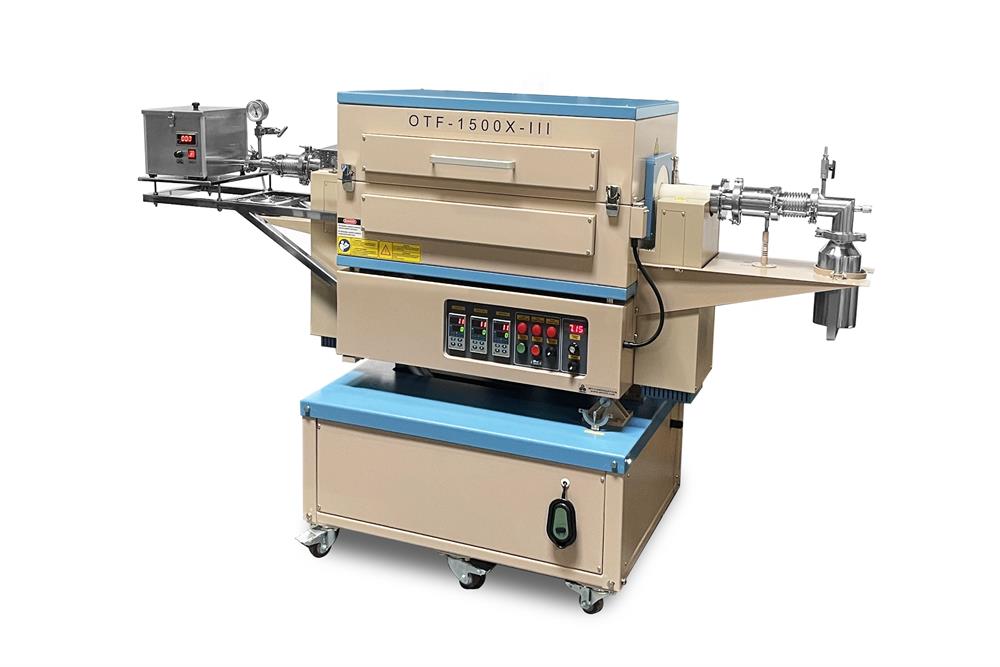

- The compact automatic powder feeder is mounted on the tiltable furnace via air-tight swivel assembly. (Pic 1)
- The proper connection ensures a uniform feeding rate and the tube rotation undisturbed under a controlled atmosphere. (Pic 2-3)
- Feed rate adjustable by the potentiometer knob, 97cm^3/min max.
- One stainless steel tank ( 2 Liter Capacity ) is installed on the other end of the processing tube to gather the fired powder without exposure to air.
|
|
Heating Zone Length
|
- Three Heating Zones: each zone length 8" (200 mm), total 24" (600 mm) heating zone
- Constant temperature zone: 200 mm within +/- 1oC if two zones at the same temperature.
|
|
Processing Tube & Sealing Flange
|
- Standard: Alumina Ceramic processing tube, please click the pics below for details:
 Two Mixing Blades  Tube Dimension
- One pair of 60mm SS sealing flange with rotatable gas connector needle valves are included for immediate use
-
Optional: Fuse Quartz processing tube,
-
 Four Mixing Blade  Tube Dimension
|
| Max. Working Temperature |
1400°C for continuously 1500 °C Max for < 1 hours |
|
Temperature Controllers
&
Thermocouple
|
Three PID digital temperature controllers with 30 segment programmable, +/- 1°C
Three S-type with high-temperature tolerance (220°C) connector
|
Heating Elements
|
|
|
Tube Rotating Speed
|
0 - 10 RPM variable
|
|

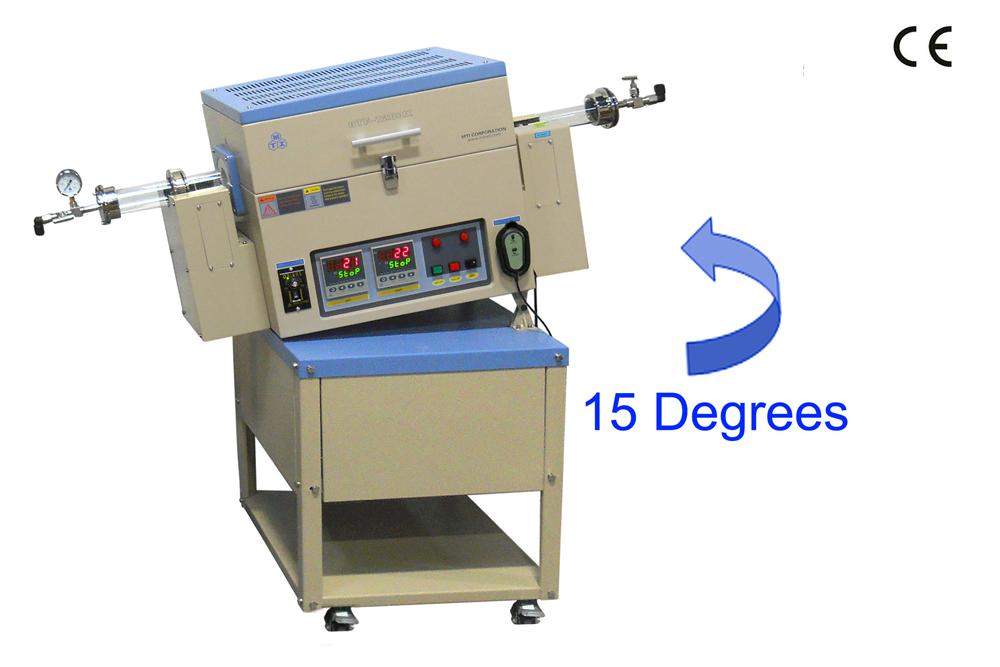

Furnace Tilt Angle
|
-5 - 20°
|
|
Chamber Pressure
|
4.5x10-2 torr (<0.1mtorr/s leaking rate with all valves closed to maximize airtightness of the tube chamber)
|
|
Power
|
Furnace: 11 KW Max
Feeder: 200W Max
|
|
Voltage
|
Furnace: 208 - 240V single phase (60 A Breaker required)
Feeder: 208 - 240V single phase
|
| Warranty |
One-year limited warranty (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty, please order the replacement at related products below.) |
Laptop, software & WiFi Control (Optional)

|
- Brand new laptop with Microsoft Windows 10 for immediate use.
-
Labview Based Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces.
- A wireless remote control provides up to 300 meters of operating range.
|
| Furnace Compliance |
- CE Certified
- NRTL (UL61010) or CSA certification is available at extra cost.
|
