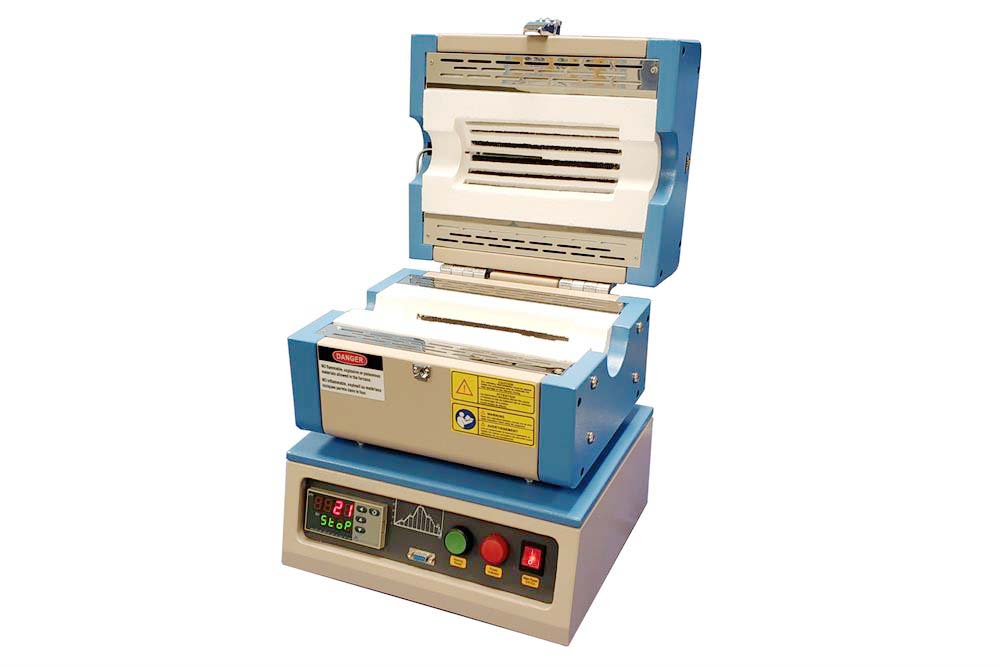

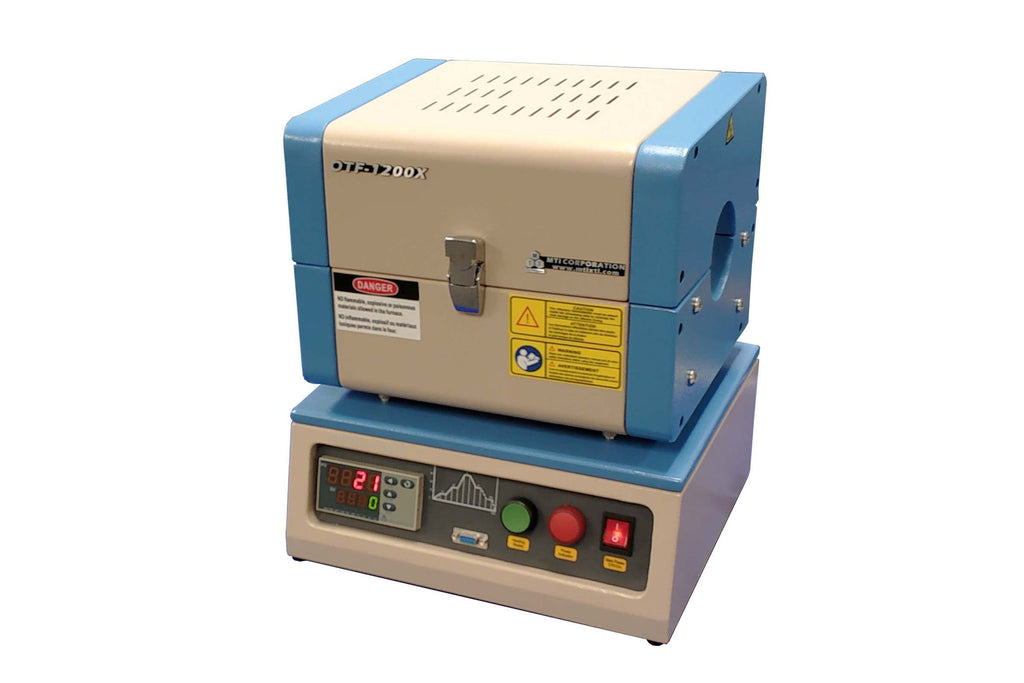

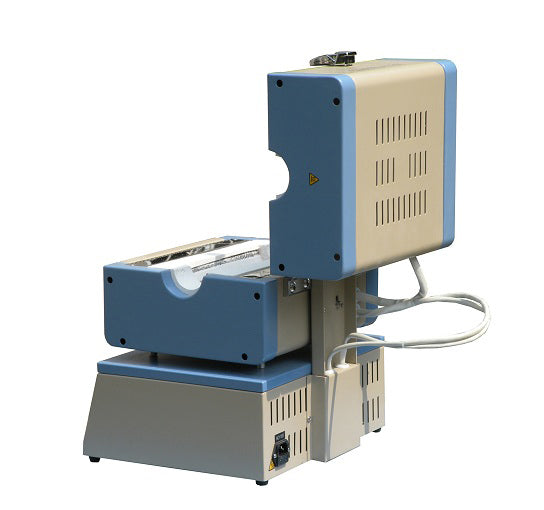

1-2" 1250C Compact Split Tube Furnace with 8" Heating Zone & Programmable Controller - OTF-1200X-S-NT-LD
  • 1-2" 1250C Compact Split Tube Furnace with 8" Heating Zone & Programmable Controller - OTF-1200X-S-NT-LD
  • 1-2" 1250C Compact Split Tube Furnace with 8" Heating Zone & Programmable Controller - OTF-1200X-S-NT-LD
  • 1-2" 1250C Compact Split Tube Furnace with 8" Heating Zone & Programmable Controller - OTF-1200X-S-NT-LD
  • 1-2" 1250C Compact Split Tube Furnace with 8" Heating Zone & Programmable Controller - OTF-1200X-S-NT-LD
1-2" 1250C Compact Split Tube Furnace with 8" Heating Zone & Programmable Controller - OTF-1200X-S-NT-LD

1-2" 1250C Compact Split Tube Furnace with 8" Heating Zone & Programmable Controller - OTF-1200X-S-NT-LD

SKU: otf1200xs-nt

Price: RFQ

Specifications

 OTF-1200X-S-NT is a compact and energy-saving (1200W power consumption) split tube furnace with a max. the working temperature of 1250°C. The built-in precision temperature controller can provide up to 30 segments of heating and cooling steps with +/- 1 °C accuracy. The furnace does not include a working tube. You may order a 2" quartz tube, vacuum flange, and refractory ceramic blocks based on your application needs. SPECIFICATIONS Furnace Structure Double-layer steel structure with air cooling. High-purity Al2O3 fibrous insulation with Max. energy saving. Split cover for easy tube replacement. Adopts 1" or 2" O.D processing tubes. Heating module is replaceable (Pic. 4) Power 110VAC (Single Phase 220VAC can be selected in the options bar) 1.2 KW Continuous Temperature v.s. Processing Tube 1200°C (continuous) with Mullite tube 1-2 " dia 1100°C (continuous) with Quartz tube 1- 2" dia Please click Pic below to choose the processing tube (Length > 450 mm) If using a 25mm O.D tube, please also get an adaptor Quartz tube Mullite tube Vacuum Flange Heating Zone length 8" (200mm), single zone. The following picture shows the temp. distribution across the heating zone, please click to enlarge. Constant Temp. Zone: 2.3" (60mm) (+/-1°C) @ 900 °C Temperature Controller PID automatic control with 30 steps programmable. Built-in Over Temperature and Thermocouple Failure Protection Max. Heating Rate: <= 10 °C/min Temperature Accuracy +/- 1°C Dimensions With lid closed: 350mm×390mm×400mm (L x W x H) With lid open: 350mm×440mm×560mm (L x W x H) Net Weight 18 Kg Shipping Package Size 40 x 28 x 33 inches (W x L x H) Shipping Weight 100 lbs Warranty One-year limited warranty with lifetime support Laptop, software & WiFi Control (Optional) Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use. Labview-Based Temperature Control System ( EQ-MTS01 ) enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces. Compliance CE Certified and UL 6010 standard ready NRTL / CSA Certification is available upon request, additional charges will apply Application Notes & Warning Tube furnaces with quartz tubes are designed for using under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa. Vacuum pressures may only be safely used up to 1000°CThe flow rate for gases should be limited to<200 SCCM (or 200ml/min) for reducing thermal shocks to the tube A ttention : A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator. How to set up a ceramic tube and vacuum flange for MTI tube furnaces . For safety, you may consider putting the small tube furnace inside a fume hood. ( click picture left to see )




Furnace Structure
  • Double-layer steel structure with air cooling.
  • High-purity Al2O3 fibrous insulation with Max. energy saving.
  • Split cover for easy tube replacement.
  • Adopts 1" or 2" O.D processing tubes.

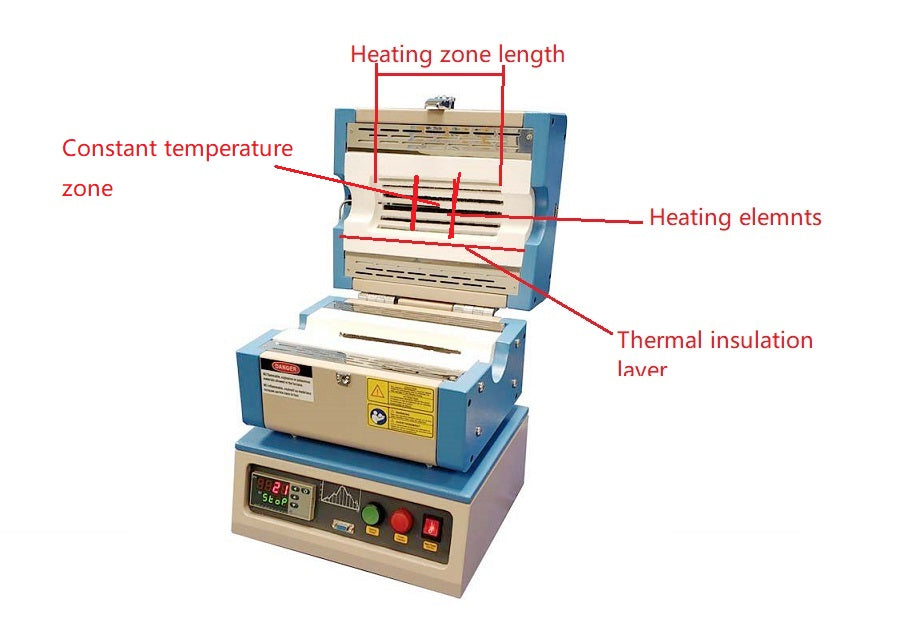

  • Heating module is replaceable (Pic. 4)
Power
  • 110VAC (Single Phase 220VAC can be selected in the options bar)
  • 1.2 KW
Continuous Temperature

v.s.

Processing Tube
  • 1200°C (continuous) with Mullite tube 1-2 " dia
  • 1100°C (continuous) with Quartz tube 1- 2" dia
  • Please click Pic below to choose the processing tube (Length > 450 mm)
  • If using a 25mm O.D tube, please also get an adaptor
Quartz Tubes Quartz tube Mullite Tubes Mullite tube Stainless Steel Sealing Flange Assembly for 1Vacuum Flange
Heating Zone length
  • 8" (200mm), single zone. The following picture shows the temp. distribution across the heating zone, please click to enlarge.
  • Constant Temp. Zone: 2.3" (60mm) (+/-1°C) @ 900 °C
Temperature Controller
  • PID automatic control with 30 steps programmable.
  • Built-in Over Temperature and Thermocouple Failure Protection
  • Max. Heating Rate: <= 10 °C/min
  • Temperature Accuracy +/- 1°C
Dimensions

With lid closed: 350mm×390mm×400mm (L x W x H)
With lid open: 350mm×440mm×560mm (L x W x H)
Net Weight
18 Kg
Shipping Package Size
40 x 28 x 33 inches (W x L x H)
Shipping Weight
100 lbs
Warranty
 One-year limited warranty with lifetime support
Laptop, software & WiFi Control (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview-Based Temperature Control System (EQ-MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
Compliance
  • CE Certified and UL 6010 standard ready
  • NRTL / CSA Certification is available upon request, additional charges will apply
Application Notes & Warning
  • Tube furnaces with quartz tubes are designed for using under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa. Vacuum pressures may only be safely used up to 1000°CThe flow rate for gases should be limited to<200 SCCM (or 200ml/min) for reducing thermal shocks to the tube
  • Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
  • How to set up a ceramic tube and vacuum flange for MTI tube furnaces.
  • For safety, you may consider putting the small tube furnace inside a fume hood. ( click picture left to see )
