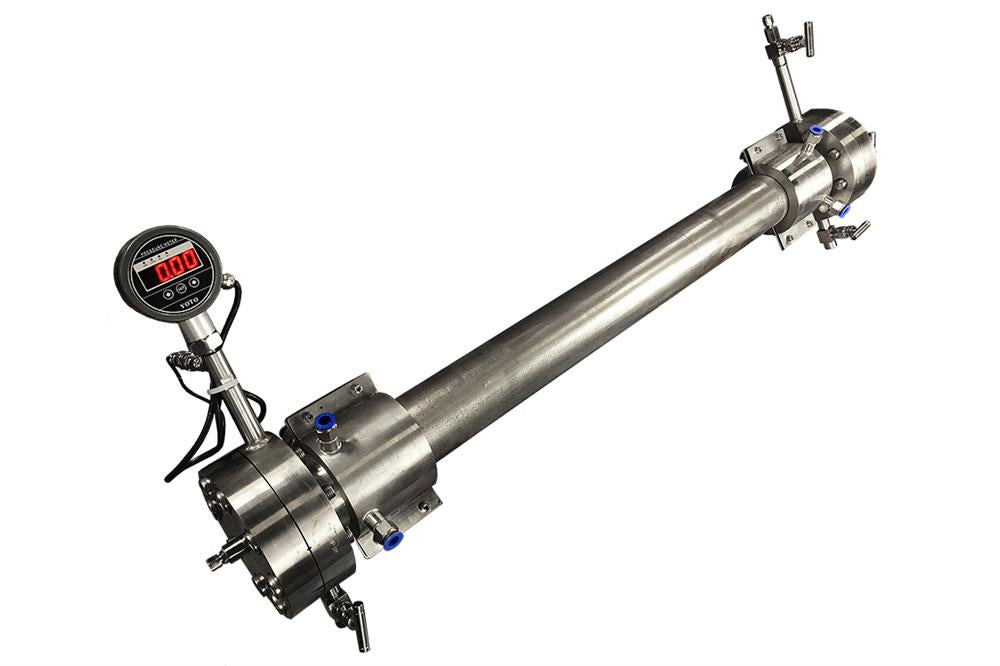

Hi-Pressure Super Alloy Tube: 85ODx50 IDx1000L (mm) w/ Flange, 1100°C Max. - Tube-HP-85-50-1000

• Please view "Isotropic round-wire multifilament cuprate superconductor for generation of magnetic fields above 30 TMat-2014-13-4-Larbalestier-Isotropic round-wire" published by NATURE MATERIAL 3887, 9 MARCH 2014, in which an MTI High-Pressure furnace was used.

Ni-based superalloy tube vessel (85 OD x 50 ID x 1000 L mm).  It can be used under ultra-highly oxidizing and inert gas atmosphere up to 1100°C to process special compounds. It is a consumable part of OTF-1200X-HP-III, which is a compact HIP (hot isostatic pressure) furnace for researching the new generation of materials at a low cost.

Tube Dimensions	O.D. 85 mm      I.D. 50mm     Length: 1000mm
Inside Diameter:	50 mm
Tube Length:	1000 mm
Max.Working Temperature without Load:	1100 °C
Working Pressure & Temperature:	Maximum pressure inside the tube Heating temperature Max. 1958 PSI  (13.5Mpa)    (140 Bar) 800°C Max. 1189 PSI  (8.2 Mpa)    (80 Bar) 900°C Max. 595  PSI  (4.1 Mpa)     (40 Bar) 1000°C Max. 362  PSI  (2.5 Mpa)     (25 Bar) 1100°C (for <1hr) Warning:  Please set up a pressure alarm point in the digital pressure display before the operation Must install a pressure regulator on the gas cylinder to increase pressure gradually. Service-life design for 2,000 hours at 800oC. The high-pressure vessel is a consumable part, please order replacement once found deformation

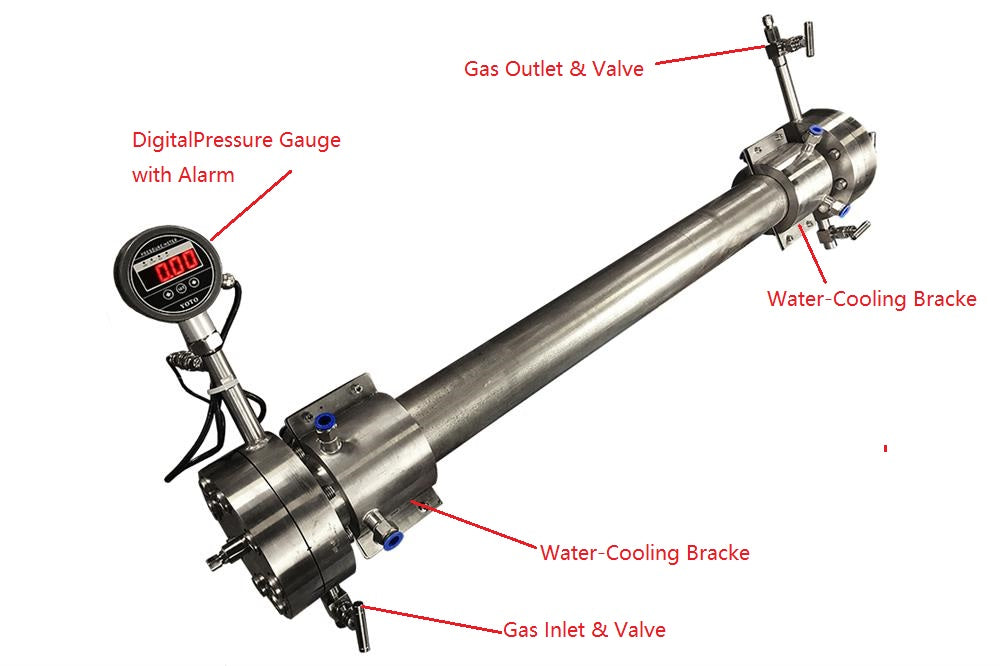

Pressure Gauge	A digital Vacuum/Pressure Gauge is included with alarm function Pressure Limits for gauge: -100 Kp  to 0  and to 30MPa (Vacuum to Atmosphere to Positive Gas Pressure)
Installation:
Water Cooling	There are four water-cooling bracket blocks, two on each side. Two water cooling ports on each block. Illustration of linking all four half-water cooling blocks in series.
Option Water Cilller	Must have a water chiller while heating this tube, or it will cause damage to the flanges. A water chiller is required, but not included, please click to order at extra cost.
Recommended Optional Tool	Please use a torque wrench to make sure the equal forces to be applied to the bolts when installing the CF flange in MTI high-pressure furnace. Hex Bit Socket M14 of Torque wrench for CF flange installation CFTQ-M14

,
