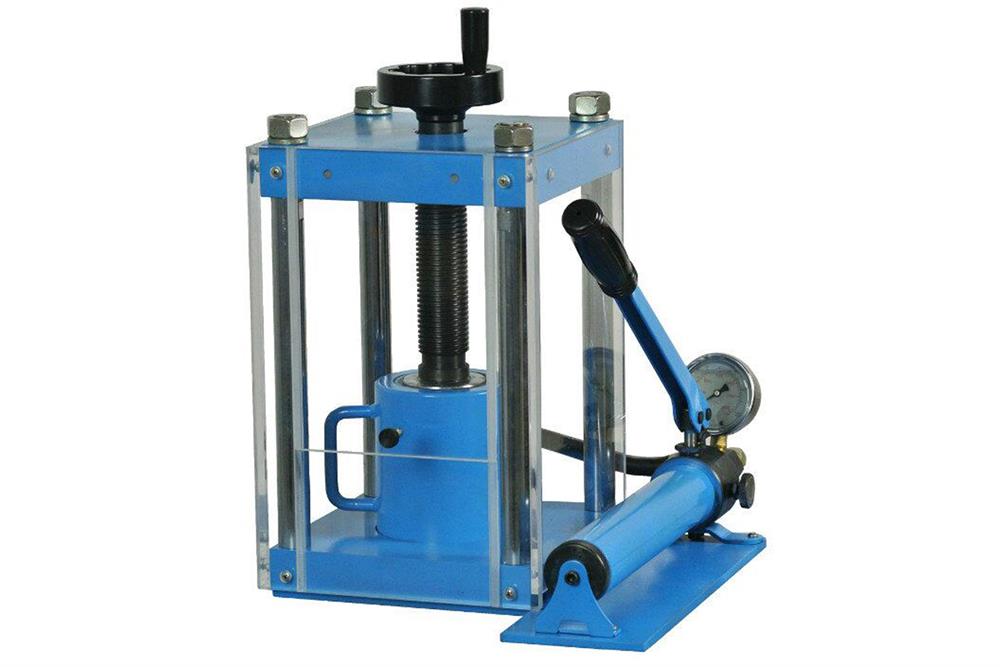

24T Lab Press with Separable Hydraulic Pump & Safety Cover - YLJ-24TS

YLJ-24TS is a desktop dry pressing machine up to 24 metric tons for materials/chemistry research laboratories to prepare the compound ceramic sample.YLJ-24TS has a transparent protection shield and separate manual hydraulic pump, which makes it easy to repair and replace.

SPECIFICATIONS:

Max. Pressure	24 Metric Ton The pressure gauge is built-in
Gauge Pressure Value to Force Conversion	Gauge Displayed Pressure Value (Mpa) 5 10 15 20 25 30 35 40 45 Actual Force Applied to the Hydraulic Cylinder (Ton) 3 6 9 11 14 17 19 22 24 Displayed pressure value to actual applied force conversion: 1 MPa = ~ 0.55 Ton The actual force applied to the vessel cylinder (Ton) is equal to the force applied to your working piece For calculating the actual pressure (Mpa) applied to your working piece, please follow the equations below: P = T x g x 10/ (πr^2) P: pressure (Mpa) applied to your working piece T: force (metric ton) applied to the pressure vessel cylinder g: standard gravity. g ≈ 9.8 m/s2 π: ~3.14 r: radius (cm) of the pressure vessel (1.5 cm) *1000 Kg = 1 Metric Ton; 1 Mpa = 10 Kg/cm2
Hydraulic Machine	24T Max.  The manual hydraulic pump is separated from the cylinder for safe operation
Operation Temperature	10 - 40°C

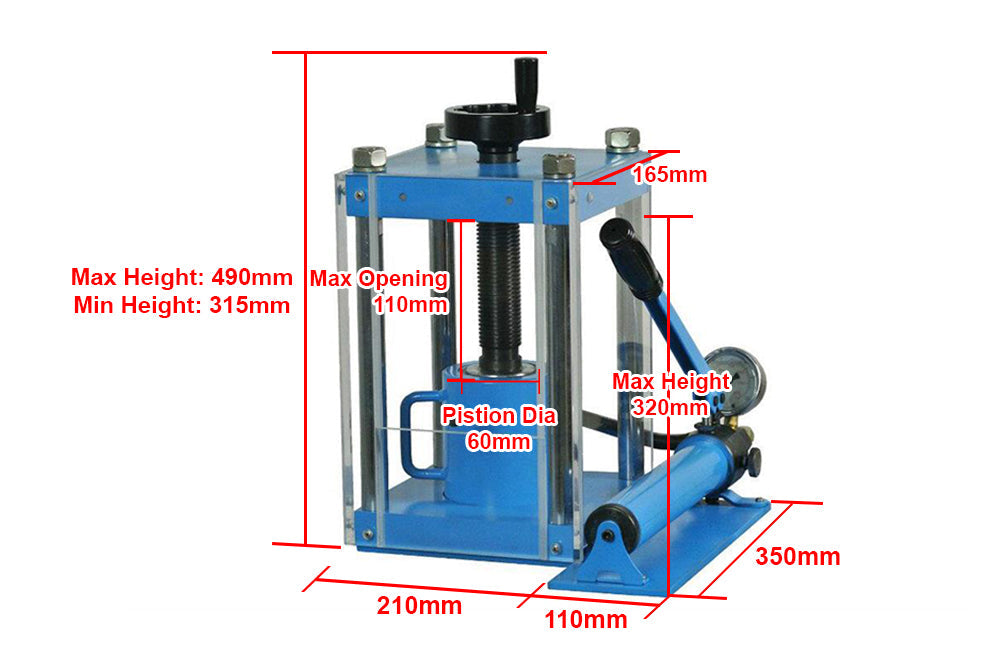

Bottom Cylinder Traveling Distance	20 mm maximum. The bottom cylinder (piston) is shown in the illustration in the dimension section.
Pressing Die (Optional)	Pressing dies with various diameters are available upon request at extra cost
Optional	Electric pump with programmable pressure control is available upon request The manual pump can be replaced by the electric pump which has programmable pressure control to use inside glovebox( Feedthrough for manual pump is not available )
Compliance	CE Certified
Application Notes	The pressing die cannot be used for pressing powder with particle size < 30 microns. Small particles may slip into the gap between the pushing rod and steel sleeve and cause damages to the sleeve during the compression. Ball mill and sieve the powder and apply only the 32~75 microns powder to the pressing die to avoid damages. Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to separate the 32~75 microns particles from the powder clumps. Please clean the mold via ethanol after the completion of each experiment. Do not raise the bottom cylinder (piston) more than its maximum traveling distance. (25 mm)   Warning: Customers must always wear protective goggles during operation !!!
