1700°C Rocking Tube Furnace with 60mm OD Alumina Processing Tube - GSL-1700X-RC

1700°C Rocking Tube Furnace with 60mm OD Alumina Processing Tube - GSL-1700X-RC

SKU: gsl-1700x-rc

Price: RFQ

Specifications

GSL-1700X-RC is a high-temperature rocking tube furnace up to 1700ºC. The processing tube is made of a 2" ID alumina tube. The rocking mechanism can drive the furnace swing +/- 45º from right to left at variable speed. It is designed for processing materials under controlled atmosphere gas at high temperatures to achieve more uniform composition. SPECIFICATIONS Furnace Double-layer steel casing with air cooling to keep the case temperature < 60 o C. High purity fibrous alumina chamber with max energy saving. Alumina tube, vacuum flange, gauge & valves are included. 1800 grade MoSi2 Heating Elements allows 1700C operation Precision temperature control with +/- 1 o C accuracy Power AC 208 - 240V 50/60Hz, single-phase 3.0 KW (20A breaker required) Working Temperature Max. Temperature: 1700 °C (< 2 hrs) Continuous working temperature: 1600°C Max. Heating Rate: 10°C /min Temperature Control (optional Eurotherm) One FA-YD518P-AG temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy THE Default RS485 PC port for PC operation and operation software is included. You may upgrade the temperature controller to the Eurotherm 3000 Series Temperature Controller with +/- 0.1 ºC accuracy. Heating Zone Heating Zone Length: 12" (300mm) Constant Temperature Zone:  (80mm) within +/- 1ºC Processing Tube Hight purity ( >99/5%) alumina tube. 54 mm (I.D) x 60 mm (O.D) x 800 mm length. The fibrous ceramic tube blocks are included for blocking heat radiation and fixing the crucible without moving. We can make customized the length of blocks for you like the below picture right. Vacuum Flange Two choices of stainless steel flange with vacuum gauge and valves 2" default flange with 1/4'' Bard fittings, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum portclick bottom right picture to see details ) Both flanges may change into 3/8" barbed hose fittings You may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting x 1/4" BSPP Male Vacuum Pressure 50 m-torr can be achieved by a mechanical pump 10^-5 torr can be reached by turbopump Please click the picture below to order a vacuum pump. Rocking Station Gear DC motor, 150W drives the furnace in the center LCD digital display with adjustable speed from 10 - 70 RPM Rocking angle: +/- 45º Max. adjustable. (90º is available upon request ) Rocking frequency: 0.1 - 1 time per minute adjustable Rocking Timer: 1-1199 min or continuous running Compliance CE Certified NRTL (UL61010) or CSA certification is available at extra cost

Furnace

  • Double-layer steel casing with air cooling to keep the case temperature < 60oC.
  • High purity fibrous alumina chamber with max energy saving.
  • Alumina tube, vacuum flange, gauge & valves are included.
  • 1800 grade MoSi2 Heating Elements allows 1700C operation
  • Precision temperature control with +/- 1oC accuracy

Power

  • AC 208 - 240V 50/60Hz, single-phase
  • 3.0 KW (20A breaker required)


Working Temperature

  • Max. Temperature: 1700 °C (< 2 hrs)
  • Continuous working temperature: 1600°C
  • Max. Heating Rate: 10°C /min

Temperature Control



(optional Eurotherm)

  • One FA-YD518P-AG temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function

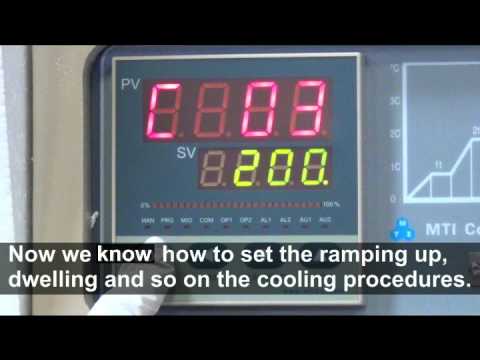

  • 30 segments programmed with ramping, cooling and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • THE Default RS485 PC port for PC operation and operation software is included.
  • You may upgrade the temperature controller to the Eurotherm 3000 Series Temperature Controller with +/- 0.1 ºC accuracy.

Heating Zone
  • Heating Zone Length: 12" (300mm)
  • Constant Temperature Zone:  (80mm) within +/- 1ºC

Processing Tube
  • Hight purity ( >99/5%) alumina tube.
  • 54 mm (I.D) x 60 mm (O.D) x 800 mm length.

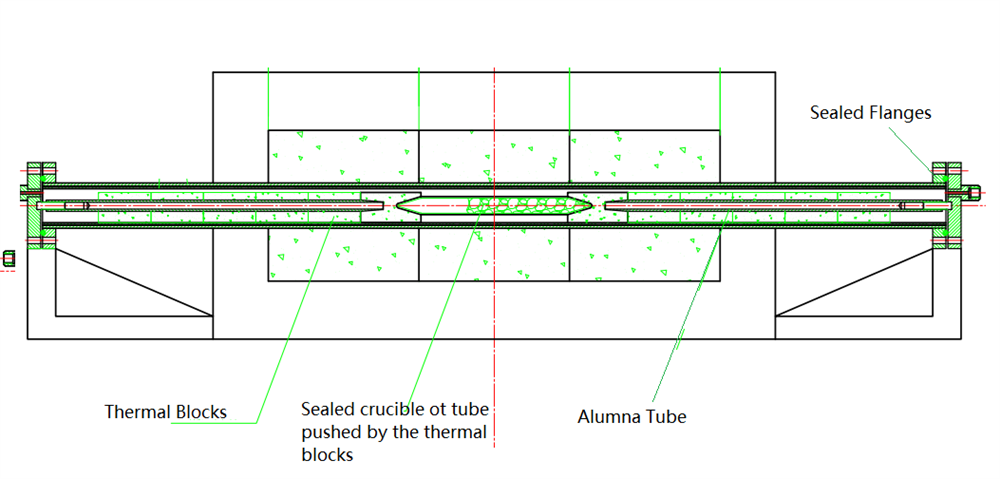

  • The fibrous ceramic tube blocks are included for blocking heat radiation and fixing the crucible without moving. We can make customized the length of blocks for you like the below picture right.

Vacuum Flange


  • Two choices of stainless steel flange with vacuum gauge and valves
  • 2" default flange with 1/4'' Bard fittings, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum portclick bottom right picture to see details )
  • Both flanges may change into 3/8" barbed hose fittings
  • You may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting x 1/4" BSPP Male

Vacuum Pressure

  • 50 m-torr can be achieved by a mechanical pump
  • 10^-5 torr can be reached by turbopump

Please click the picture below to order a vacuum pump.

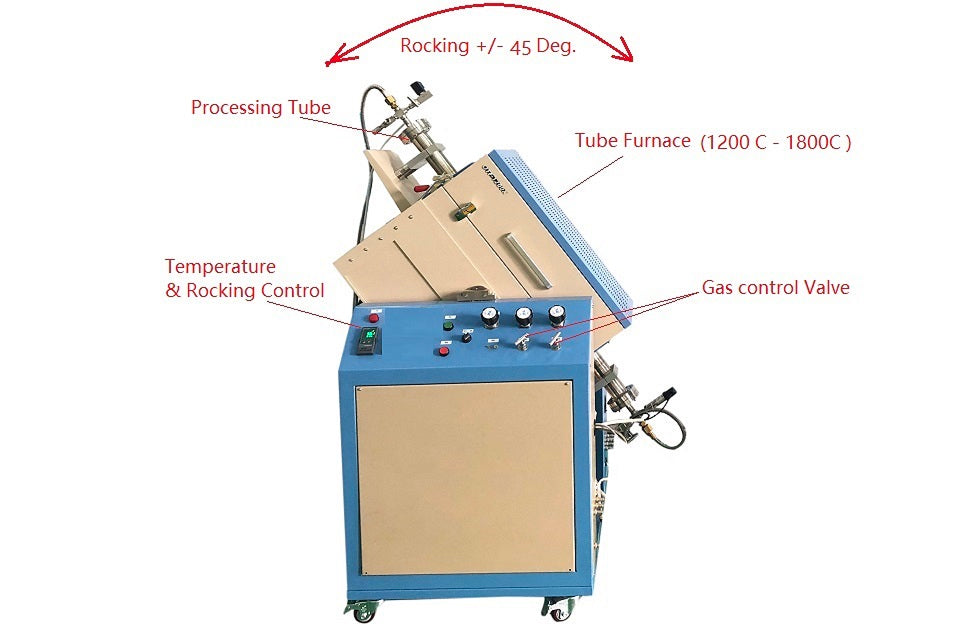

Rocking Station

  • Gear DC motor, 150W drives the furnace in the center
  • LCD digital display with adjustable speed from 10 - 70 RPM
  • Rocking angle: +/- 45º Max. adjustable. (90º is available upon request )
  • Rocking frequency: 0.1 - 1 time per minute adjustable
  • Rocking Timer: 1-1199 min or continuous running
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available at extra cost
