1500°C Hybrid Furnace: Box (6 x6"x 6") and Mullite Tube (2" top) with Flange - KSL-1500X-H
  • 1500°C Hybrid Furnace: Box (6 x6"x 6") and Mullite Tube (2" top) with Flange - KSL-1500X-H
  • 1500°C Hybrid Furnace: Box (6 x6"x 6") and Mullite Tube (2" top) with Flange - KSL-1500X-H
1500°C Hybrid Furnace: Box (6 x6"x 6") and Mullite Tube (2" top) with Flange - KSL-1500X-H

1500°C Hybrid Furnace: Box (6 x6"x 6") and Mullite Tube (2" top) with Flange - KSL-1500X-H

SKU: ksl-1500x-mh

Price: RFQ

Specifications

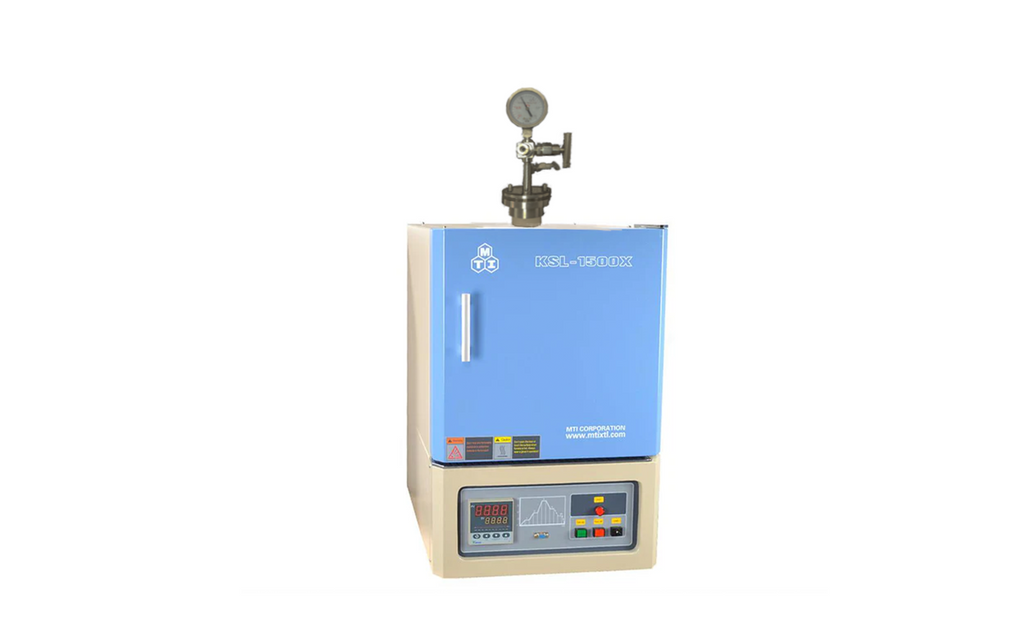

 KSL-1500X-M-H is a hybrid muffle/tube Furnace with a working temperature up to 1500°C. It combines a 6"x 6" x 6" box furnace with a 2" mullite tube as a cost-effective solution for materials processing. SPECIFICATIONS: Structure High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency. Doble layer steel case with forced-air cooling to ensure lower safer surface temperature. One 2"Dia. The hole is opened from the top of the chamber with a thermal insulation block When used as a tube furnace, a 2" mullite tube with a flange will be inserted into the heating chamber. Power AC 208V-240V single phase, 50/60 Hz, 20 A 4.0 KW A power cable is included but without a plug . Heating Chamber Muffle furnace KSL-1500X Dimensions: 150mm(D) x 155mm(W) x 150mm(H), (6"x6"x6"), 3.6 L Working Temperature: 300-1500 °C continuously. (1300°C if used in a vacuum as a tube furnace ) Heating rate: <20°C/ min. Temperature Stability: +/- 1.0 ° C S-type thermocouple with Ceramic Sheath Processing Tube One mullite tube with a pair of flanges with gas inlet, outlet, needle valves, and a pressure gauge. Working temperature <1500°C at ambient pressure <1300°C under vacuum One alumina foam block for thermal insulation Temperature Controller A digital temperature controller Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmable for ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy RS485 communication port Temperature controller (optional) MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit. Eurotherm temperature controller with +/- 0.1oC accuracy is available at the extra cost

Structure
  • High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
  • Doble layer steel case with forced-air cooling to ensure lower safer surface temperature.
  • One 2"Dia. The hole is opened from the top of the chamber with a thermal insulation block
  • When used as a tube furnace, a 2" mullite tube with a flange will be inserted into the heating chamber.
Power
  • AC 208V-240V single phase, 50/60 Hz, 20 A
  • 4.0 KW
  • A power cable is included but without a plug.
Heating Chamber
  • Muffle furnace KSL-1500X
  • Dimensions: 150mm(D) x 155mm(W) x 150mm(H), (6"x6"x6"), 3.6 L
  • Working Temperature: 300-1500 °C continuously. (1300°C if used in a vacuum as a tube furnace )
  • Heating rate: <20°C/ min.
  • Temperature Stability: +/- 1.0 °C
  • S-type thermocouple with Ceramic Sheath

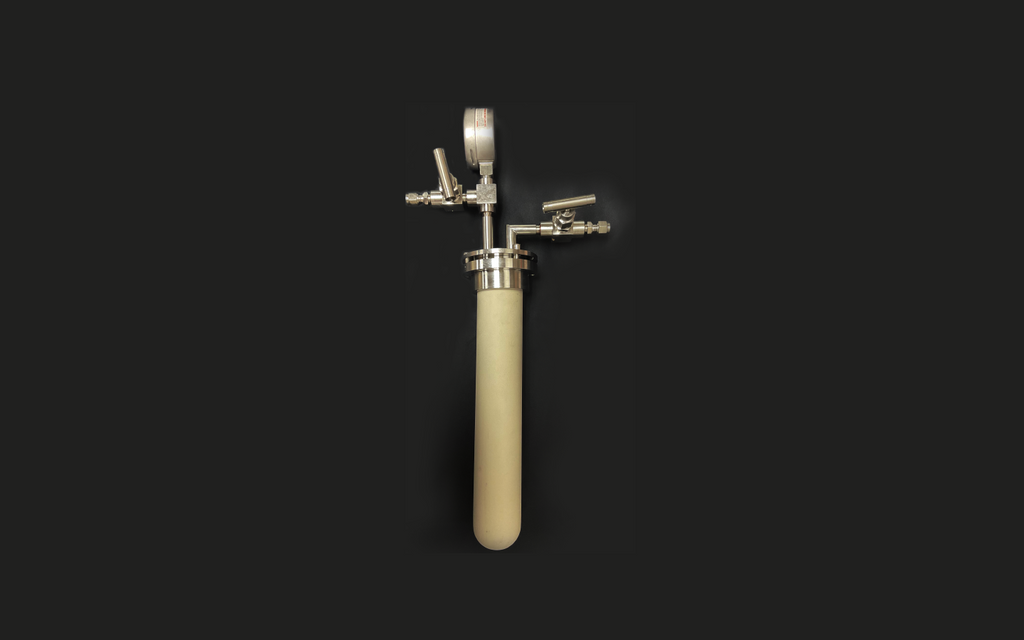

Processing Tube
  • One mullite tube with a pair of flanges with gas inlet, outlet, needle valves, and a pressure gauge.
  • Working temperature
    • <1500°C at ambient pressure
    • <1300°C under vacuum
  • One alumina foam block for thermal insulation
Temperature Controller
  • A digital temperature controller
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmable for ramping, cooling, and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • RS485 communication port
Temperature controller (optional)

  • MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.
  • Eurotherm temperature controller with +/- 0.1oC accuracy is available at the extra cost
